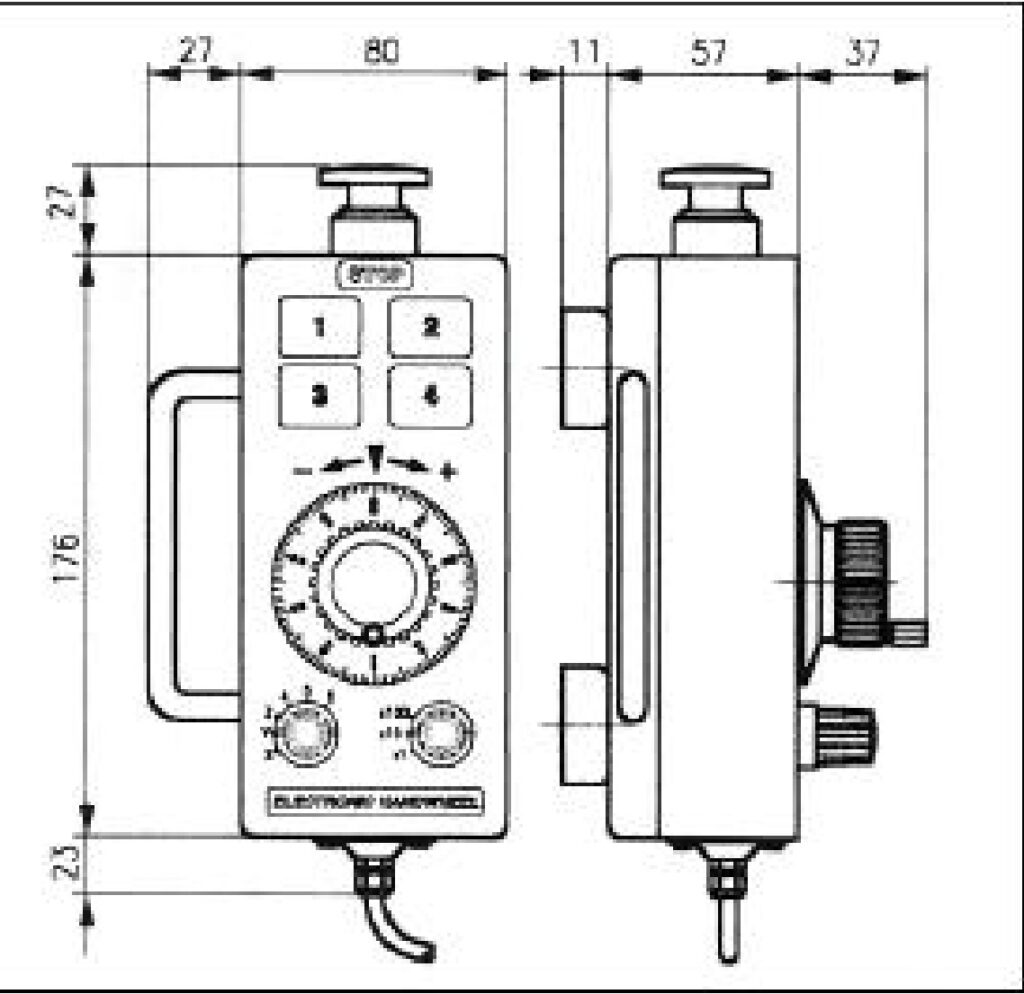

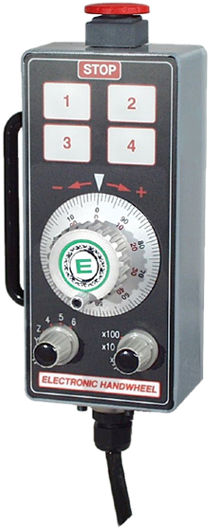

Portable Electronic Steering Wheel VP51
- Manufacturer: ELCIS Encoder
- Category: Encoder, SENSORS, Electronic Steering Wheels
Portable electronic handwheel, without internal electronic counter, for connection to the CNC via a 3m coiled cable. It has switches to select the resolution and axis of the CNC and four pushbuttons to remotely control CNC functions.
The VP51 model features a fully metal, painted aluminum housing with good resistance to external agents. Its anodized aluminum control knob has 100 divisions, and the steps (100 PPR) are either locked at each division or, upon request, equipped with a clutch (option F). Two electronic switches select the resolution and the CNC axis, four pushbuttons on the front panel remotely control four CNC functions, and a mushroom-shaped pushbutton allows for immediate machine tool stop.
It is offered with NPN, PNP, push-pull electronic output stages and 26LS31 and 88C30 drivers, and with 5 V ±5 %, 8–24 V, 18–28 V, and 8–15 V power supplies. The 3 m coiled cable has a connector at the end (VD4, VM9, VM5, or VL). Optional features include: a magnetic coupler for secure attachment to the machine tool, one or two enable pushbuttons (options J and W), and a right- or left-hand handle (option D: right-hand handle). Available in guemisa.es.
- Four front pushbuttons to remotely control four CNC functions.
- Two electronic switches to select the resolution and axis of the CNC.
- Mushroom-type push button to immediately stop the machine tool.
- Completely metallic painted aluminum casing, with good resistance to external agents.
- Service life in rotation ≥ 1,000,000 ha 200 rpm and IP64 protection on the shaft side.
Technical Frequently Asked Questions
What control and command elements does the VP51 steering wheel incorporate?
It incorporates a control with 100 divisions per revolution, two electronic switches to select the resolution and axis of the CNC, four front pushbuttons to remotely control CNC functions and a mushroom-type pushbutton to immediately stop the machine tool.
What additional mounting options and pushbuttons are available for the VP51?
On request, it can be supplied with a magnetic coupler (option M) for firm attachment to the machine tool, a right or left clamping handle (option D is the right handle) and one or two enable pushbuttons (options J and W).
What output cables and connectors does the VP51 use?
It has a 3m spiral cable with a connector at the end to choose between VD4 (DE25P), VM9 (SRCN6A21-16), VM5 (PT06A16-26S) or VL (MS 3101A18-1P), with IP65 protection at the encoder output.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Painted aluminum |
| Weight | 1390 g |
| Electric | |
| Resolution | 100 divisions/lap |
| Max. consumption. | 120 mA standard · 180 mA line driver |
| Impulses per lap | 100 |
| Protection and environment | |
| axle-side protection | IP64 |
| Encoder output protection | IP65 |
| Rotational life at 200 rpm | ≥ 1,000,000 h |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (Customizable upon request: operating temperature) |
| Storage Temp. | -30 … +85 °C |
| Other features | |
| Remote control and graduated disc | Anodized aluminum |
| Display | 100 divisions in the control flange |
| Connection | 3m spiral cable with connector at the end |
