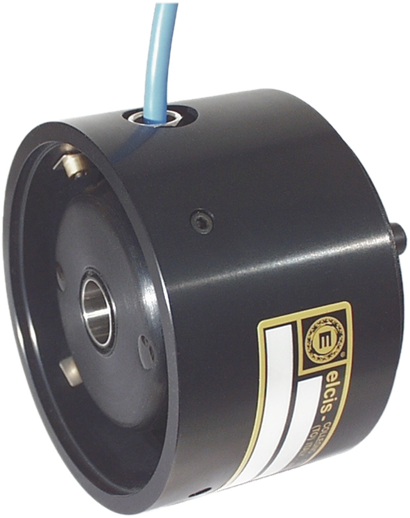

Incremental Encoder for Motors I/98
Hollow shaft Ø16 mm | Interchangeable with Ø98 mm tachometers | 1 to 2540 pulses/revolution | NPN, PNP, push-pull, line driver | Power supply 5–30 V | IP64 shaft (IP66 sealed) | Self-adjusting coupling
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS
El ELCIS 98 (I/98) es un encoder incremental de eje hueco Ø16 mm, con acoplamiento interno autoajustable y de 1 a 2540 impulsos por vuelta. Es mecánicamente intercambiable con tacómetros Ø98 (tipo MAGNETIC BRB, ROTEX SDB, etc.) y se pueden usar varios encoders sobre el mismo eje.

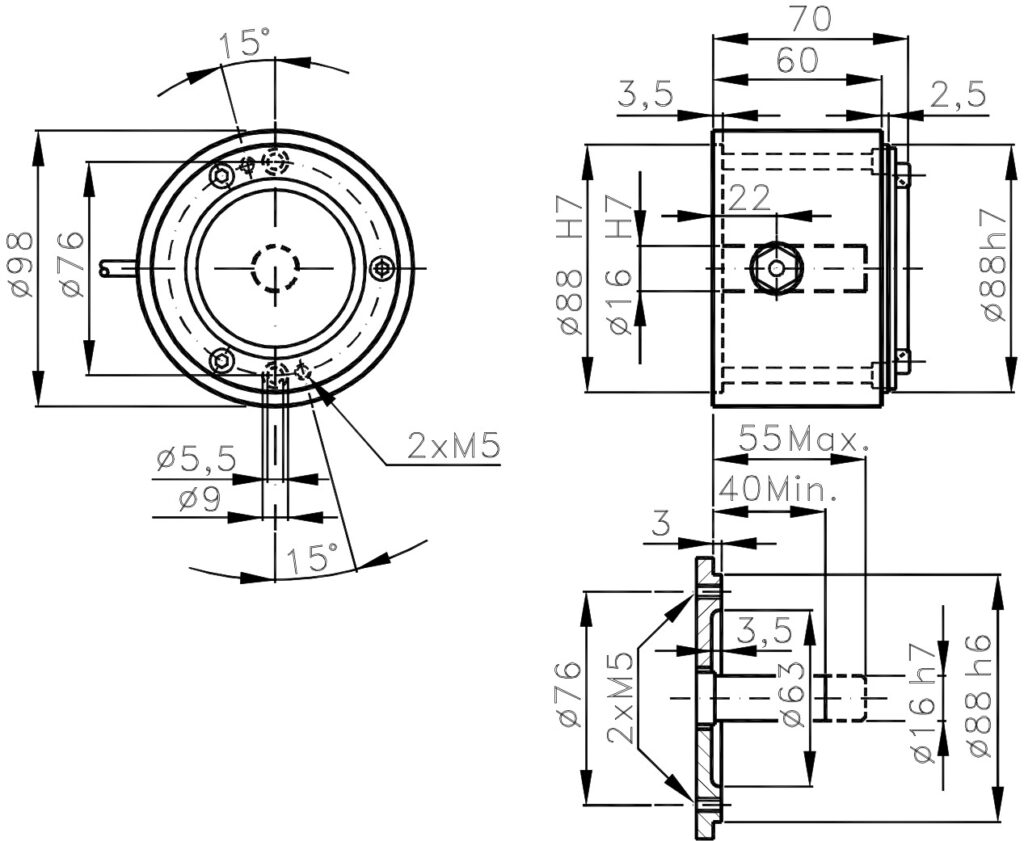

The maximum coupling compensation is ±0.2 mm axial, ±0.1 mm radial, and ±2° angular. The hollow shaft is Ø16 mm in stainless steel, with an anodized aluminum base and cap, and weighs 600 g.
Da de 1 a 2540 impulsos por vuelta con frecuencia máx. de 100 kHz (300 kHz opcional) y alimentación de 5 a 30 V según versión. En el lado del eje es IP64 (IP66 con rodamiento sellado, IP53 con rodamiento de bajo par, que llega a 8000 rpm continuas); en el lado de salida, IP65.
- Interchangeable with Ø98 tachometers: type MAGNETIC BRB, ROTEX SDB, etc.
- Multiple encoders on the same axisELCIS indicates that it is possible to use multiple encoders on the same axis.
- Self-adjusting internal coupling: max. axial compensation ±0.2 mm, radial ±0.1 mm, angular ±2°.
- Bearings to choose from: standard (IP64, 6000 rpm), sealed (IP66, 3000 rpm) or low torque (IP53, 8000 rpm).
Technical Frequently Asked Questions
What is the I/98 encoder interchangeable with?
It is mechanically interchangeable with Ø98 tachometers, such as MAGNETIC BRB, ROTEX SDB, etc.
Can more than one encoder be mounted on the same shaft?
Yes: ELCIS indicates that multiple encoders can be used on the same axis.
What range of pulses per revolution does it provide?
From 1 to 2540 pulses per revolution, with a maximum frequency of 100 kHz (300 kHz with the W option).
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 600 g |
| Axis | Eje hueco Ø 16 mm en acero inoxidable (personalizable bajo pedido) |
| max. axial/radial load. | 8 kg |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Exit-side protection | According to connection: IP65 (cable and connector at the end of the cable) |
| Feeding | 5÷30 Vcc according to version |
| Max. consumption. | 120 mA estándar / 180 mA line driver (personalizable bajo pedido) |
| Impulses per lap | 1 to 2540 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP64 standard / IP66 sealed / IP53 low torque |
| max. continuous RPM | 6000 rpm standard / 3000 rpm sealed / 8000 rpm low torque (intermittent: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Working temperature | 0 ÷ +70 °C (customizable upon request) |
| Storage temperature | -30 ÷ +85 °C |
| Reference | Configuration |
|---|---|
| I/98-1000-5-BZ-N-CV-RI9810005BZNCVR | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial (1 m) · salida radial |
| I/98-1024-5-BZ-N-CV-RI9810245BZNCVR | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial (1 m) · salida radial |
| I/98-500-5-BZ-N-CV-RI985005BZNCVR | 500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial (1 m) · salida radial |
| I/98-100-5-BZ-N-CV-RI981005BZNCVR | 100 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial (1 m) · salida radial |
| I/98-2500-5-BZ-N-CV-RI9825005BZNCVR | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial (1 m) · salida radial |
| I/98-2000-5-BZ-N-CV-RI9820005BZNCVR | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial (1 m) · salida radial |
| I/98-1000-824-BZ-B-CV-RI981000824BZBCVR | 1000 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-1024-824-BZ-B-CV-RI981024824BZBCVR | 1024 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-500-824-BZ-B-CV-RI98500824BZBCVR | 500 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-100-824-BZ-B-CV-RI98100824BZBCVR | 100 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2500-824-BZ-B-CV-RI982500824BZBCVR | 2500 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2000-824-BZ-B-CV-RI982000824BZBCVR | 2000 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-1000-1828-BZ-B-CV-RI9810001828BZBCVR | 1000 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-1024-1828-BZ-B-CV-RI9810241828BZBCVR | 1024 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-500-1828-BZ-B-CV-RI985001828BZBCVR | 500 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-100-1828-BZ-B-CV-RI981001828BZBCVR | 100 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2500-1828-BZ-B-CV-RI9825001828BZBCVR | 2500 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2000-1828-BZ-B-CV-RI9820001828BZBCVR | 2000 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-1000-1030-BZ-B-CV-RI9810001030BZBCVR | 1000 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-1024-1030-BZ-B-CV-RI9810241030BZBCVR | 1024 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-500-1030-BZ-B-CV-RI985001030BZBCVR | 500 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-100-1030-BZ-B-CV-RI981001030BZBCVR | 100 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2500-1030-BZ-B-CV-RI9825001030BZBCVR | 2500 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2000-1030-BZ-B-CV-RI9820001030BZBCVR | 2000 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-1000-5-BZ-B-CV-RI9810005BZBCVR | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-1024-5-BZ-B-CV-RI9810245BZBCVR | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-500-5-BZ-B-CV-RI985005BZBCVR | 500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-100-5-BZ-B-CV-RI981005BZBCVR | 100 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2500-5-BZ-B-CV-RI9825005BZBCVR | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| I/98-2000-5-BZ-B-CV-RI9820005BZBCVR | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable radial (1 m) · salida radial |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
