I/44Q Miniature Incremental Encoder
44 mm square flange | Shaft Ø6 h7, centered Ø20 h7 | 1–2540 imp/rev | NPN, PNP, push-pull, driver, TTL | 5–30 V | IP66 shaft (IP53 under torque) | 60 kHz (100 kHz optional)
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Miniature Incremental Encoder, SENSORS

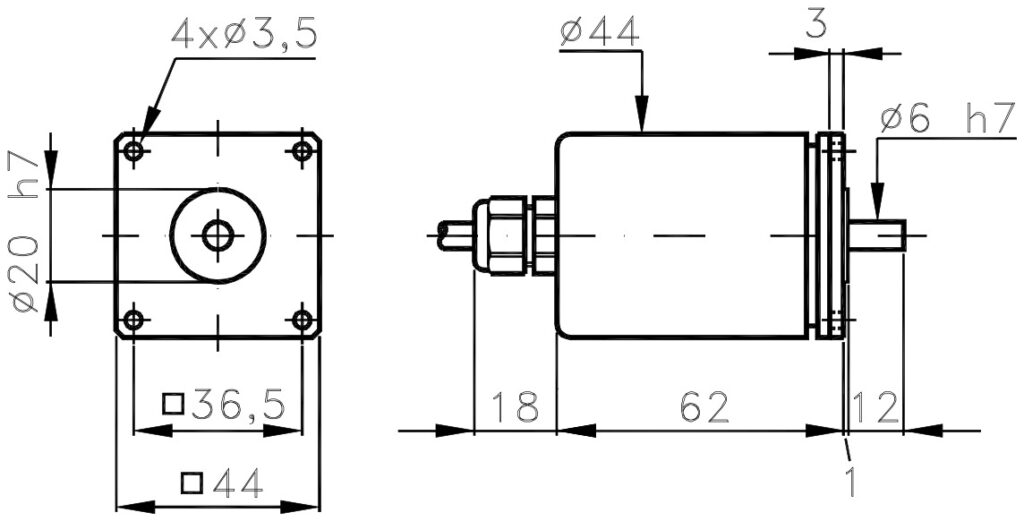

El ELCIS 44Q (I/44Q) es un encoder incremental miniatura metálico con brida frontal cuadrada de 44 mm de lado y cuatro taladros de fijación de Ø3,5 mm a 36,5 mm entre centros.
With an anodized aluminum base and cover, this model weighs 230 g, has a Ø20 h7 front centering protrusion and a Ø6 h7 solid stainless steel shaft, with standard IP66 protection on the shaft side.
Suministra de 1 a 2540 impulsos por vuelta con frecuencia estándar de 60 kHz (opción de 100 kHz), permitiendo su conexión mediante cable axial o radial (CV) y conector en extremo de cable, siendo compatible con electrónicas NPN, PNP, Push-pull, TTL y Line Driver 26LS31 o 88C30.
- 44mm Square Front Flange: fixing by means of four Ø3.5 mm drills at 36.5 mm between centers.
- IP66 standard protection: on the shaft side (IP53 with low torque bearings); anodized aluminum base and cover.
- Impulses per lap: from 1 to 2540, with a frequency of 60 kHz (100 kHz optional).
- Stainless steel shaft: solid shaft of Ø6 h7 and front centering protrusion of Ø20 h7.
Technical Frequently Asked Questions
What are the flange and mounting dimensions of the ELCIS 44Q encoder?
It has a 44 mm square flange and four Ø3.5 mm holes spaced 36.5 mm apart.
What level of protection does it offer against liquids and industrial environments?
It offers an IP66 rating on the shaft side in its standard version, and up to IP65 on the outlet side depending on the connector selected.
What are the available pulse resolutions for the 44Q model?
From 1 to 2540 pulses per revolution, in the unidirectional (M), bidirectional (B), bidirectional with zero (BZ) and unidirectional with zero (MZ) versions.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Metallic with 44 mm square flange |
| Weight | 230 g |
| Axis | Ø6 h7 stainless steel (customizable upon request) |
| max radial/axial load. | 1,5 kg |
| Electric | |
| Exit-side protection | Depending on connection: IP00 or IP65 (see technical sheet) |
| Feeding | 5÷30 V (see technical specifications) |
| Max. consumption. | 120 mA Standard · 180 mA line driver (customizable upon request) |
| Impulses per lap | 1 to 2540 |
| Max frequency. | 60 kHz (100 option) |
| Protection and environment | |
| axle-side protection | IP66 standard · IP53 low torque (B) |
| max. continuous RPM | 3000 standard · 12000 low torque (intermittent: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Storage Temp. | -30 … +85 °C |
| Reference | Configuration |
|---|---|
| I/44Q-1000-5-BZ-N-CVI44Q10005BZNCV | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Driver 26LS31 · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1024-5-BZ-N-CVI44Q10245BZNCV | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Driver 26LS31 · Cable de 1 m · axial / radial · salida axial |
| I/44Q-500-5-BZ-N-CVI44Q5005BZNCV | 500 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Driver 26LS31 · Cable de 1 m · axial / radial · salida axial |
| I/44Q-100-5-BZ-N-CVI44Q1005BZNCV | 100 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Driver 26LS31 · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2500-5-BZ-N-CVI44Q25005BZNCV | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Driver 26LS31 · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2000-5-BZ-N-CVI44Q20005BZNCV | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Driver 26LS31 · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1000-824-BZ-B-CVI44Q1000824BZBCV | 1000 impulsos/vuelta · 8 ÷ 24 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1024-824-BZ-B-CVI44Q1024824BZBCV | 1024 impulsos/vuelta · 8 ÷ 24 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-500-824-BZ-B-CVI44Q500824BZBCV | 500 impulsos/vuelta · 8 ÷ 24 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-100-824-BZ-B-CVI44Q100824BZBCV | 100 impulsos/vuelta · 8 ÷ 24 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2500-824-BZ-B-CVI44Q2500824BZBCV | 2500 impulsos/vuelta · 8 ÷ 24 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2000-824-BZ-B-CVI44Q2000824BZBCV | 2000 impulsos/vuelta · 8 ÷ 24 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1000-1828-BZ-B-CVI44Q10001828BZBCV | 1000 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1024-1828-BZ-B-CVI44Q10241828BZBCV | 1024 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-500-1828-BZ-B-CVI44Q5001828BZBCV | 500 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-100-1828-BZ-B-CVI44Q1001828BZBCV | 100 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2500-1828-BZ-B-CVI44Q25001828BZBCV | 2500 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2000-1828-BZ-B-CVI44Q20001828BZBCV | 2000 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1000-1030-BZ-B-CVI44Q10001030BZBCV | 1000 impulsos/vuelta · 10 ÷ 30 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1024-1030-BZ-B-CVI44Q10241030BZBCV | 1024 impulsos/vuelta · 10 ÷ 30 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-500-1030-BZ-B-CVI44Q5001030BZBCV | 500 impulsos/vuelta · 10 ÷ 30 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-100-1030-BZ-B-CVI44Q1001030BZBCV | 100 impulsos/vuelta · 10 ÷ 30 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2500-1030-BZ-B-CVI44Q25001030BZBCV | 2500 impulsos/vuelta · 10 ÷ 30 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2000-1030-BZ-B-CVI44Q20001030BZBCV | 2000 impulsos/vuelta · 10 ÷ 30 V · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1000-5-BZ-B-CVI44Q10005BZBCV | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-1024-5-BZ-B-CVI44Q10245BZBCV | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-500-5-BZ-B-CVI44Q5005BZBCV | 500 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-100-5-BZ-B-CVI44Q1005BZBCV | 100 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2500-5-BZ-B-CVI44Q25005BZBCV | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| I/44Q-2000-5-BZ-B-CVI44Q20005BZBCV | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional con cero · Push-pull PRO · Cable de 1 m · axial / radial · salida axial |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
