Special Incremental Encoder I/68BL
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Special Incremental Encoder, SENSORS

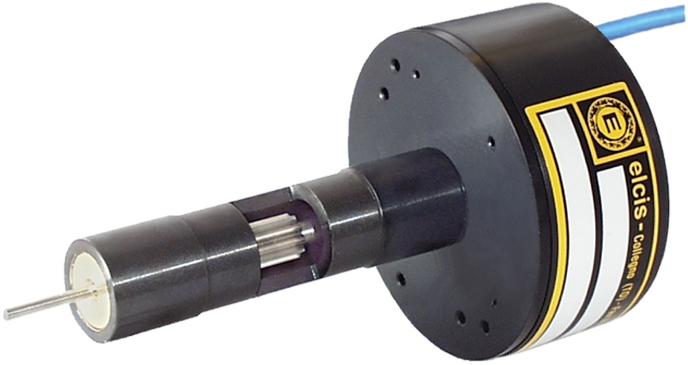

El ELCIS 68BL (I/68BL) es un encoder incremental de Ø68 mm hecho a medida para básculas, de 1 a 1250 impulsos por vuelta. Eje y rodamientos son los de la báscula y se montan en el encoder, lo que elimina las dificultades de alineación entre ambos ejes. El eje lo suministra el cliente. La base y la tapa son de aluminio anodizado y el peso es de 400 g. El grado de protección es IP00 en el lado del eje (estándar) y, en el lado de la salida, IP65 con cable, de IP63 a IP67 con conector e IP00 con caja de bornes. Ofrece frecuencia máx. de 60 kHz y 6000 rpm continuas (intermitente +30 %), con electrónicas NPN, PNP, push-pull, TTL 7404 y drivers 26LS31 y 88C30 (este, hasta 15 Vcc), y alimentación de 5 a 30 Vcc según código.
The base and cover are made of anodized aluminum; the body measures Ø68 mm and weighs 400 g. The shaft is supplied by the customer. The protection rating is IP00 on the shaft side (standard) and, on the output side, depends on the connection: IP65 with cable, IP63 to IP67 with connector, and IP00 with terminal box.
Ofrece de 1 a 1250 impulsos por vuelta, frecuencia máx. de 60 kHz y 6000 rpm continuas (intermitente +30 %), con electrónicas NPN, PNP, push-pull, TTL 7404 y drivers 26LS31 y 88C30 (este, hasta 15 Vcc), y alimentación de 5 a 30 Vcc según código.
- Scale axle and bearingsThey are mounted on the encoder and eliminate the alignment difficulties between the scale shaft and the encoder shaft.
- Custom-made for scales: ELCIS defines it as a custom-made encoder for weighing machines.
- Anodized aluminum base and lid: body of Ø68 mm and 400 g in weight.
- Various output electronics: NPN, PNP, push-pull, TTL 7404 and 26LS31 and 88C30 drivers.
Technical Frequently Asked Questions
Why doesn't the I/68BL have its own axle?
Because the shaft and bearings are from the scale and are mounted on the encoder; the shaft is supplied by the customer.
What level of protection does the I/68BL have?
IP00 on the shaft side (standard). On the output side it depends on the connection: IP65 with CV cable, from IP63 to IP67 with connector, IP65 with connector at cable end and IP00 with terminal box.
What resolution and frequency does it offer?
From 1 to 1250 pulses per revolution, with a maximum frequency of 60 kHz.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |

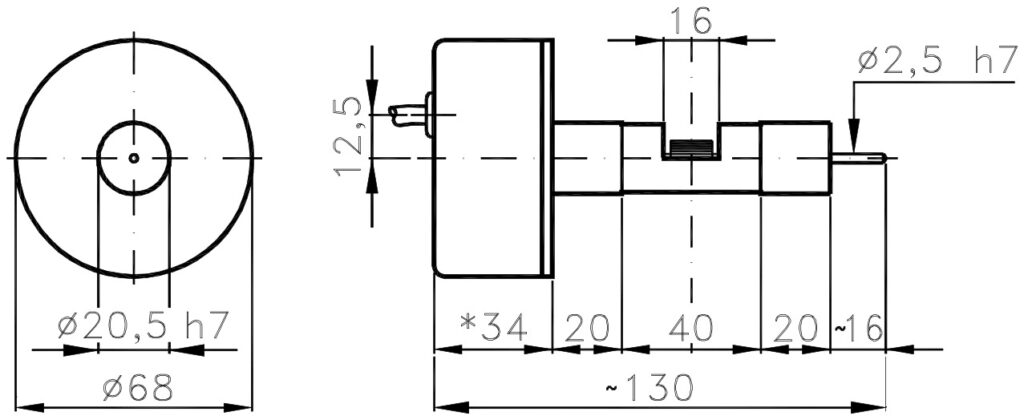

| Housing | Anodized aluminum (base and lid), Ø68 mm |
| Weight | 400 g |
| Axis | Supplied by the customer (customizable upon request) |
| Maximum load on the axle | — |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Feeding | 5 to 30 Vcc according to code |
| Impulses per lap | 1 to 1250 imp/v |
| Maximum frequency | 60 kHz |
| Maximum consumption | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Protection and environment | |
| IP protection rating | IP00 on the shaft side (standard); outlet side according to connection: IP63 to IP67, terminal box IP00 (IP ratings according to CEI EN 60529, EN 60529, IEC 529) |
| Maximum continuous speed | 6000 rpm (intermittent +30 %) (maximum intermittent speed: +30 % of the continuous speed) |
| Impact resistance | 50 G (11 ms) |
| Vibration resistance | 12 G (10 to 2000 Hz) |
| Operating temperature | 0 °C to +70 °C (customizable upon request) |
| Storage temperature | -30 °C at +85 °C |
