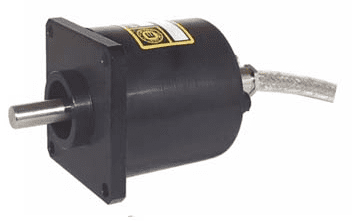

Robust Incremental Encoder I/63
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Robust Incremental Encoder, SENSORS
Encoder incremental para usos industriales medio-severos.
El I/63 tiene carcasa metálica Ø63 mm con brida de montaje cuadrada. Admite electrónica NPN, PNP, push-pull, drivers 26LS31 y 88C30, TTL, discriminador y sinusoidal 1 Vpp, en versiones monodireccional, bidireccional y con cero, con frecuencia máxima de 100 kHz (300 kHz opcional).
Anodized aluminum base, VALOX 420 cover, and Ø9.52 stainless steel shaft supporting 10 kg of radial/axial load. Operates from 0 to +70 °C with IP65 protection on the shaft side (IP66 sealed, IP53 under torque) and connects via cable, connector, cable end connector, or terminal box. Available in guemisa.es.
- Resolution of 1 to 25000 pulses per lap and frequency up to 100 kHz (300 kHz optional).
- Nutrition 5 to 30 V according to the version.
- 15 electronic Output: NPN, PNP, push-pull, 26LS31 and 88C30 drivers, TTL, discriminator and sinusoidal 1 Vpp.
- Until 12000 rpm continuous with low torque bearings and 6000 rpm in standard version.
- MTTFd alto según UNI EN ISO 13849-1.
Technical Frequently Asked Questions
What signal versions does the I/63 offer?
Unidirectional (M), bidirectional (B), bidirectional + zero (BZ) and unidirectional + zero (MZ).
What supply voltages does it support?
5 V ±5 %, 8–24 V, 18–28 V, 8–15 V, 12 V ±5 %, 24 V ±5 %, 12–30/12 V, 8–24/5 V, 10–30 V, 18–28/5 V and 15–30/15 V. With 88C30 driver, maximum 15 Vdc.
What axle protection options are available?
IP65 in standard version, IP66 with sealed bearing (option Z, 3000 rpm continuous) and IP53 with low torque bearings (option B, 12000 rpm continuous).

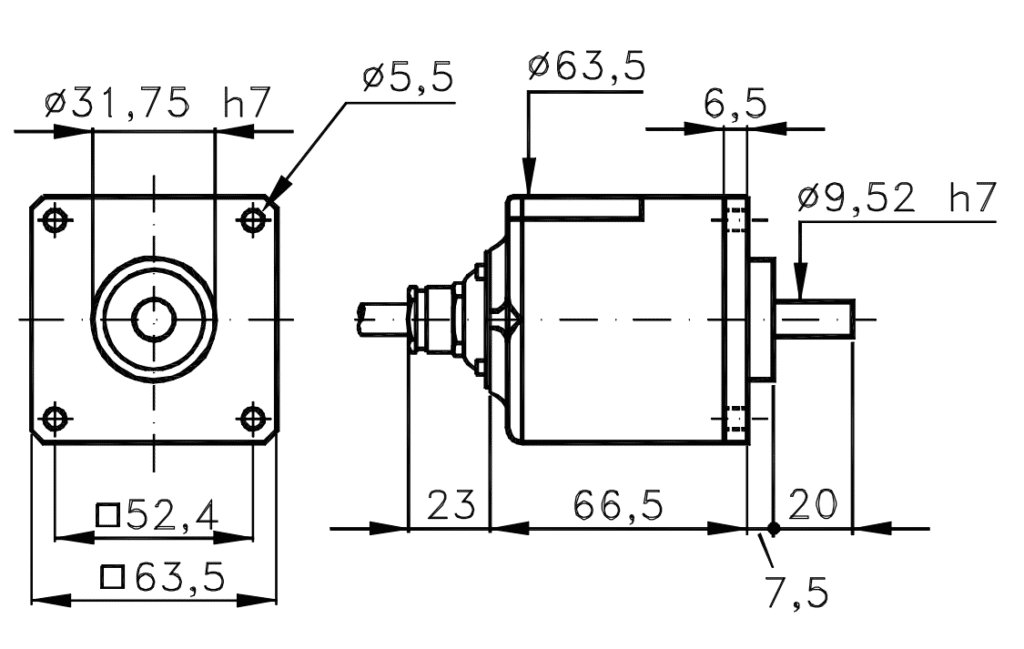

Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Metálica Ø63 mm, brida cuadrada |
| Weight | 570 g |
| Axis | Ø9.52 h7 stainless steel (customizable upon request) |
| max radial/axial load. | 10 kg |
| Electric | |
| Exit-side protection | According to connection: IP00 to IP67 |
| Feeding | 5–30 V according to version (see technical specifications) |
| Max. consumption. | 120 mA Standard · 180 mA line driver (customizable upon request) |
| Impulses per lap | 1 to 25000 (inglés) · 90000 (italiano) |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP65 standard • IP66 sealed (Z) • IP53 low torque (B) |
| max. continuous RPM | 6000 standard · 3000 sealed · 12000 low torque (intermittent: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Storage Temp. | -30 … +85 °C |
