Portable Electronic Steering Wheel (VEP)
- Manufacturer: ELCIS Encoder
- Category: Encoder, SENSORS, Electronic Steering Wheels
Portable electronic handwheel with internal electronic counter, made to connect to the CNC via a 3-meter spiral cable.

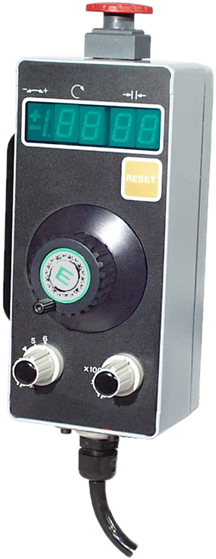

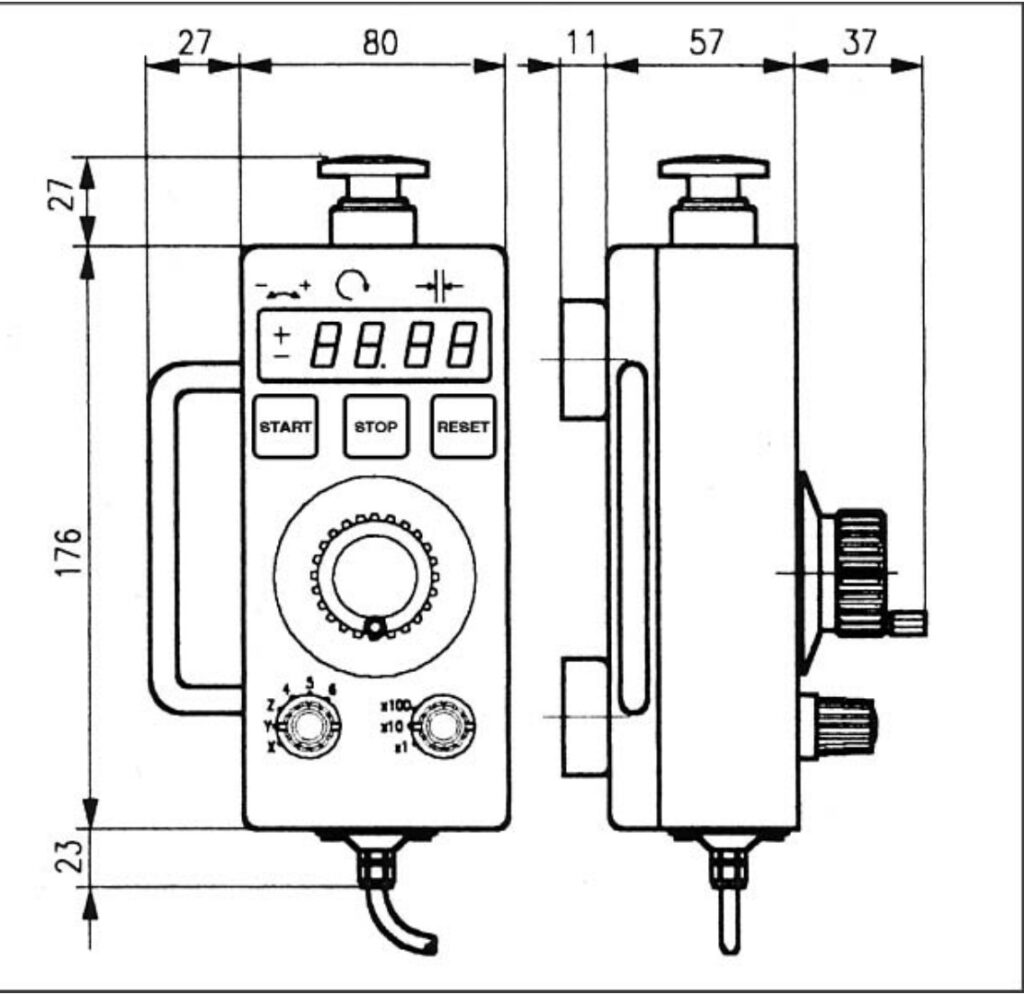

The VEP has a painted aluminum housing and a handwheel with an anodized aluminum graduated dial. The handwheel's steps (100 per revolution) are locked at each division and displayed on the 4-digit signed screen, which can be reset to zero in any position using a reset button. Two electronic switches select the CNC resolution and axis, and a mushroom-shaped button allows the machine to be stopped in case of danger.
It features NPN, PNP, and push-pull output stages, as well as 26LS31 and 88C30 drivers, with power supplies of 5 V ±5 %, 8–24 V, 18–28 V, and 8–15 V, and coiled cable end connectors VD4, VM9, VM5, and VL. A side enable push button, magnetic coupler, and right- or left-hand handle are available upon request. guemisa.es.
- Digital counter with 4-digit signed display (-99.99 to +99.99) and reset button in any position.
- Casing in painted aluminum and anodized aluminum handle, with good resistance to external agents.
- CNC connection via 3m spiral cable with connector at the end (VD4, VM9, VM5 or VL).
- Mushroom push button to stop the machine in case of danger and side enable button available upon request.
- Life in rotation ≥ 1,000,000 hours a 200 rpm and protection IP64 on the axle side.
Technical Frequently Asked Questions
What features does the VEP portable steering wheel include?
It includes an internal counter with a 4-digit display and sign, a reset button, two electronic switches for selecting the CNC resolution and axis, and a mushroom-head button to stop the machine in case of danger. It connects to the CNC via a 3 m coiled cable.
What additional options does it support?
On request it supports clutch (F), custom center logo (E), A, B and zero phase reversal (K), right (J) or left (W) side enable button, magnetic coupler to fix the flywheel to the machine (M), right (D) or left handle, and custom options (X).
What electronic outputs and cable connectors does it use?
It accepts NPN, PNP, push-pull stages and 26LS31 or 88C30 drivers. The connection to the CNC is made with connectors at the end of spiral cable VD4 (DE25P), VM9 (SRCN6A21-16), VM5 (PT06A16-26S) or VL (MS 3101A18-1P), with IP65 at the handwheel output.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Painted aluminum |
| Weight | 1440 g |
| Electric | |
| Screen resolution | -99.99 to +99.99 |
| Exit-side protection | IP65 (steering wheel exit) |
| Max. consumption. | 200 mA standard · 250 mA line driver |
| Impulses per lap | 100 standard |
| Protection and environment | |
| axle-side protection | IP64 |
| Rotational life at 200 rpm | ≥ 1,000,000 h |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (Customizable upon request: operating temperature) |
| Storage Temp. | -30 … +85 °C |
| Other features | |
| Remote control and graduated disc | Anodized aluminum |
| Screen | 4 digits (7 segments) + sign |
| Connection | 3m spiral cable with connector at the end |
