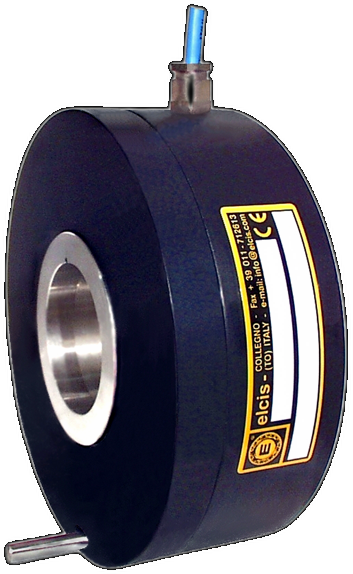

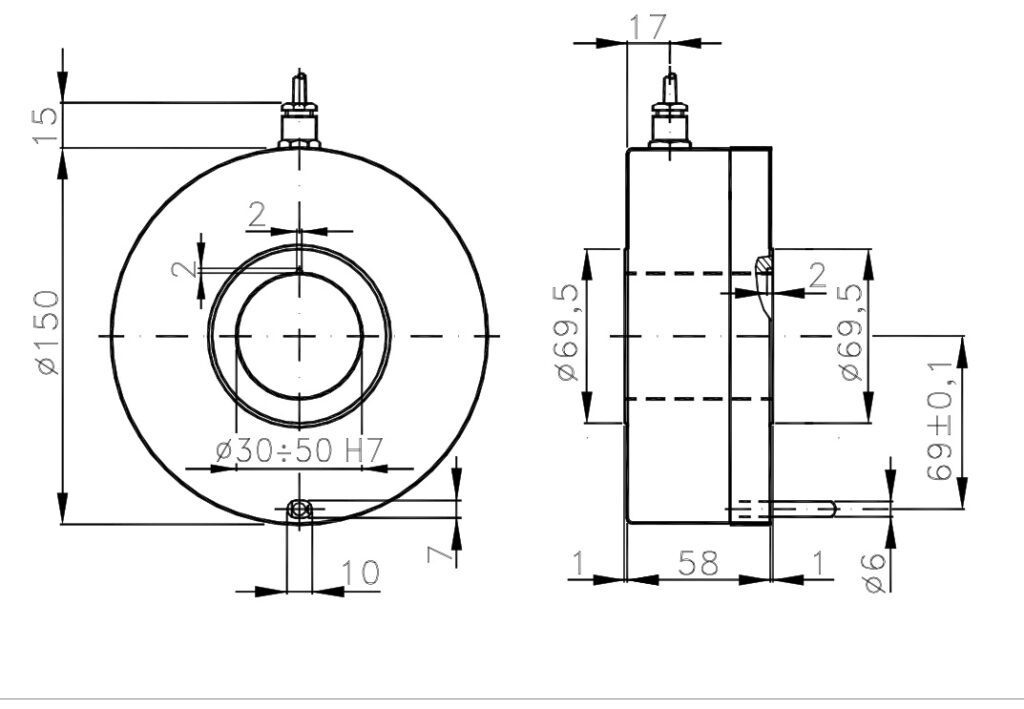

High Resolution Incremental Encoder I/150C
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, High Resolution Incremental Encoder, SENSORS
The I/150C High Resolution Incremental Encoder addresses the need for precise measurement in medium- to heavy-duty industrial environments where vibrations and impacts are frequent. Its metal construction ensures mechanical stability under demanding operating conditions.
The technical solution integrates an anodized aluminum housing with a recessed tangential joint, allowing for axial and angular compensation. It features a long-life LED source and a Push-Pull PRO output for robust integration into control systems.
Manufactured according to UNI EN ISO 9001:2008 standards with CE marking and a two-year warranty, it withstands temperatures from 0 to 70°C and vibrations of 12 G. Available in guemisa.es.
- Anodized metal housing for medium-heavy industrial environments.
- Tangential joint embedded with radial and angular axial compensation.
- LED light source with a lifespan exceeding 100,000 hours.
- Electrical resistance to vibrations up to 12 G across a wide frequency range.
Technical Frequently Asked Questions
How does the I/150C differ from the I/E6 model?
The I/150C stands out for its Ø30–50mm shaft and all-metal housing, designed for medium-to-heavy-duty applications. The I/E6 typically features more compact dimensions and resolution tailored to specific applications, while the I/150C supports radial loads up to 15 kg.
What alignment precautions does the I/150C shaft require?
It is crucial to respect the maximum compensation joint tolerances: axial ±0.2 mm, radial ±0.05 mm, and angular ±2°. Incorrect alignment can compromise bearing life and pulse-per-revolution accuracy.
What connectors and output options are available for the I/150C?
The model offers NPN, Open Collector PNP, Push-Pull PRO, and Line Driver configurations. It also supports cable end connectors such as CH5, CH6, or terminal blocks, with unidirectional, bidirectional, or zero-output options.
Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental |
| Maximum Resolution | 90000 PPR |
| Axis | Stainless Steel Ø30÷50mm |
| Maximum Load | 15 kg (Radial/Axial) |
| Continuous Speed | 500 RPM |
| Starting Torque | 1500 gcm |
| Bearing Life | 1.5 x 10^9 Revolutions |
| Impact Resistance | 50G x 11ms |
| Vibration Resistance | 12 G (10÷2000 Hz) |
| Operating Temp. | 0 ÷ 70°C |
| Maximum Frequency | 100 kHz |
| Standard Consumption | 120 mA |
| Light Source | LED (>=100000h) |
| IP protection | IP65 (Standard) |
| Available Exit | NPN/PNP/Push-Pull |
