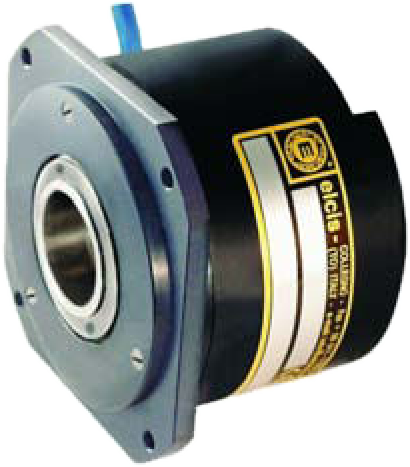

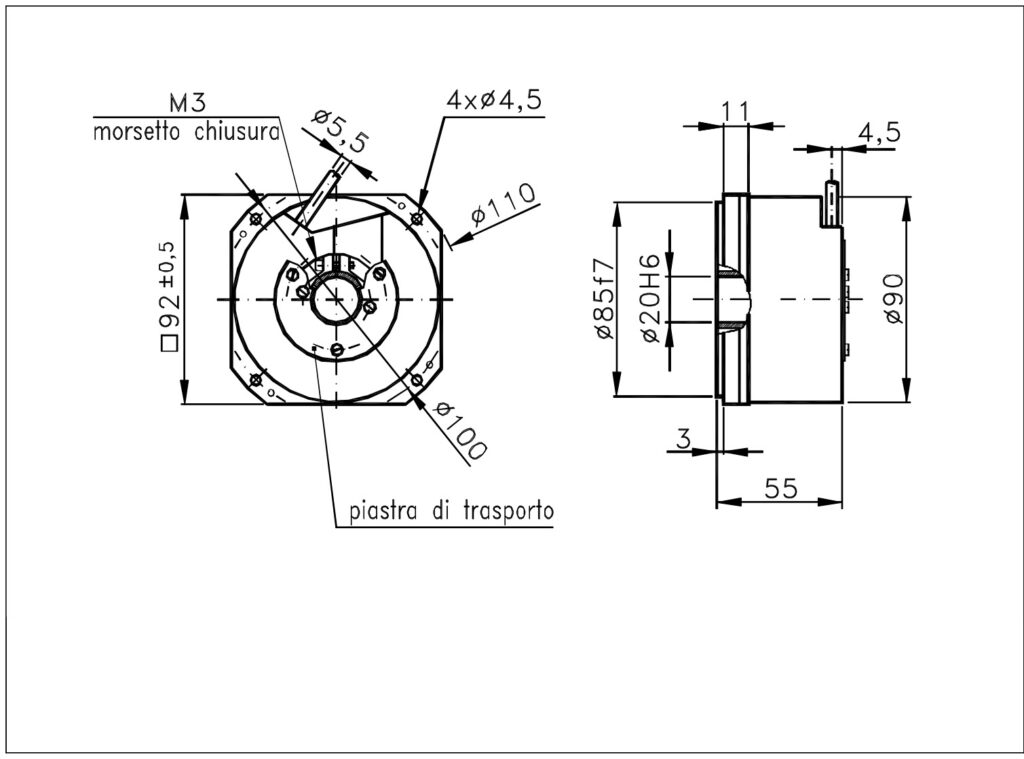

High Resolution Incremental Encoder I/92CD
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, High Resolution Incremental Encoder, SENSORS
The I/92CD High Resolution Incremental Encoder solves the accuracy challenges in split tables and industrial machinery, where mechanical stability is critical to avoid positioning errors accumulated during the operating cycle.
This I/92CD High Resolution Incremental Encoder incorporates a special high-precision tangential joint that allows axial compensation of ±0.01 mm and radial compensation of ±0.02 mm, ensuring signal integrity even under high dynamic loads.
Constructed with a stainless steel base and shaft, it withstands operating temperatures up to 70°C and vibration resistance of 10 G. Ideal for demanding environments where mechanical reliability is paramount, it is available in guemisa.es.
- Stainless steel base and shaft for durability in harsh environments.
- High-precision tangential joint for axial and radial compensation.
- Guaranteed bearing life of 1.5 x 10^9 turns.
- Vibration resistance of 10 G between 55 and 2000 Hz.
Technical Frequently Asked Questions
How does the I/92CD differ from the I/E6 model?
The I/92CD is specifically designed for split tables with a high-precision tangential joint that allows axial offsets of ±0.01 mm and radial offsets of ±0.02 mm, while the I/E6 is a standard model without this special configuration.
What alignment precautions does the I/92CD shaft require?
Given its design for split tables, alignment is critical. The encoder supports axial offsets of ±0.01 mm and radial offsets of ±0.02 mm, but it is recommended to avoid larger misalignments to prevent compromising the bearing's 1.5 x 10^9 turns life.
What connectors and output options are available for the I/92CD?
It can be configured with a 26LS31 line driver or sinusoidal output. Connection options include CV cable, VD terminal block, VH (12-pin), VH5, and VI connectors, as well as IP65 versions for watertight environments.
Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental |
| Main Application | Split Tables / High Precision |
| Base Material | Stainless steel |
| Cover Material | Anodized Aluminum |
| Total Weight | 1200 g |
| Material Axis | Stainless steel |
| Maximum Shaft Diameter | Ø 20 mm |
| Max Continuous RPM | 600 rpm |
| Starting Torque | 5000 gcm |
| Bearing Life | 1.5 x 10^9 turns |
| Impact Resistance | 30G x 5ms |
| Vibration Resistance | 10 G (55 ÷ 2000 Hz) |
| Operating Temperature | 0 ÷ 70 °C |
| Number of Impulses/Rev | 9000÷900000 PPR |
| Maximum Frequency | 160÷2200 kHz |
