VP55 Portable Electronic Steering Wheel
- Manufacturer: ELCIS Encoder
- Category: Encoder, SENSORS, Electronic Steering Wheels

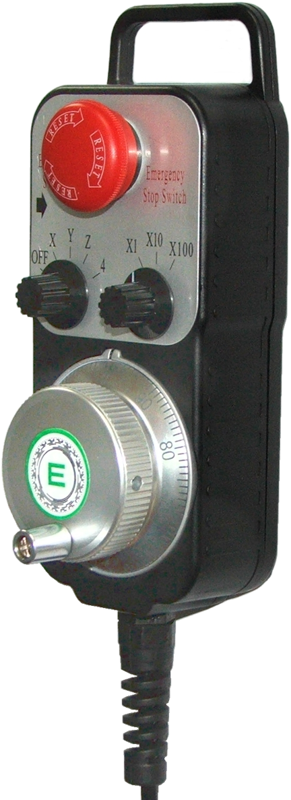

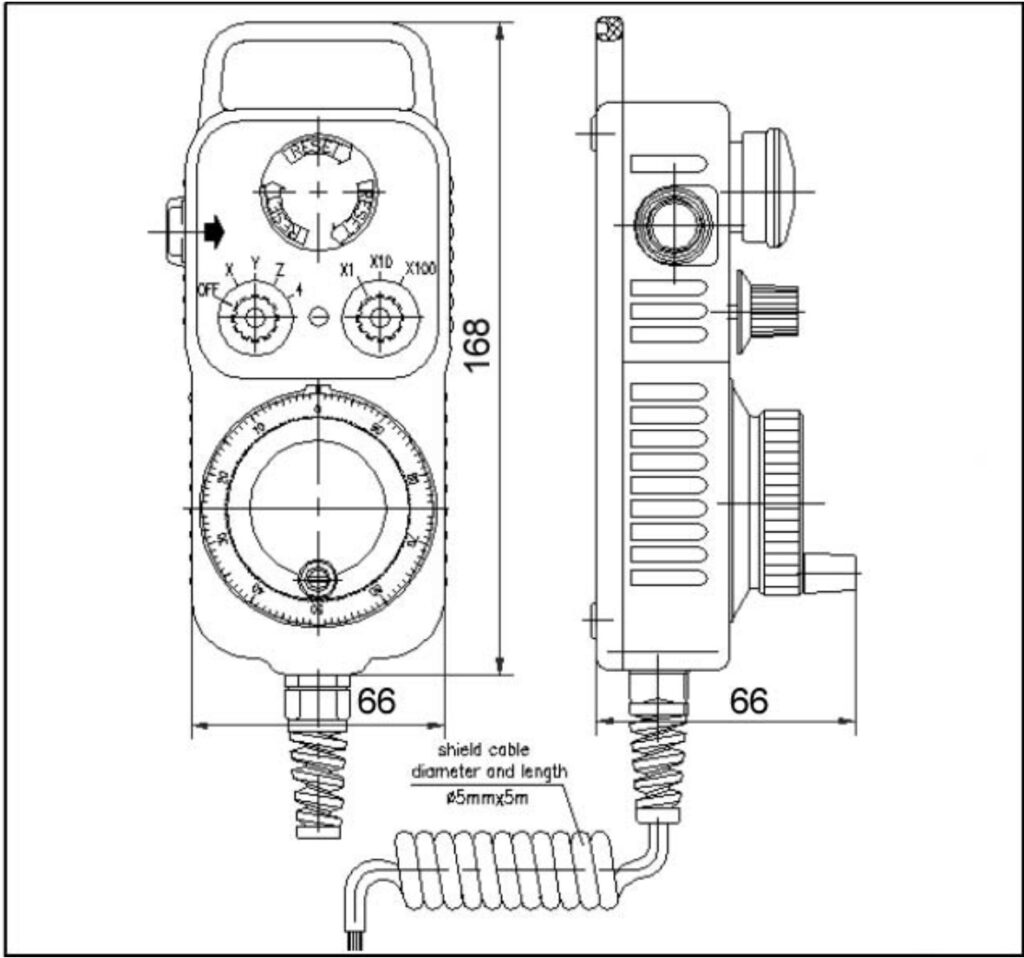

Portable electronic handwheel without internal electronic counter, for connection to the CNC via cable. Features switches for selecting the resolution and CNC axis. Supplied with magnetic coupler.
The VP55 model features a 740g ABS housing with good resistance to external agents and an anodized aluminum control with 100 divisions; the steps (100 PPR) are lockable at each division. Two electronic switches select the resolution and the CNC axis, and a mushroom-type push button allows for immediate machine tool stop. The magnetic coupler ensures a secure attachment to the machine tool.
It is easy to operate and can be interfaced with most CNC machines thanks to various combinations: push-pull electronic output stages (70 mA) and a 26LS31 driver (30 mA), powered by a 5 V ±5 %. Connection is made via a 5 m coiled cable (CV), with an optional connector at the end: VD4 (DE25P) or VM5 (PT06A16-26S). Available in guemisa.es.
- 740g ABS casing with good resistance to external agents.
- Two electronic switches to select the resolution and axis of the CNC.
- Mushroom-type push button to immediately stop the machine tool.
- Supplied with magnetic coupler for firm attachment to the machine tool.
- 5m spiral cable with IP54 protection on the shaft side.
Technical Frequently Asked Questions
What type of mounting and cable does the VP55 portable steering wheel have?
It is supplied with a magnetic coupler for firm attachment to the machine tool, and the cable is 5 m long and spiral.
What electronic stages and power supply does the VP55 use?
It uses Push-pull (70 mA) electronic output stages or 26LS31 line driver (30 mA), both with a supply voltage of 5 V ±5 %.
What optional connectors are available at the end of the coiled cable?
It accepts the optional VD4 (DE25P) or VM5 (PT06A16-26S) connector at the end of the 5m coiled cable.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | ABS |
| Weight | 740 g |
| Electric | |
| Resolution | 100 divisions/lap |
| Max. consumption. | 70 mA standard · 100 mA line driver |
| Impulses per lap | 100 |
| Protection and environment | |
| axle-side protection | IP54 |
| Steering wheel exit protection | IP65 |
| Rotational life at 200 rpm | ≥ 1,000,000 h |
| Impact resistance | 10 G × 6 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | -10 … +70 °C (Customizable upon request: operating temperature) |
| Storage Temp. | -25 … +85 °C |
| Other features | |
| Remote control and graduated disc | Anodized aluminum |
| Display | 100 divisions in the control flange |
| Connection | 5m spiral cable with optional connector at the end |
