VE80 Electronic Steering Wheel
- Manufacturer: ELCIS Encoder
- Category: Encoder, SENSORS, Electronic Steering Wheels

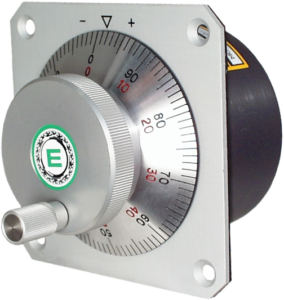

Electronic steering wheel with Ø80 mm control and connection terminal block output.
The VE80 incorporates a metallized Ø80 mm control. It delivers 100 pulses per revolution as standard, with mechanical interlocking at each step.
It offers standard NPN electronics and a 26LS31 driver with 5 VDC or 15 to 24 VDC power supply. It features IP50 protection on the shaft side and a rotational life of at least 1,000,000 hours at 200 rpm. Available in guemisa.es.
- Resolution of 100 pulses per turn with interlocking by notches at each step.
- Metallic control Ø80 mm.
- Nutrition 5 Vcc or of 15 to 24 VDC with Phoenix MS terminal box.
- Rotating lifespan ≥ 1,000,000 hours a 200 rpm and degree of protection IP50 axis side.
Technical Frequently Asked Questions
What resolution and control diameter does the VE80 have?
It has an 80 mm diameter control and offers 100 pulses per revolution with mechanical interlocking by notches at each step.
What electronic outputs and voltages does it support?
It accepts standard NPN stages and a 26LS31 (N) driver. Supply voltages are 5 V ±5 % or 15–24 V.
What IP connectivity and protection options does it include?
It offers IP50 protection on the shaft side, and IP00 rating on the Phoenix MS axial terminal block.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Anodized aluminum |
| Cover | Plastic |
| Weight | 280 g |
| Starting torque | 0,12 Nm |
| Electric | |
| Exit-side protection | According to connection: IP00 (see page 2) |
| Max. consumption. | 80 mA standard · 160 mA line driver |
| Light source | LED with life ≥ 100,000 h |
| Impulses per lap | 100 standard (with detent notches at each step). Drawing dimensions without tolerance according to UNI ISO 2768-mk) |
| Protection and environment | |
| axle-side protection | IP50 |
| Rotational life at 200 rpm | ≥ 1,000,000 h |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +60 °C |
| Storage Temp. | -30 … +85 °C |
| Other features | |
| Remote control and graduated disc | Metallic (80 mm diameter handle) |
