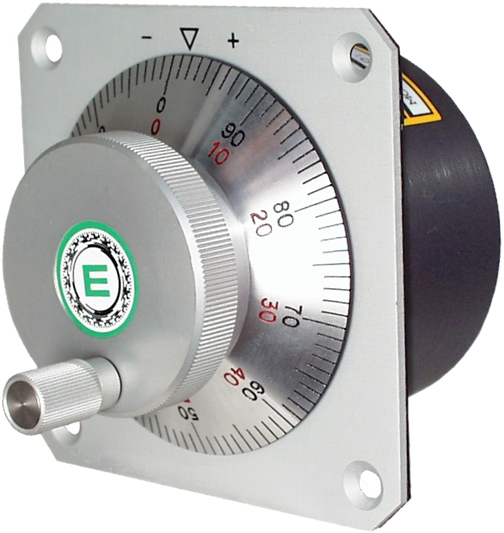

Electronic Steering Wheel VE110
- Manufacturer: ELCIS Encoder
- Category: Encoder, SENSORS, Electronic Steering Wheels
Electronic handwheel with square mounting flange, suitable for use in CNC, control panels, etc.
The VE110 control unit is made of anodized aluminum. It comes standard with 100 pulses per revolution with mechanical interlock at each step, or from 1 to 2500 pulses per revolution with the optional F clutch.
It offers twelve output electronics (NPN, PNP, push-pull, and 26LS31 and 88C30 drivers) with power supplies between 5 and 30 VDC depending on the version. It features IP65 protection on the shaft side and a rotational life of at least 1,000,000 hours at 200 rpm. Available in guemisa.es.
- Standard resolution of 100 pulses per turn with notched interlock and clutch option 1 to 2500 pulses.
- I control in anodized aluminum.
- Nutrition 5 to 30 V in 11 variants and electronics with 26LS31 and 88C30 drivers.
- Rotating lifespan ≥ 1,000,000 hours a 200 rpm and degree of protection IP65 axis side.
Technical Frequently Asked Questions
What resolution and interlocking capabilities does the VE110 offer?
It has 100 pulses per revolution with mechanical interlocking by notches at each step in its standard version, and from 1 to 2500 pulses per revolution with the F clutch option.
What electronic outputs and voltages does it support?
It supports NPN, NPN open collector, PNP, PNP open collector, push-pull, 2× push-pull stages and 26LS31 and 88C30 drivers. Available power supplies cover 5 V ±5 %, 8–24 V, 18–28 V, 8–15 V, 12 V ±5 %, 24 V ±5 %, 12–30/12 V, 8–24/5 V, 10–30 V, 18–28/5 V and 15–30/15 V (max. 15 Vdc with 88C30 driver).
What IP connectivity and protection options does it include?
It offers IP65 protection on the shaft side and axial or radial output via CV direct cable (IP65), Phoenix MS terminal box (IP53 axial), direct connectors (IP63 to IP67) or cable end connectors.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Anodized aluminum |
| Cover | Anodized aluminum |
| Axis | Stainless steel |
| Weight | 900 g |
| Starting torque | 0,15 Nm |
| Electric | |
| Exit-side protection | According to connection: IP53 to IP67 (see page 2) |
| Max. consumption. | 80 mA standard · 150 mA line driver |

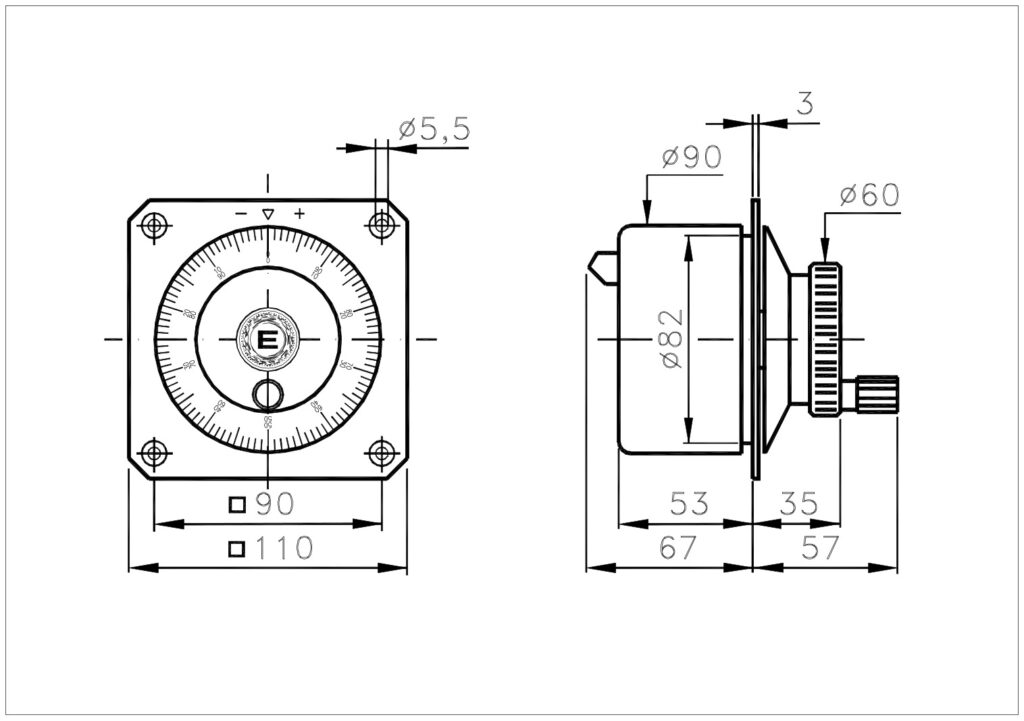

| Impulses per lap | 100 Standard · 1 to 2500 with clutch (option F) (with detent notches at each step). Clutch option available (1 to 2500 imp/revolution). Drawing dimensions without tolerance according to UNI ISO 2768-mk) |
| Protection and environment | |
| axle-side protection | IP65 |
| Rotational life at 200 rpm | ≥ 1,000,000 h |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C |
| Storage Temp. | -30 … +85 °C |
| Other features | |
| Remote control and graduated disc | Anodized aluminum |
