A/959CC Absolute Fieldbus Encoder
- Manufacturer: ELCIS Encoder
- Category: Encoder, Absolute Encoder, Absolute Encoder Fieldbus, SENSORS

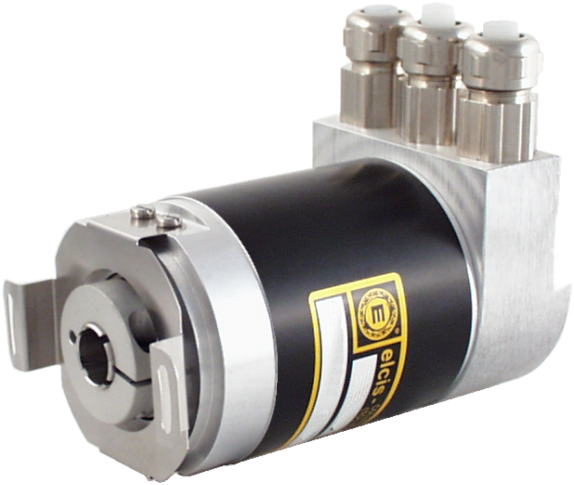

The A/959CC is a compact and robust absolute encoder with a hollow shaft and integrated flexible coupling, featuring a CANopen interface. It mounts servo-style using front-mounted clips or screws and offers high resolution at an excellent price/performance ratio.
The A/959CC is a single-turn or multi-turn absolute encoder with a CANopen/CAN (C2) or CAN with fiber optic (CF) interface and a CAN transceiver (ISO 11898), with a transmission speed of up to 1 MBaud. It allows selection of 4096, 8192, 16384, 32768, or 65536 steps per revolution and 1, 4096, or 16384 revolutions, with a maximum of 30 bits in binary code. Programmable parameters include cams, two limit switches, speed, baud rate, CAN identifier, and transmission mode, and two LEDs indicate the status.

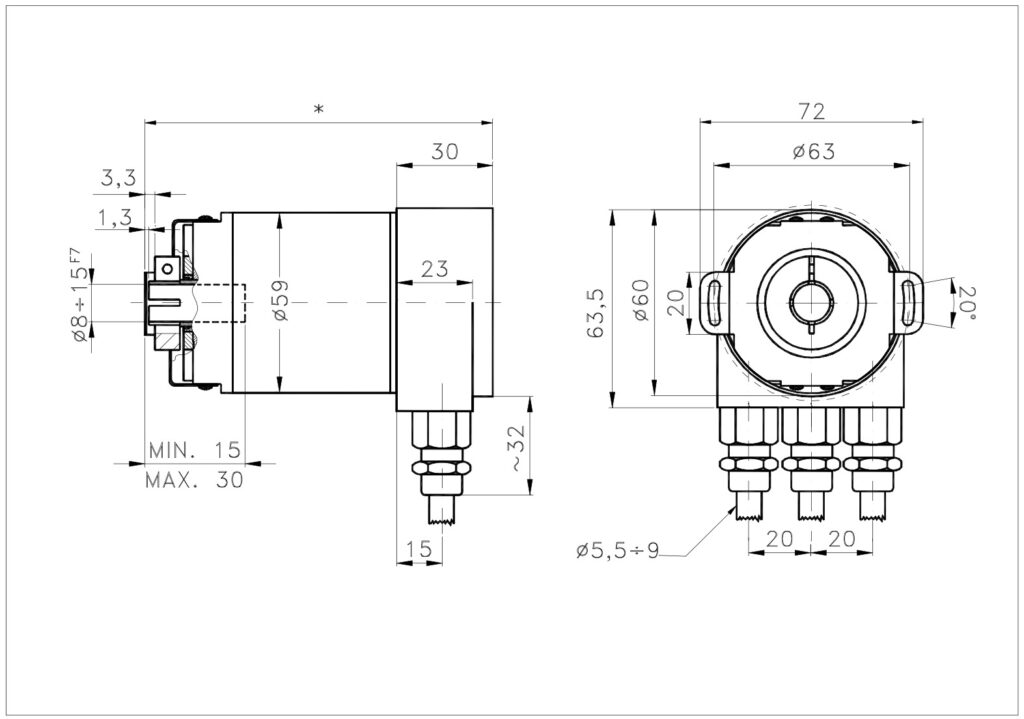

Constructed with a Ø59 mm aluminum housing and a hollow F7 stainless steel shaft (standard Ø15 mm; Ø8, Ø10, Ø12, or others available upon request), its integrated elastic coupling allows for a maximum compensation of ±0.1 mm axially, ±0.2 mm radially, and ±1° angularly, and supports radial and axial loads of 40 and 110 N. It features IP64 protection on the shaft side (IP66 in the sealed version), withstands 30 G shocks and 10 G vibrations, and operates from -40 to +85 °C. Available in guemisa.es.
- Interface CANopen / CAN (or CAN with fiber optics) with ISO transceiver 11898 until 1 MBaud.
- Hollow shaft with built-in elastic coupling: compensates ±0.1 mm axial, ±0.2 mm radial and ±1° angular.
- Resolution of up to 16 bit per turn and 30 bit in 16384 turns.
- Programmable parameters: cams, 2 limit switches, speed, baud rate and CAN identifier.
Technical Frequently Asked Questions
What compensation does the elastic coupling of the A/959CC allow?
The built-in elastic coupling allows a maximum compensation of ±0.1 mm axial, ±0.2 mm radial and ±1° angular.
What parameters are programmable in the CANopen interface?
Direction of rotation (complement), resolution per revolution, total resolution, preset value, cams, 2 limit switches, speed, baud rate, and CAN identifier. The transmission mode can be polled mode, cyclic mode, sync mode, or cos mode.
What connections are available?
IP65 connection cover (3PG), IP65 connection cover + LED (3PG-D), IP65 stainless steel connection cover (3PG-VA), IP65 2-wire connection cover (2M20), IP65 5-pin round connector (1BW), two IP65 5-pin round connectors (2BW) and fiber optic connector (1HW).
Properties
| Feature | Specification |
|---|---|
| Housing | Aluminum Ø59 mm (custom options) |
| Weight | 550 g single turn · 600 g multiturn |
| Shaft (stainless steel) | F7 Hole: Standard Ø15 mm; Ø8, Ø10, Ø12 or others upon request |
| Elastic coupling | Max. compensation: axial ±0.1 mm · radial ±0.2 mm · angular ±1° |
| max radial/axial load. | 40 / 110 N |
| Shaft/outlet protection | IP64 shaft (IP66 sealed) · IP65 outlet |
| max. continuous RPM | 6000 standard · 3000 sealed (intermittent: +30 %) |
| Impact/vibration resistance | 30G (11ms) 10G (10–1000Hz) |
| bearing life | >105 at 1000 rpm |
| Power supply / max. consumption. | 10–30 V DC · 2.5 W |
| LSB pitch frequency | 800 kHz |
| Operating/storage temperature | -40 … +85 °C / -40 … +85 °C |
| Division accuracy | ±½ LSB (<13 bit) · ±2 LSB (13–16 bit) |
| Max. resolution / output code | 16 bits/turn · 30 bits in 16384 turns · Binary |
| Interface | CANopen / CAN (C2) · CAN fiber optic (CF) · ISO 11898 CAN transceiver · max. 1 MBaud |
