Incremental Encoder for I/48 Motors
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS

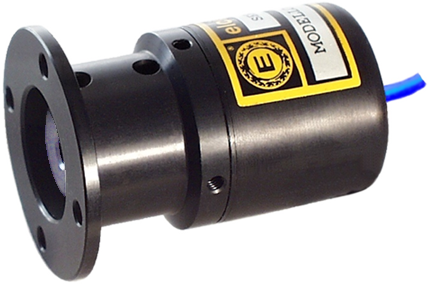

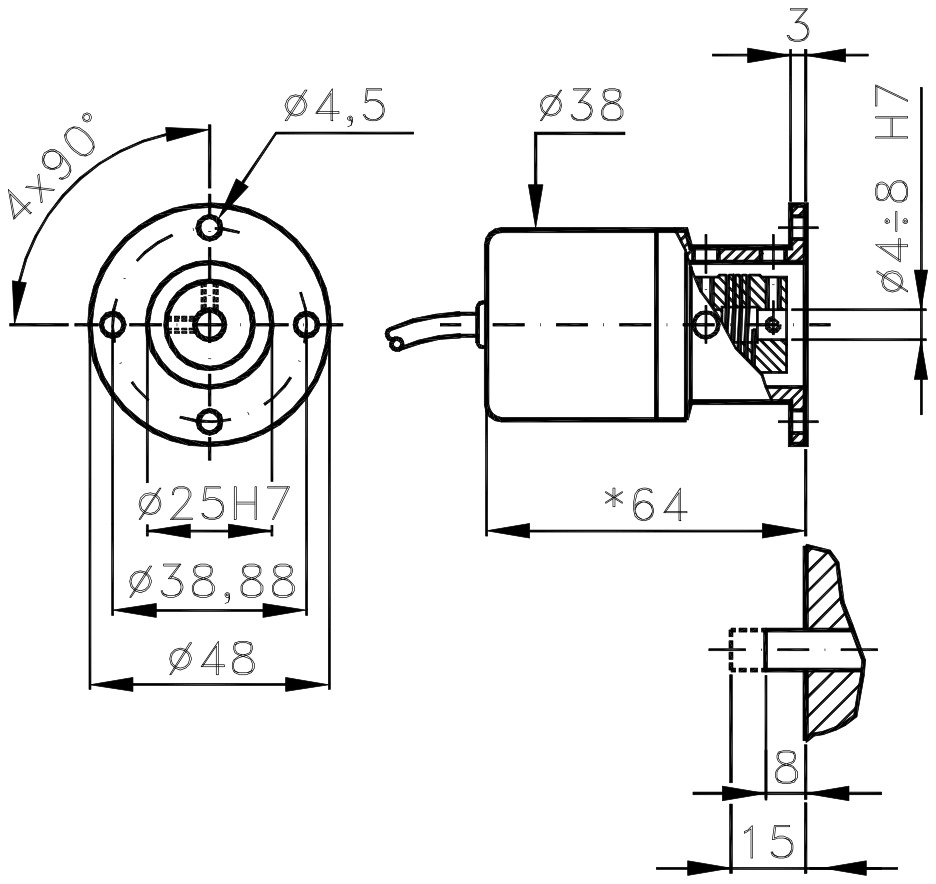

El ELCIS 48 (I/48) es un encoder incremental miniatura de Ø48 mm, con acoplamiento helicoidal interno y de 1 a 2540 impulsos por vuelta. Permite alinear el cero eléctrico con el cero mecánico y admite, como opción, bridas diferentes.
The maximum compensation of the coupling is axial ±0.2 mm, radial ±0.05 mm and angular ±2°. The base and cover are made of anodized aluminum and the hollow shaft, made of Ergal, from Ø4 to Ø8 mm; the weight is 180 g.
Ofrece de 1 a 2540 impulsos por vuelta con frecuencia máx. de 60 kHz (75 o 100 kHz con las opciones R y V) y alimentación de 5÷30 Vcc. En el lado del eje es IP64 de serie e IP66 con rodamiento sellado (opción Z, 3000 rpm máx. continuas); el lado de la salida, según conexión. El cable sale axial o radial.
- Internal helical coupling: max. axial compensation ±0.2 mm, radial ±0.05 mm and angular ±2°.
- Zero alignment: allows aligning the electrical zero with the mechanical zero.
- Hollow Ergal shaft: Ø4, Ø6 or Ø8 mm; other diameters available upon request.
- Max. frequency 60 kHz: 75 kHz with option R and 100 kHz with option V.
Technical Frequently Asked Questions
What type of coupling does the I/48 model integrate?
An internal helical coupling, with max. axial compensation ±0.2 mm, radial compensation ±0.05 mm and angular compensation ±2°.
What hollow shaft diameters does the I/48 encoder support?
Ø4, Ø6 and Ø8 mm, in Ergal; other diameters available upon request.
What is the weight of the I/48 encoder?
180 g. The base and lid are made of anodized aluminum.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Anodized aluminum (base and lid) |
| Weight | 180 g |
| Axis | Hollow shaft Ø4÷8 mm in Ergal (customizable upon request) |
| max. axial/radial load. | 1 kg |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Exit-side protection | According to connection: IP65 (see technical specifications) |
| Feeding | 5÷30 Vcc (see technical specifications) |
| Max. consumption. | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Impulses per lap | 1 to 2540 |
| Max frequency. | 60 kHz (75 or 100 kHz optional) |
| Protection and environment | |
| axle-side protection | IP64 standard / IP66 sealed (option Z) |
| max. continuous RPM | 6000 rpm (standard) / 3000 rpm (option Z) (max. intermittent rpm: +30 % of the max. continuous rpm) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Reference | Configuration |
|---|---|
| I/X486-100-1828-BZ-B-CV-R-01IX4861001828BZBCVR01 | opciones personalizadas · eje Ø 6 mm · 100 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull pro · Cable · salida radial |
| I/X486-100-1828-BZ-B-CV-R-02IX4861001828BZBCVR02 | opciones personalizadas · eje Ø 6 mm · 100 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull pro · Cable · salida radial |
