Special Incremental Encoder I/58SX
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Special Incremental Encoder, SENSORS

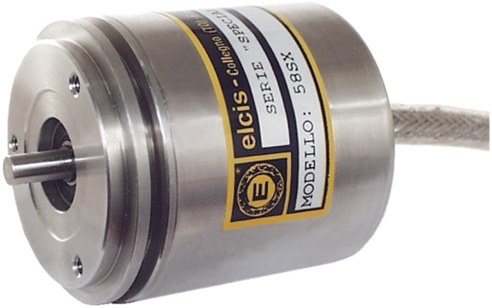

El ELCIS 58SX (I/58SX) es un encoder incremental de Ø58 mm para ambientes marinos y químicos, de 1 a 25000 impulsos por vuelta. La tapa y el eje son de acero inoxidable y la base de aluminio anodizado; el eje es de Ø6 h7, el centrado de Ø50 h7 y el peso de 520 g. En el lado del eje ofrece IP64 estándar, IP66 con rodamientos sellados (opción Z) o IP53 con rodamientos de bajo par (opción B). Tiene frecuencia máx. de 100 kHz (300 kHz opcional), alimentación de 5 a 30 Vcc según código y electrónicas NPN, PNP, push-pull, line driver 26LS31 y 88C30, TTL 7404, discriminador y senoidal 1 Vpp. Se conecta por cable de 1 m con salida axial o radial, por conector en extremo de cable o por caja de bornes.
The base is made of anodized aluminum, and the cover and shaft are made of stainless steel; the shaft is Ø6 h7, the centering is Ø50 h7, and the weight is 520 g. On the shaft side, it offers standard IP64, IP66 with sealed bearings (option Z), or IP53 with low-torque bearings (option B).
Ofrece de 1 a 25000 impulsos por vuelta con frecuencia máx. de 100 kHz (300 kHz opcional), alimentación de 5 a 30 Vcc según código y electrónicas NPN, PNP, push-pull, line driver 26LS31 y 88C30, TTL 7404, discriminador y senoidal 1 Vpp. Se conecta por cable de 1 m con salida axial o radial, por conector en extremo de cable o por caja de bornes.
- Stainless steel: stainless steel cover and shaft, for marine and chemical environments.

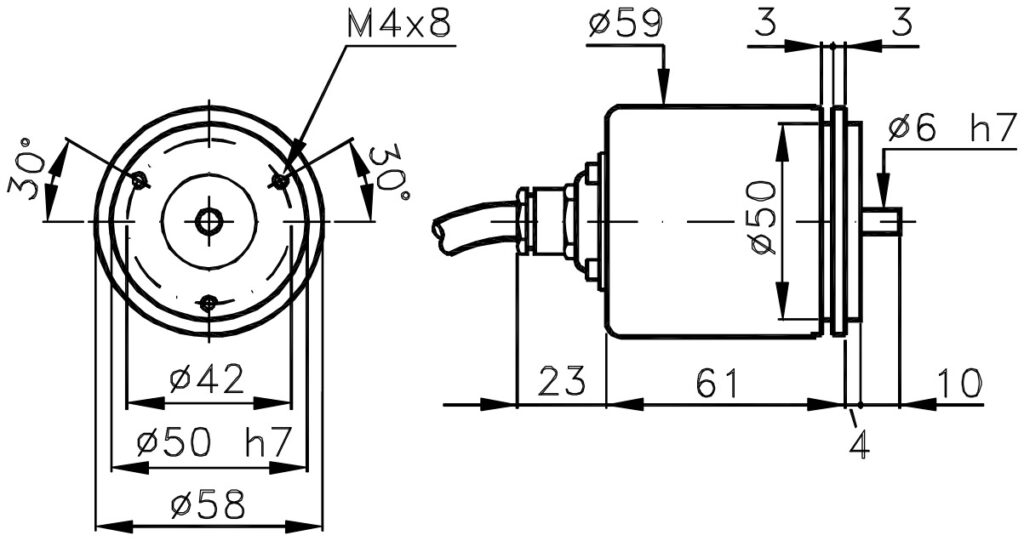

- Mounting: centered Ø50 h7 and shaft Ø6 h7 made of stainless steel.
- Up to 25,000 pulses per revolution: max. frequency of 100 kHz (300 kHz optional).
- Output electronics: NPN, PNP, push-pull, line driver 26LS31 and 88C30, TTL 7404, discriminator and sine wave 1 Vpp.
Technical Frequently Asked Questions
Which parts of the I/58SX are made of stainless steel?
According to the ELCIS specifications table, the lid and shaft are Ø6 mm; the base is made of anodized aluminum.
What levels of protection does it offer?
On the shaft side, IP64 standard, IP66 with sealed bearings (option Z), and IP53 with low-torque bearings (option B). On the output side, it depends on the connection: IP65 cable, IP65 cable end connector at the encoder output, and IP00 terminal box.
What range of pulses per revolution does it provide?
From 1 to 25000 pulses per revolution, with a maximum frequency of 100 kHz (300 kHz optional).
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 520 g |
| Axis | Ø 6 mm en acero inoxidable (personalizable bajo pedido) |
| max. axial/radial load. | 3 kg |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Exit-side protection | According to connection (see "Possible Connections") (IP rating according to IEC EN 60529, EN 60529, IEC 529) |
| Feeding | 5÷30 Vcc according to code (see "Possible Feeds") |
| Max. consumption. | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Impulses per lap | 1 to 25000 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP64 standard / IP66 sealed (option Z) / IP53 low torque (option B) (IP rating according to IEC EN 60529, EN 60529, IEC 529) |
| max. continuous RPM | 8000 rpm (std) / 3000 rpm (option Z) / 12000 rpm (option B) (turn signals: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Working temperature | 0 ÷ +70 °C (customizable upon request) |
| Storage temperature | -30 ÷ +85 °C |
