Incremental Encoder for I/59ZMA Motors
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS

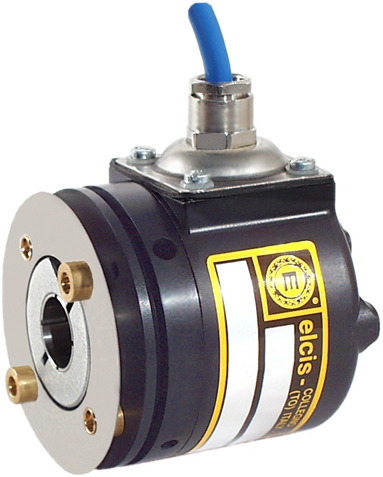

El ELCIS 59ZMA (I/59ZMA) es un encoder incremental de Ø59 mm, con acoplamiento elástico, eje hueco pasante y de 1 a 3600 impulsos por vuelta. Es apto para su uso en motores. Es similar al modelo 59ZM, pero se suministra con un collarín de tope para fijarlo al eje del motor.

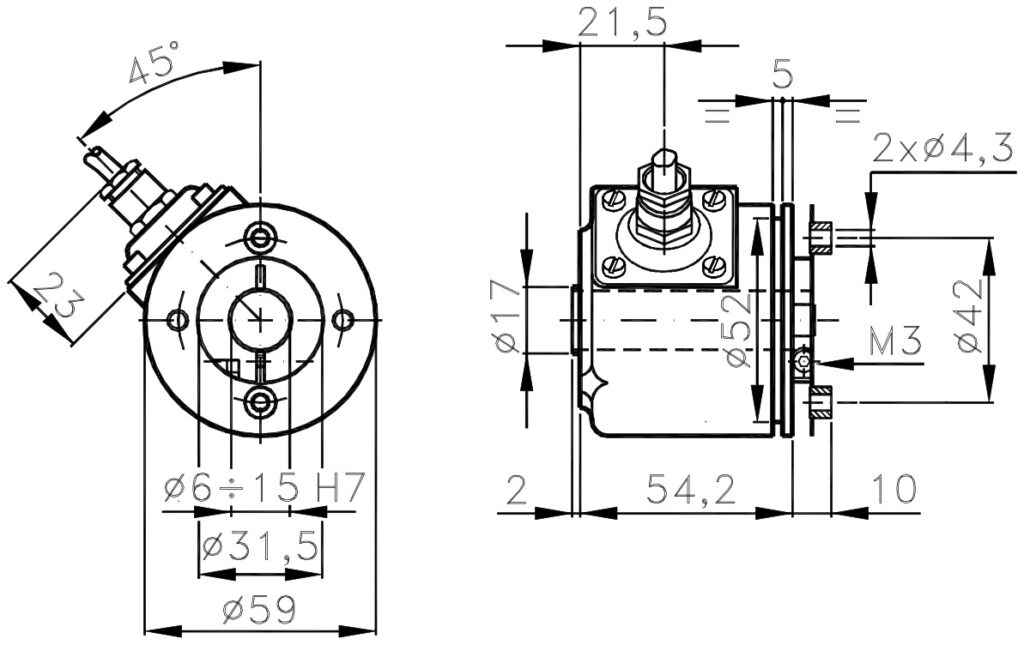

It has an anodized aluminum base and a Valox 420 cover, weighs 300g, and accepts stainless steel through shafts of Ø6, Ø8, Ø10, Ø12 and Ø15 mm (Øn on request). The maximum coupling compensation is axial ±0.15 mm, radial ±0.05 mm and angular ±1°.
Genera de 1 a 3600 impulsos por vuelta con una frecuencia máx. de 100 kHz (300 kHz opcional) y se ofrece con electrónicas NPN, PNP, push-pull, line driver, TTL y sinusoidal 1 Vpp. La fuente de luz es un LED con vida ≥ 100000 h y los rodamientos tienen una vida de 1,5 × 10⁹ revoluciones.
- Stop collar: supplied to fix the encoder to the motor shaft.
- Elastic coupling: max. axial compensation ±0.15 mm, radial compensation ±0.05 mm and angular compensation ±1°.
- Protection: IP64 on the shaft side (IP65 sealed with option Z, IP53 under torque with option B); on the output side, depending on the connection.
- Speed: 6000 rpm continuous in standard version, 3000 rpm sealed (option Z) and 8000 rpm under torque (option B).
Technical Frequently Asked Questions
What is the difference between the I/59ZMA and the 59ZM?
The I/59ZMA is similar to the 59ZM, but is supplied with a stop collar for attaching it to the motor shaft.
What IP protection rating does the I/59ZMA have?
On the shaft side, IP64 in the standard version, IP65 in the sealed version (option Z), and IP53 in the low-torque version (option B). On the output side, it depends on the connection: IP65 with CV cable and IP67 with CH, CH5, and CH6 connectors.
What outputs does the I/59ZMA encoder offer?
NPN, NPN open collector, PNP, PNP open collector, push-pull, TTL 7404, 26LS31 driver, 88C30 driver and sinusoidal 1 Vpp.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 300 g |
| Axis | Eje pasante Ø 6÷15 mm en acero inoxidable (personalizable bajo pedido) |
| max. axial/radial load. | 6 kg |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Exit-side protection | According to connection (protección lado salida y lado eje: IP según CEI EN 60529, EN 60529, IEC 529) |
| Feeding | 5÷30 Vcc (according to code) |
| Max. consumption. | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Impulses per lap | 1 to 3600 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP64 estándar / IP65 sellado (opción Z) / IP53 bajo par (opción B) (protección lado salida y lado eje: IP según CEI EN 60529, EN 60529, IEC 529) |
| max. continuous RPM | 6000 rpm (estándar) / 3000 rpm (sellado, opción Z) / 8000 rpm (bajo par, opción B) (intermitentes: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Working temperature | 0 ÷ +70 °C (customizable upon request) |
| Storage temperature | -30 ÷ +85 °C |
| Reference | Configuration |
|---|---|
| I/59ZMA15-1024-18285-BZ-N-CV-R-02I59ZMA15102418285BZNCVR02 | eje Ø 15 mm · 1024 impulsos/vuelta · 18 ÷ 28 / 5 V · bidireccional + impulso cero · Driver 26LS31 · Cable radial IP65 · salida radial |
| I/59ZMA15-1024-5-BZ-N-CV-R-01I59ZMA1510245BZNCVR01 | eje Ø 15 mm · 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial IP65 · salida radial |
| I/K59ZMA12-2500-5-BZ-N-CV-R-03.50IK59ZMA1225005BZNCVR0350 | inversión fases a, b, cero · eje Ø 12 mm · 2500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial IP65 · salida radial |
| I/LA59ZMA15-1024-5-BZ-N-CV-R-01ILA59ZMA1510245BZNCVR01 | baja temperatura · alta temperatura · eje Ø 15 mm · 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable radial IP65 · salida radial |
| I/X59ZMA15-1024-1828-BZ-B-CV-R-05IX59ZMA1510241828BZBCVR05 | opciones personalizadas · eje Ø 15 mm · 1024 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable radial IP65 · salida radial |
