Robust Incremental Encoder ATEX I/114
Budget-friendly price Request a quote
Housing Ø114, flange B10 Ø115 | Shaft Ø11 h7 stainless steel | 1 to 90000 imp/rev | NPN, PNP, push-pull, driver, 1 Vpp | Power supply 5–30 V | IP66 shaft (IP67 sealed) | CE Ex II 3GD, category 3
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, ATEX Explosionproof Incremental Encoder, Robust Incremental Encoder, SENSORS

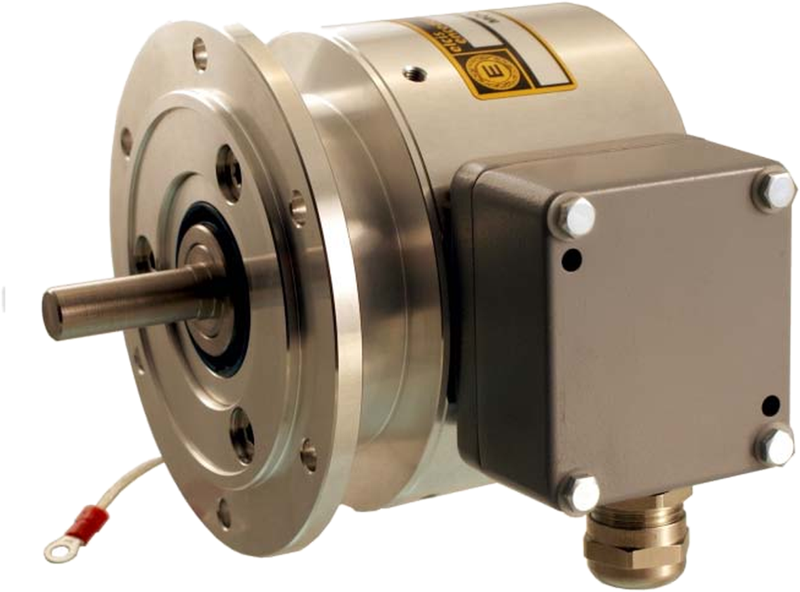

The ELCIS 114 (I/114) is a robust incremental encoder with a B10 flange (Ø115) and a Ø114 mm housing, offering 1 to 90,000 pulses per revolution. It is ATEX 3 certified (CE Ex II 3GD). Its Ø11 h7 stainless steel shaft supports 25 kg of radial and axial load and features an aluminum base and cover. It offers high resistance to mechanical stress on the shaft and operates from 0 to +70 °C with IP66 protection on the shaft side (IP67 sealed). It is suitable for heavy-duty use in harsh industrial environments.
The I/114 supports NPN, PNP, push-pull electronics, 26LS31 and 88C30 drivers, TTL, discriminator and 1 Vpp sinusoidal, in unidirectional, bidirectional and zero versions.

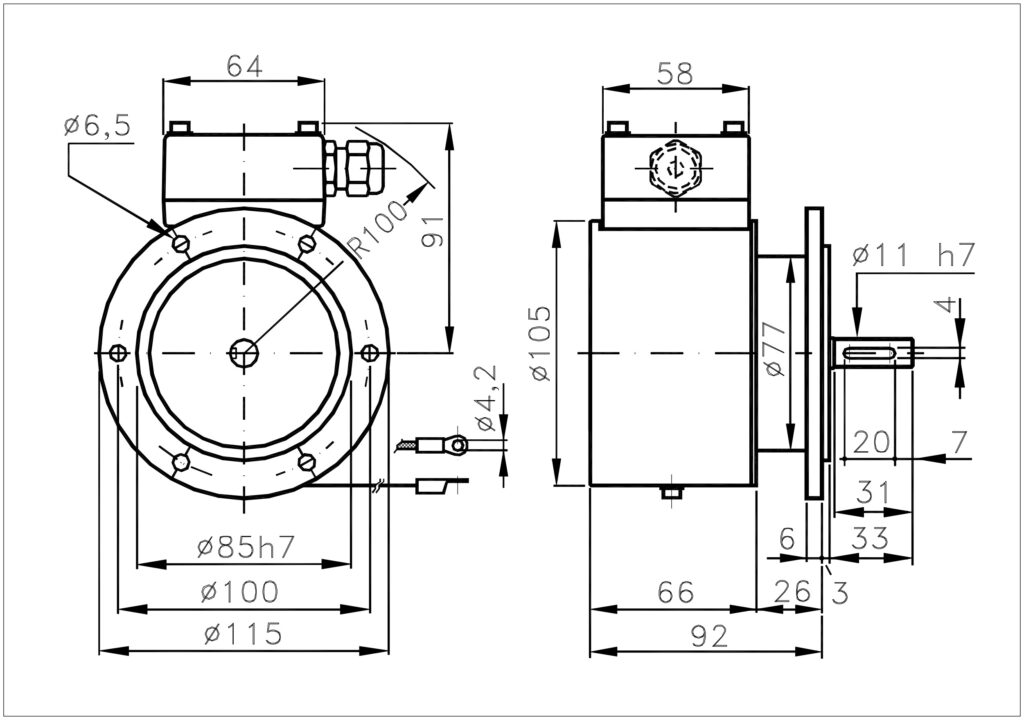

Housing Ø114 mm with standard B10 flange, aluminum base and cover, and stainless steel shaft Ø11 h7 that supports 25 kg of radial/axial load. It operates from 0 to +70 °C with IP66 protection on the shaft side (IP67 sealed) and is connected by cable, connector, cable end connector or terminal box (IP00).
- Resolution of 1 to 90000 pulses per lap and frequency up to 100 kHz (300 kHz optional).
- Flange B10 standard and stainless steel shaft Ø11 h7 with maximum radial/axial load of 25 kg.
- MTTFd high according to EN ISO 13849-1 and up 6000 rpm continuous.
- Nutrition 5 to 30 V according to version and starting torque of 90 g·cm (150 g·cm with sealed bearing).
Technical Frequently Asked Questions
What signal versions does the I/114 offer?
Unidirectional (M), bidirectional (B), bidirectional + zero (BZ) and unidirectional + zero (MZ).
What supply voltages does it support?
5 V ±5 %, 8–24 V, 18–28 V, 8–15 V, 12 V ±5 %, 24 V ±5 %, 12–30/12 V, 8–24/5 V, 10–30 V, 18–28/5 V and 15–30/15 V. With 88C30 driver, maximum 15 Vdc.
What axle protection options are available?
IP66 in standard version and IP67 with sealed bearing (option Z, 3000 rpm continuous).
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Ø114 mm |
| Flange | B10 standard (Ø115) |
| Weight | 850 g |
| Axis | Ø11 h7 stainless steel (customizable upon request) |
| max radial/axial load. | 25 kg |
| Electric | |
| Exit-side protection | According to connection: IP00 to IP67 |
| Feeding | 5–30 V according to version |
| Max. consumption. | 120 mA Standard · 180 mA line driver (customizable upon request) |
| Impulses per lap | 1 to 90000 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP66 standard · IP67 sealed (Z) |
| max. continuous RPM | 6000 standard · 3000 sealed (intermittent: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Reference | Configuration |
|---|---|
| I/114-1000-5-BZ-N-CW-01I11410005BZNCW01 | 1000 pulses/revolution · 5 V ±5 % · bidirectional + zero · Driver 26LS31 · 1 m cable · IP65 · axial output · 1 m |
| I/114-1024-5-BZ-N-CW-01I11410245BZNCW01 | 1024 pulses/revolution · 5 V ±5 % · bidirectional + zero · Driver 26LS31 · 1 m cable · IP65 · axial output · 1 m |
| I/114-500-5-BZ-N-CW-01I1145005BZNCW01 | 500 pulses/revolution · 5 V ±5 % · bidirectional + zero · Driver 26LS31 · 1 m cable · IP65 · axial output · 1 m |
| I/114-100-5-BZ-N-CW-01I1141005BZNCW01 | 100 pulses/revolution · 5 V ±5 % · bidirectional + zero · Driver 26LS31 · 1 m cable · IP65 · axial output · 1 m |
| I/114-2500-5-BZ-N-CW-01I11425005BZNCW01 | 2500 pulses/revolution · 5 V ±5 % · bidirectional + zero · Driver 26LS31 · 1 m cable · IP65 · axial output · 1 m |
| I/114-2000-5-BZ-N-CW-01I11420005BZNCW01 | 2000 pulses/revolution · 5 V ±5 % · bidirectional + zero · Driver 26LS31 · 1 m cable · IP65 · axial output · 1 m |
| I/114-1000-824-BZ-B-CW-01I1141000824BZBCW01 | 1000 pulses/revolution · 8–24 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-1024-824-BZ-B-CW-01I1141024824BZBCW01 | 1024 pulses/revolution · 8–24 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-500-824-BZ-B-CW-01I114500824BZBCW01 | 500 pulses/revolution · 8–24 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-100-824-BZ-B-CW-01I114100824BZBCW01 | 100 pulses/revolution · 8–24 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2500-824-BZ-B-CW-01I1142500824BZBCW01 | 2500 pulses/revolution · 8–24 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2000-824-BZ-B-CW-01I1142000824BZBCW01 | 2000 pulses/revolution · 8–24 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-1000-1828-BZ-B-CW-01I11410001828BZBCW01 | 1000 pulses/revolution · 18–28 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-1024-1828-BZ-B-CW-01I11410241828BZBCW01 | 1024 pulses/revolution · 18–28 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-500-1828-BZ-B-CW-01I1145001828BZBCW01 | 500 pulses/revolution · 18–28 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-100-1828-BZ-B-CW-01I1141001828BZBCW01 | 100 pulses/revolution · 18–28 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2500-1828-BZ-B-CW-01I11425001828BZBCW01 | 2500 pulses/revolution · 18–28 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2000-1828-BZ-B-CW-01I11420001828BZBCW01 | 2000 pulses/revolution · 18–28 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-1000-1030-BZ-B-CW-01I11410001030BZBCW01 | 1000 pulses/revolution · 10–30 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-1024-1030-BZ-B-CW-01I11410241030BZBCW01 | 1024 pulses/revolution · 10–30 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-500-1030-BZ-B-CW-01I1145001030BZBCW01 | 500 pulses/revolution · 10–30 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-100-1030-BZ-B-CW-01I1141001030BZBCW01 | 100 pulses/revolution · 10–30 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2500-1030-BZ-B-CW-01I11425001030BZBCW01 | 2500 pulses/revolution · 10–30 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2000-1030-BZ-B-CW-01I11420001030BZBCW01 | 2000 pulses/revolution · 10–30 V · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-1000-5-BZ-B-CW-01I11410005BZBCW01 | 1000 pulses/revolution · 5 V ±5 % · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-1024-5-BZ-B-CW-01I11410245BZBCW01 | 1024 pulses/revolution · 5 V ±5 % · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-500-5-BZ-B-CW-01I1145005BZBCW01 | 500 pulses/revolution · 5 V ±5 % · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-100-5-BZ-B-CW-01I1141005BZBCW01 | 100 pulses/revolution · 5 V ±5 % · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2500-5-BZ-B-CW-01I11425005BZBCW01 | 2500 pulses/revolution · 5 V ±5 % · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| I/114-2000-5-BZ-B-CW-01I11420005BZBCW01 | 2000 pulses/revolution · 5 V ±5 % · bidirectional + zero · Push-pull PRO · 1 m cable · IP65 · axial output · 1 m |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
