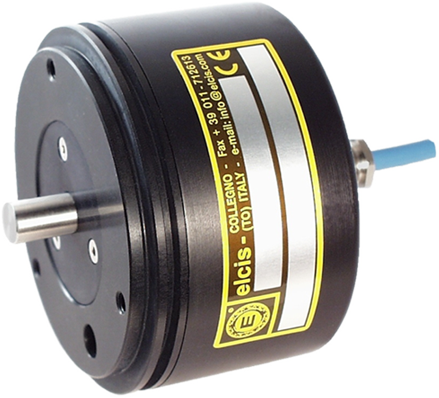

High Resolution Incremental Encoder I/90D
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, High Resolution Incremental Encoder, SENSORS
El ELCIS 90D (I/90D) es un encoder incremental de alta resolución de carcasa metálica Ø90 mm, con eje Ø10 h7 y de 1 a 90000 impulsos por vuelta. Está indicado para mesas divisoras y aplicaciones afines, con buena estanqueidad frente a agentes ambientales externos.
Housed in a metal enclosure with front centering (Ø80 h7) and a solid stainless steel shaft (Ø10 h7), the I/90D delivers 1 to 90,000 pulses per revolution with a maximum frequency response of 100 kHz (optional up to 1000 kHz). It features 12 electronic output options (NPN, PNP, push-pull, 26LS31 and 88C30 drivers, and 1 Vpp sinusoidal analog output) with a 5 to 30 V power supply.
Construcción mecánica en aluminio anodizado con eje de acero inoxidable para 3 kg de carga. Admite velocidades de 6000 rpm continuas (hasta 12000 rpm en versión de bajo par) y protección en el lado del eje IP65 estándar, IP66 con rodamientos sellados e IP53 con rodamientos de bajo par, con salida de cable axial o radial, 11 conectores de cable y 17 de extremo de cable.
- Resolution of 1 to 90000 pulses per lap and maximum frequency of 100 kHz (1000 kHz optional).

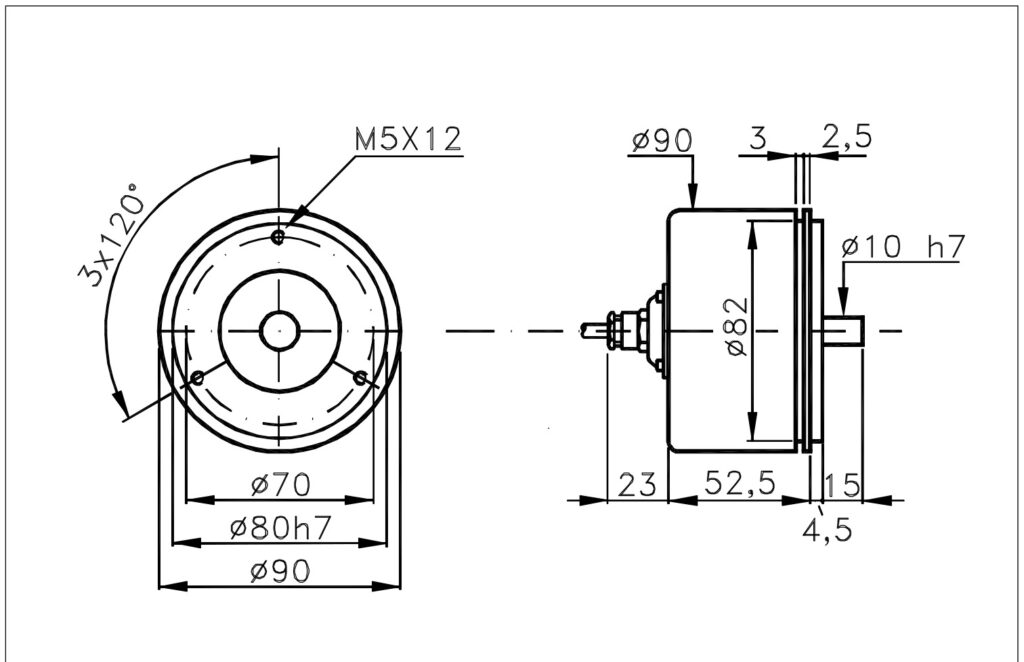

- Metal casing of Ø90 mm with centering Ø80 h7 and weight of 600 g.
- Solid shaft of stainless steel of Ø10 h7 with protection IP65 (option IP66 sealed).
- Speed up to 6000 rpm continuous (12000 rpm (in a low-torque version).
Technical Frequently Asked Questions
What resolution and response frequency does the I/90D encoder achieve?
It achieves from 1 to 90000 pulses per revolution with a standard maximum frequency of 100 kHz and high frequency options up to 1000 kHz (1 MHz).
What protection and bearing options does it offer?
It has standard IP65 protection on the shaft side, with the option of IP66 sealed bearings (option Z) or IP53 low torque bearings (option B).
What output signals and electronics does it incorporate?
It supports 12 configurations encompassing NPN, PNP, push-pull digital outputs, 26LS31 and 88C30 drivers, as well as 1 Vpp sinusoidal analog output.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Metal Ø90 mm |
| Weight | 600 g |
| Axis | Ø10 h7 stainless steel (customizable upon request) |
| max radial/axial load. | 3 kg |
| Electric | |
| Exit-side protection | According to connection: IP00 to IP67 (see technical data sheet) |
| Feeding | 5–30 V according to version (see technical specifications) |
| Max. consumption. | 120 mA Standard · 180 mA line driver (customizable upon request) |
| Impulses per lap | 1 to 90000 |
| Max frequency. | 100 kHz (1000 kHz optional) |
| Protection and environment | |
| axle-side protection | IP65 standard • IP66 sealed (Z) • IP53 low torque (B) |
| max. continuous RPM | 6000 standard · 3000 sealed · 12000 low torque (intermittent: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Storage Temp. | -30 … +85 °C |
