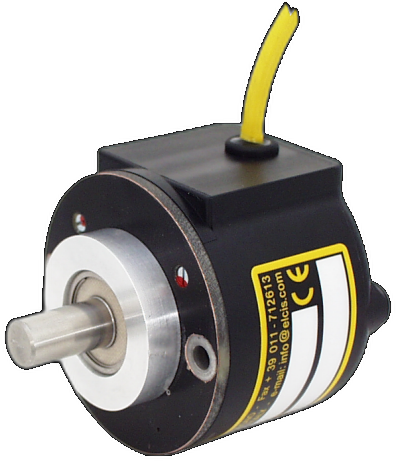

Incremental Encoder Kit and Low Cost I/58HJ
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder Kit Low Cost, SENSORS
The I/58HJ Incremental Encoder Kit and Low-Cost Encoder addresses a critical need in budget-conscious industrial environments without compromising operational reliability. Designed under a patented 'Heavy Duty' technology, this device eliminates the unnecessary costs associated with premium brands while maintaining rigorous quality standards for motion control applications.
The technical solution integrates a composite material base and a Valox 420 cover for structural durability. The Ø10 mm stainless steel shaft supports radial loads up to 3 kg, while the internal electronics allow for maximum frequencies of 60 kHz with configurable resolutions from 1 to 1024 pulses per revolution.
The construction withstands impacts of 50 G x 11 ms and vibrations of 12 G in the range of 10–2000 Hz, operating between 0 and 60 °C. Its IP65 protection on the shaft side ensures resistance to dust and water in harsh conditions. Available in guemisa.es.
- Composite base and Valox 420 lid for industrial durability.
- Stainless steel shaft Ø10 supports a maximum radial load of 3 kg.
- Vibration resistance of 12 G in the range of 10 ÷ 2000 Hz.
- LED light source with over 100,000 hours of lifespan.
Technical Frequently Asked Questions
How does the I/58HJ differ from the I/E6 model?
The I/58HJ belongs to the 'Kit and Low Cost' series, featuring a composite material base and weighing 145g, optimized for price-sensitive applications. The I/E6 typically belongs to more robust or compact series with different size and resolution specifications, so the 58HJ is specifically chosen for its cost-performance ratio in standard configurations.
What alignment precautions are required for the I/58HJ shaft?
The Ø10 mm stainless steel shaft supports a maximum radial and axial load of 3 kg, so overloading must be avoided during installation. Ensure that the starting torque does not exceed the mechanical limits of the sealed bearing to guarantee the stated service life of 1.5 x 10^9 revolutions without premature wear.
What connectors and output options are available for the I/58HJ?
The model supports multiple connection configurations such as cable end connectors (VM, TM), terminal blocks, or sub-D variants. Outputs include Open Collector NPN, Push-Pull PRO, and 26LS31/88C30 line driver, allowing the signal to be adapted to specific drivers without sacrificing data transmission integrity.

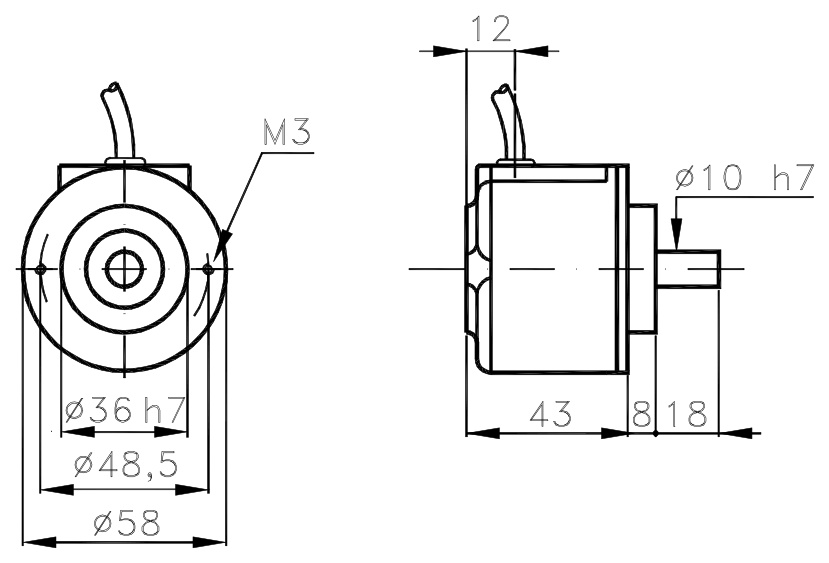

Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental |
| Base Material | Composite Material |
| Cover | Valox 420 |
| Weight | 145 g |
| Axis | Stainless Steel Ø 10 mm |
| Maximum Axle Load/Radiation. | 3 kg |
| IP Outbound Side (°) | 54 (standard) / 65 (tank) |
| Maximum Continuous RPM | 6000 rpm |
| Starting Torque | 18 gcm |
| Bearing Life | 1.5 x 10^9 turns |
| Impact Resistance | 50 G x 11ms |
| Vibration Resistance | 12 G (10 ÷ 2000 Hz) |
| Operating Temperature | 0 ÷ 60 °C |
| Number of Impulses/Revolution | 1 ÷ 1024 |
| Maximum Frequency | 60 kHz |
