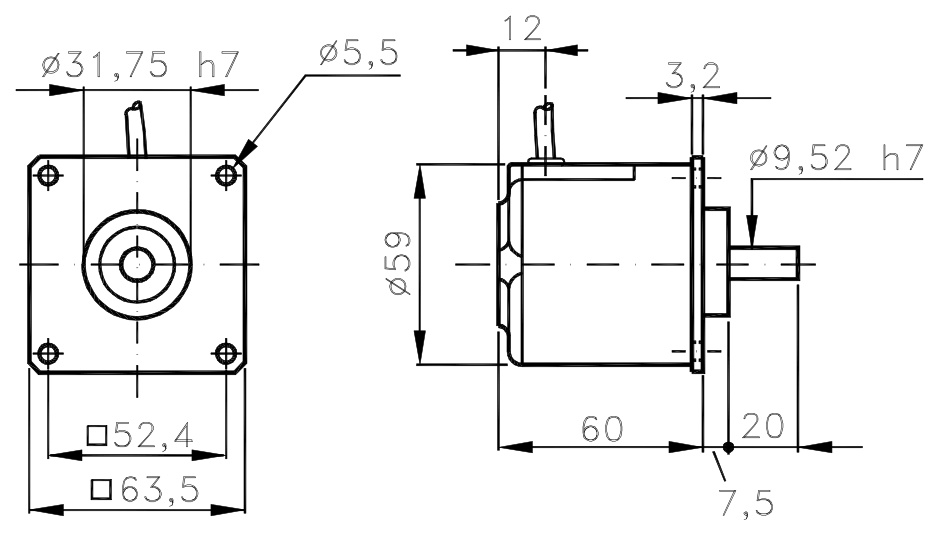

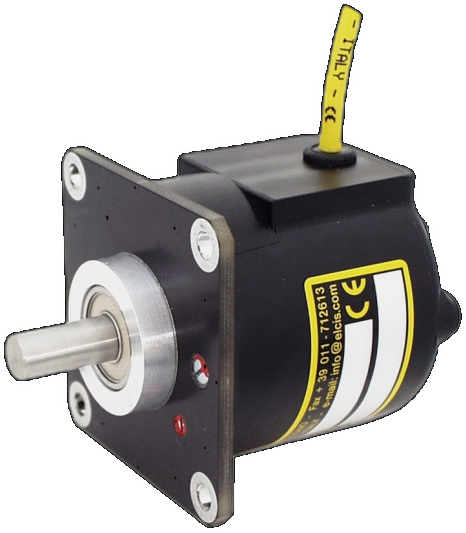

Incremental Encoder Kit and Low Cost I/63QJ
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder Kit Low Cost, SENSORS
In industrial environments where budget is a critical factor, the need for a reliable solution without compromising technical quality is constant. This low-cost Incremental Encoder Kit I/63QJ overcomes the economic constraints in precision measurement applications, providing a solid foundation for budget-constrained projects.
The technical solution integrates a composite base and a Valox 420 cover for structural durability. The system uses a Ø9.52 mm stainless steel shaft and an LED light source with a lifespan of over 100,000 hours, guaranteeing a maximum frequency response of 60 kHz.
The robust construction supports radial loads up to 3 kg and features sealed bearings designed to withstand shocks of 50G x 11ms and vibration of 12G. This Incremental Encoder Kit and Low Cost I/63QJ is available in guemisa.es.
- Composite base and Valox 420 lid for industrial durability.
- Stainless steel shaft Ø9.52 mm with long-life sealed bearings.
- Impact resistance of 50G x 11ms and vibration of 12G across a wide frequency range.
- LED light source with over 100,000 hours of lifespan for continuous operation.
Technical Frequently Asked Questions
How does the I/63QJ differ from the I/E6 model?
The I/63QJ belongs to the Kit and Low Cost Series with a patented size 25 square flange, while the I/E6 is a larger model. The I/63QJ is distinguished by its reduced weight of 155g and its focus on applications where price is a determining factor without sacrificing product quality.
What alignment precautions are required for the I/63QJ shaft?
The Ø9.52 mm stainless steel shaft must be installed ensuring concentricity to prevent radial loads exceeding 3 kg. It is essential to maintain operating temperatures between 0 and 60 °C to preserve the integrity of the sealed bearings and their service life of 1.5 x 10^9 revolutions.
What connectors and output options are available for the I/63QJ?
The model offers NPN, Push-Pull PRO, and Line Driver (26LS31 or 88C30) configurations. Cable end connectors such as VM, TM, VL, or TL can be selected, as well as terminal blocks for fixed installations, adapting to the specific needs of each industrial application.
Properties
| Feature | Specification |
|---|---|
| Base Material | Compound |
| Cover Material | Valox 420 |
| Weight | 155 g |
| Axis | Stainless Steel Ø 9.52 mm |
| Maximum Axle/Radial Load | 3 kg |
| Max. Continuous RPM | 6000 rpm |
| Starting Torque | 18 gcm (30 gcm under torque) |
| Bearing Life | 1.5 x 10^9 turns |
| Impact Resistance | 50 G x 11 ms |
| Vibration Resistance | 12 G (10 ÷ 2000 Hz) |
| Operating Temp. | 0 ÷ 60 °C |
| Storage Temp. | -30 to 85 °C |
| Pulses/Revolution | 1 ÷ 1024 PPR |
| Maximum Frequency | 60 kHz |
| IP protection | IP54/IP65 |
