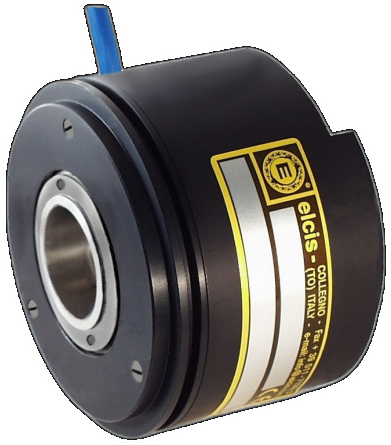

High Resolution Incremental Encoder I/90CD
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, High Resolution Incremental Encoder, SENSORS
El ELCIS 90CD (I/90CD) es un encoder incremental de alta resolución de Ø90 mm, con acoplamiento tangencial y eje hueco pasante de Ø20 H6. Está indicado para mesas divisoras y aplicaciones similares, con eje y base de acero inoxidable.

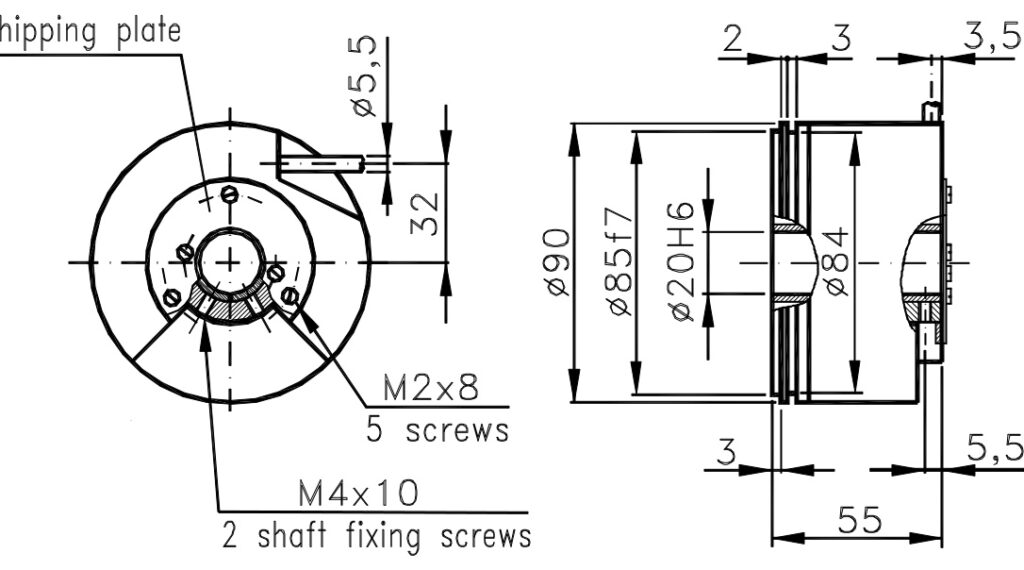

Housed in a Ø90 mm enclosure with an Ø85 f7 centering point, the I/90CD delivers 9,000 to 900,000 pulses per revolution with an angular accuracy of ±5 arcseconds and a maximum frequency of 160 to 2200 kHz with interpolation. It supports either digital differential N outputs (driver 26LS31) or analog Y outputs (1 Vpp sinusoidal).
Eje hueco pasante en acero inoxidable de Ø20 H6, velocidad máxima de 600 rpm continuas, par de arranque de 5000 gcm, protección IP64 en el lado del eje y salida de cable radial IP65 con un peso de de 1100 g.
- Resolution of 9000 to 900000 pulses per revolution with angular precision of ±5 arc seconds.
- Response frequency of 160 to 2200 kHz with interpolation.
- Tangential coupling integrated, with max. axial compensation of ±0.01 mm and radial of ±0.02 mm.
- hollow through shaft of stainless steel of Ø20 H6 and stainless steel base (1100 g).
Technical Frequently Asked Questions
What angular accuracy and resolution does the I/90CD encoder offer?
It offers an angular accuracy of ±5 arc seconds and 9000 to 900000 pulses per revolution with interpolation.
What type of shaft and mechanical materials does it incorporate?
It features a Ø20 H6 stainless steel through-shaft, stainless steel base and anodized aluminum cover, with integrated tangential coupling.
What signals and electronic output options does it support?
It supports differential digital N outputs (driver 26LS31) or analog Y outputs (1 Vpp sinusoidal), with a 5 V ±5 % power supply.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Ø90 mm |
| Weight | 1100 g |
| Axis | Hollow through shaft Ø20 H6 stainless steel |
| Electric | |
| Precision | ±5 arc seconds |
| Exit-side protection | According to connection: IP65 (see technical specifications) |
| Feeding | 5 V ±5 % (see technical sheet) |
| Max. consumption. | 120 mA (I) · 150 mA (N) |
| Impulses per lap | 9000 to 900000 |
| Max frequency. | 160–2200 kHz (with interpolation) |
| Protection and environment | |
| axle-side protection | IP64 standard |
| max. continuous RPM | 600 (intermittent: +30 %) |
| Impact resistance | 30 G × 5 ms |
| Vibration resistance | 10 G (55–2000 Hz) |
| Operating temperature | 0 … +70 °C |
| Storage Temp. | -30 … +85 °C |
| Reference | Configuration |
|---|---|
| I/90CD-10000-5-BZ-N-CV-RI90CD100005BZNCVR | 10000 impulsos/vuelta · 5 V ±5 % · bidireccional + cero · Driver 26LS31 · Cable de 1 m · salida radial |
| I/90CD-9000-5-BZ-N-CV-RI90CD90005BZNCVR | 9000 impulsos/vuelta · 5 V ±5 % · bidireccional + cero · Driver 26LS31 · Cable de 1 m · salida radial |
| I/90CD-10000-5-BZ-Y-CV-RI90CD100005BZYCVR | 10000 impulsos/vuelta · 5 V ±5 % · bidireccional + cero · Sinusoidal 1 Vpp · Cable de 1 m · salida radial |
| I/90CD-9000-5-BZ-Y-CV-RI90CD90005BZYCVR | 9000 impulsos/vuelta · 5 V ±5 % · bidireccional + cero · Sinusoidal 1 Vpp · Cable de 1 m · salida radial |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
