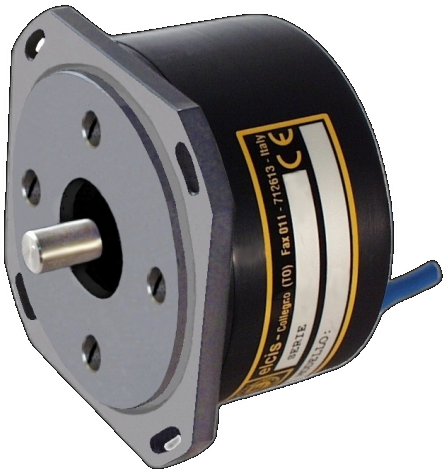

High Resolution Incremental Encoder I/100D
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, High Resolution Incremental Encoder, SENSORS
In dividing table and high-precision machinery applications, standard encoders often fail due to mechanical vibrations or electrical interference. The ELCIS I/100D series addresses this critical need with a robust construction designed for demanding industrial environments where shaft stability is vital.
The model incorporates a stainless steel base and an anodized aluminum cover that minimize wear. The push-pull output with a 26LS31 line driver significantly reduces electrical noise, allowing maximum frequencies up to 2200 kHz and a bearing life of 1.5 x 10^9 revolutions.
Built to withstand 30 G shocks and 10 G vibrations in the 55–2000 Hz range, this encoder operates in temperatures from 0 to 50 °C. Available with multiple connection configurations and IP65 protection, it can be purchased directly from guemisa.es.
- Stainless steel base for maximum mechanical durability in demanding industrial environments.
- Push-Pull output with Line Driver 26LS31 reduces electrical noise and improves interference immunity.
- Bearing life of 1.5 x 10^9 revolutions ensures continuous operation without frequent maintenance.
- Vibration resistance of 10 G in the range of 55 to 2000 Hz ensures stability in mobile machinery.
Technical Frequently Asked Questions
How does the I/100D model differ from the I/E6?
The I/100D stands out for its stainless steel base and its configuration specifically designed for dividing tables, while the I/E6 typically has a different base. Furthermore, the I/100D offers configurable resolution up to 900,000 pulses/revolution with optimized push-pull output.
What alignment precautions does the I/100D shaft require?
The shaft is made of stainless steel, Ø10mm, and must be perfectly centered to prevent misalignment that could affect the sinusoidal signal. Secure mounting is recommended to maintain mechanical integrity under the 5000 gcm starting torque specification.
What connectors and output options are available for the I/100D?
The model supports multiple connection configurations such as a 1m CV cable, VD terminal block, or VH connector. A RAD option is also available for custom connections, ensuring flexibility in system integration.

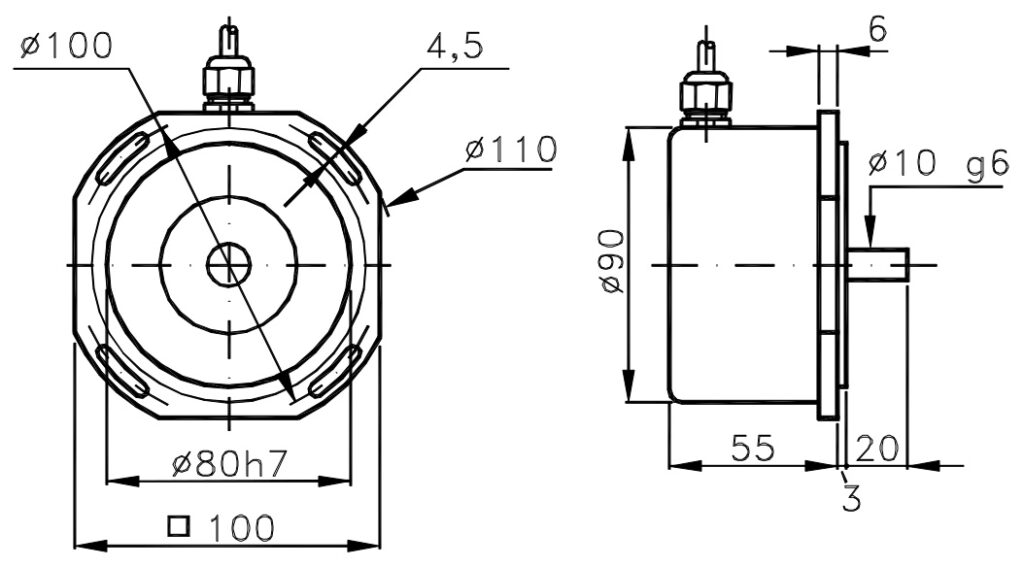

Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental Encoder |
| Main Application | Dividing Tables / High Precision |
| Base Material | Stainless steel |
| Cover Material | Anodized Aluminum |
| Weight | 700 g |
| Axis | Stainless Steel Ø10mm |
| Max. Continuous RPM | 500 rpm |
| Starting Torque | 5000 gcm |
| Bearing Life | 1.5 x 10^9 turns |
| Impact Resistance | 30 G x 5ms |
| Vibration Resistance | 10 G (55 ÷ 2000 Hz) |
| Temperament Function | 0 ÷ 50 °C |
| Number of Impulses/Revolution | 18,000 ÷ 900,000 ppr |
| Maximum Frequency | 160 ÷ 2200 kHz |
| Light Source | LED (>= 100,000 h) |
