DPF-MICO2TH32

Hollow shaft Ø10 H7 (opc. Ø6, Ø8, Ø9.52) | Internal star coupling | SSI serial interface (RS422) | Resolution up to 16 bits per revolution | Gray or Binary codes | Power supply 10–30 VDC | IP65 protection (IP66 sealed shaft) | Step frequency 800 kHz | Weight 1400 g | Max. radial/axial load 70/110 N

NCTE Rotary Torque Sensor | 7300 Series | 3,000 Nm | 1,200 RPM

16-channel 0/10V statically switched multiplexer

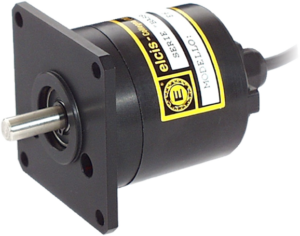

Metal housing Ø40 mm | Aluminum base and steel cover | Solid shaft Ø6 mm (8 mm option) | Front centering Ø20 mm | Front mounting on circle Ø30 mm | 10 to 2500 pulses/revolution | Max. frequency response 180 kHz | Power supply 5 VDC or 12–24 VDC | IP52 / IP65 protection | Lightweight 120 g

Expander of 1 digital signal to 16 digital outputs. Expandable to 32, 48, 64, etc. for DIGIMUX16

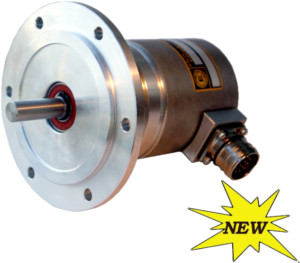

Aluminum housing with 63 mm square flange | DeviceNet (D2) interface | Programmable baud rate | Max. resolution 16 bits/revolution · 30 bits in 16384 revolutions | Binary output code | Power supply 10–30 V DC, max. consumption 2.5 W | Ø10 h8 shaft in stainless steel | Max. radial/axial load 40/110 N | IP64 protection on shaft (IP66 sealed) | Operating temperature -40 … +85 °C

CONDUCTIVE ELECTRODES WITH BUILT-IN AMPLIFIER

Wall humidity and temperature sensor

Stainless steel pinion with integrated preload | All-metal construction | Resolution from 0.001 to 1 mm | 13 or 16 tooth pinion | 1 to 10,000 pulses/revolution | Max. frequency 40 kHz (100 kHz optional) | Power supply 5–30 V | IP64 shaft side (IP66 sealed) | 4,000 rpm continuous | Weight 280 g

Hollow shaft H7 from Ø12 to Ø16 mm | Torque or pivot support | Housing Ø104 mm | 100 to 2048 pulses/revolution | Max. frequency 120 kHz | Power supply 5–30 V | Operating temp. -20 … +85 °C | IP65 shaft side (IP66 sealed) | 6000 rpm continuous | ATEX 3 · CE Ex II 3GD
