Absolute Encoder Fieldbus A/9115C

Budget-friendly price Request a quote
CANopen (C2) or fiber optic (CF) | B10 flange, Ø11 h7 shaft | 16 bit; 30 bit in 16384 turns | Up to 1 Mbaud | 10–30 V DC | IP65 shaft (IP66 sealed)

The ELCIS 9115C (A/9115C) is a CANopen absolute encoder, single-turn and multi-turn (single-rotation and multi-rotation) with B10 flange and Ø11 shaft.

The A/9115C is a single-turn or multi-turn absolute encoder with a CANopen (C2) or fiber optic CAN (CF) interface and a CAN transceiver compliant with ISO 11898, with a transmission speed of up to 1 Mbaud. It allows selection of 4096, 8192, 16384, 32768, or 65536 steps per revolution and 1, 4096, or 16384 revolutions, with a maximum of 30 bits in binary code. Two LEDs indicate the status.

Built with an aluminum housing and a Ø11 h7 stainless steel shaft (others available upon request), it supports a radial/axial load of 180 N. It has IP65 protection on the shaft side (IP66 in the sealed version), withstands impacts of 30 G and vibrations of 10 G, and operates from -40 to +85 °C.

  • Flange B10 and stainless steel shaft Ø11 h7.
  • Interface CANopen until 1 Mbaud, also via fiber optics (CF).
  • Resolution of up to 16 bit per turn and 30 bit in 16384 turns.
  • CAN transceiver according to ISO 11898 and 2 LED of state.

Technical Frequently Asked Questions

What resolutions and laps does the A/9115C allow you to configure?

It allows you to choose 4096, 8192, 16384, 32768 or 65536 steps per revolution and 1, 4096 or 16384 revolutions, with a maximum resolution of 30 bits at 16384 revolutions.

What parameters are programmable in the CANopen interface?

Direction of rotation (complement), resolution, preset value, cams, 2 limit switches, speed, baud rate and CAN identifier; transmission mode polled, cyclic, sync or cos.

What connections are available?

IP65 Connection Cover (3PG); IP65 Connection Cover with LED (3PG-D); IP65 Connection Cover with 2 Cables (2M20); IP65 5-Pin Round Connector (1BW); Two IP65 5-Pin Round Connectors (2BW); Fiber Optic Connector (1HW).

Properties

FeatureSpecification
Mechanics
HousingAluminum (customizable upon request)
Weight1800 g single turn · 1900 g multiturn
AxisØ11 h7 stainless steel (others available upon request)
max radial/axial load.180 N
Electric
Exit-side protectionIP65 according to connection
Power supply / max. consumption.10–30 V DC · 2.5 W
LSB pitch frequency800 kHz
Exit codeBinary
Division accuracy±½ LSB (<13 bit) ±2 LSB (13–16 bit)
Max resolution.16 bit/turn · 30 bits in 16384 turns
InterfaceCANopen / CAN (C2) · optical fiber (CF) · max. 1 Mbaud
Protection and environment
axle-side protectionIP65 standard · IP66 sealed
max. continuous RPM6000 standard · 3000 sealed (intermittent: +30 %)
Impact/vibration resistance30 G (11 ms) 10 G (10–1000 Hz)
Operating/storage temperature-40 … +85 °C / -40 … +85 °C
ReferenceConfiguration
A/9115C-12-12-11-B-C2-0-3PGA9115C121211BC203PG4096 steps/rev. · Turns: 4096 · Standard Ø11 mm shaft · Binary · CANopen / CAN · Connection cover · IP65
Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference.

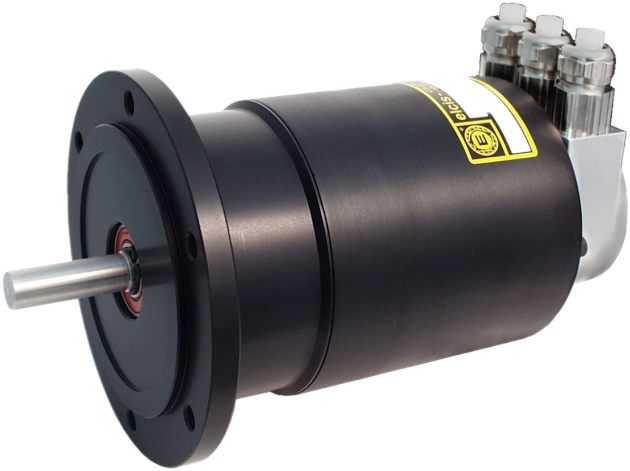

ELCIS A/9115C absolute fieldbus encoder

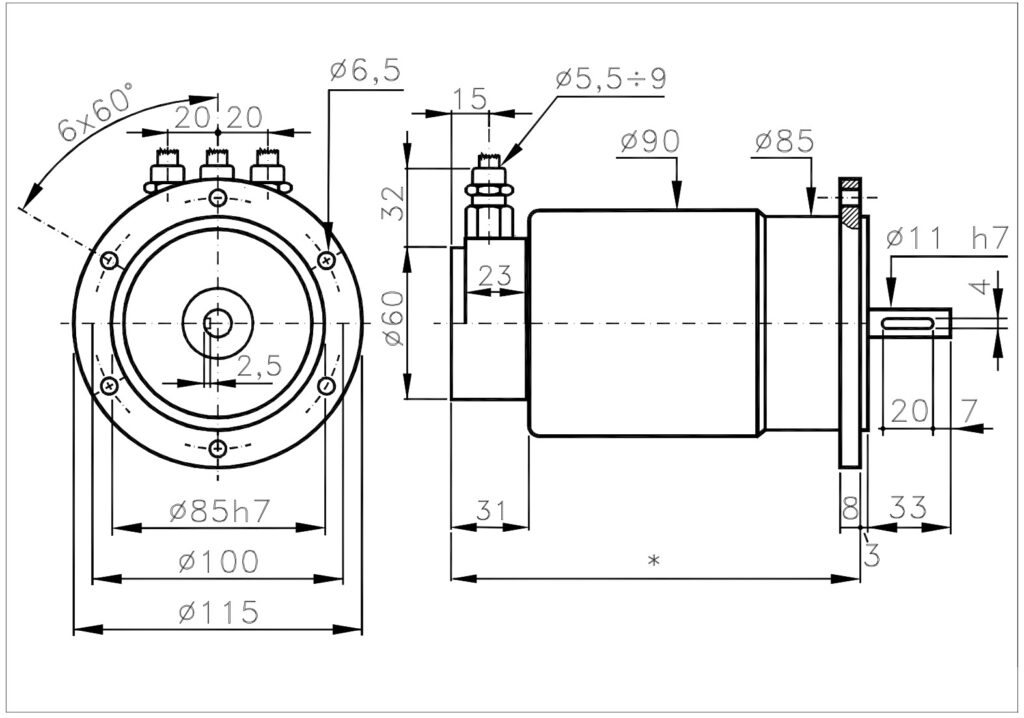

Dimensional drawing of the ELCIS A/9115C absolute fieldbus encoder
