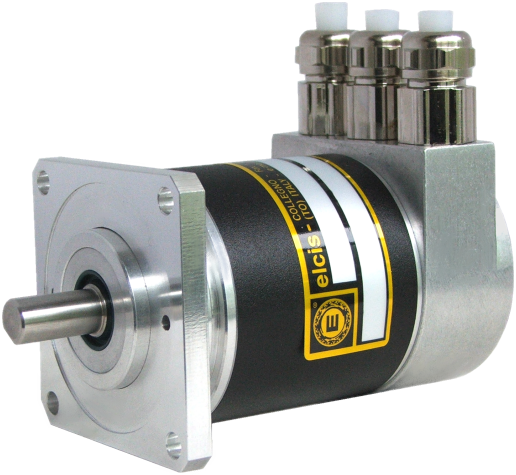

A/963D Absolute Fieldbus Encoder
- Manufacturer: ELCIS Encoder
- Category: Encoder, Absolute Encoder, Absolute Encoder Fieldbus, SENSORS
In industrial environments that require a compact absolute encoder on a DeviceNet network, the A/963D mounts with a standard metal housing and square flange, and offers high resolution with a very good price/performance ratio.
The A/963D is a single-turn or multi-turn absolute encoder with a DeviceNet interface and a CAN transceiver compliant with ISO 11898, featuring a programmable transmission speed. It allows selection of 4096, 8192, 16384, 32768, or 65536 steps per revolution and 1, 4096, or 16384 revolutions, with a maximum of 30 bits in binary code. Two LEDs indicate the status.

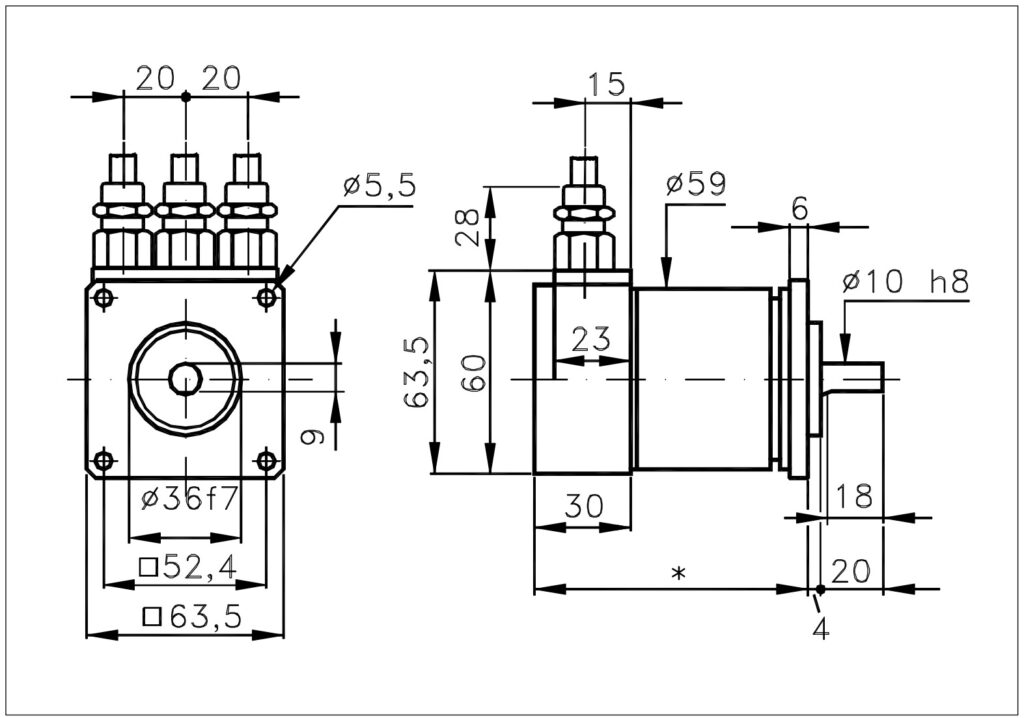

Constructed with an aluminum housing and a 63 mm square flange, with a Ø10 h8 stainless steel shaft, it supports radial and axial loads of 40 and 110 N. It features IP64 protection on the shaft side (IP66 in the sealed version), withstands 30 G impacts and 10 G vibrations, and operates from -40 to +85 °C. Available in guemisa.es.
- Interface DeviceNet with programmable transmission speed.
- Resolution of up to 16 bit per turn and 30 bit in 16384 turns.
- CAN transceiver according to ISO 11898 and 2 LED of state.
- Nutrition 10–30 V DC with maximum consumption of 2.5 W.
Technical Frequently Asked Questions
What resolutions and lap times can the A/963D be configured for?
It allows you to choose 4096, 8192, 16384, 32768 or 65536 steps per revolution and 1, 4096 or 16384 revolutions, with a maximum resolution of 30 bits at 16384 revolutions.
What parameters are programmable in the DeviceNet interface?
Direction of rotation (complement), resolution and preset value; transmission mode polled, cyclic or cos.
What connections are available?
IP65 Connection Cover (3PG); IP65 Stainless Steel Connection Cover (3PG-VA); IP65 2-Wire Connection Cover (2M20); IP65 5-Pin Round Connector (1BW).
Properties
| Feature | Specification |
|---|---|
| Housing | Aluminum · 63 mm square flange (custom options available upon request) |
| Weight | 550 g single turn · 600 g multiturn |
| Axis | Ø10 h8 stainless steel |
| max radial/axial load. | 40 / 110 N |
| Exit-side protection | IP65 depending on the connection |
| axle-side protection | IP64 standard · IP66 sealed |
| max. continuous RPM | 6000 standard · 3000 sealed (intermittent: +30 %) |
| Impact/vibration resistance | 30G (11ms) 10G (10–1000Hz) |
| Power supply / max. consumption. | 10–30 V DC · 2.5 W |
| LSB pitch frequency | 800 kHz |
| Operating/storage temperature | -40 … +85 °C / -40 … +85 °C |
| Exit code | Binary |
| Division accuracy | ±½ LSB (<13 bit) · ±2 LSB (13–16 bit) |
| Max resolution. | 16 bits/turn · 30 bits in 16384 turns |
| Interface | DeviceNet (D2) · programmable speed |
