SKL
HIGH temperature transducer
- Manufacturer: DPF Sensors
- Category: Pressure, SENSORS
Suitable for high temperature hydraulic processes
Properties
 | 0…1 bar to 0…2000 bar |
|---|---|
| -40…180°C medium temperature |
| 0.5 % accuracy |
| Output signal 4…20 mA, 0…10 Vdc, 0.5..4.5 Vdc, 1…5 Vdc |
| Absolute or relative pressure. |
| 1/4″ Gas thread. |
Other products
Inductive Transducer | 1,000 N·m | 20,000 RPM Limit | 101.5 mm PCD Flange | Class 0.02% | Inertia 0.0033 kg·m²
LVDT probe | Travels 2, 5, 10 and 20 mm | Repeatability 0.15 µm | Clamping Ø8 h6 | Ball guide | External electronics

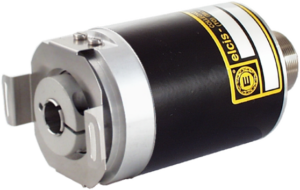

Resolution up to 65536 steps/revolution (16-bit) | Up to 4096 revolutions (12-bit) | SSI interface with preset · Gray or Binary | Sine/Cosine output 1024 ppr or RS422 up to 16384 ppr | Power supply 10–30 V · max. consumption 200 mA | Housing Ø58 mm | Spindle Ø10 h7 stainless steel | Spindle side protection IP64 (IP66 sealed) | Max. continuous speed 6000 rpm (3000 rpm sealed) | Operating temperature -20…+85 °C

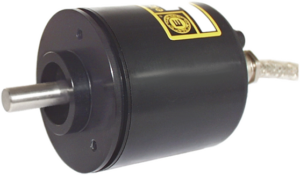

Square flange | Anodized aluminum drive | 100 pulses/revolution standard | Mechanical step interlock | 1 to 2500 pulses/revolution with clutch | 5–30 V power supply | NPN, PNP, push-pull and driver outputs | IP65 shaft side | Starting torque 0.15 Nm | Weight 900 g
Industrial pH electrode, 0–12 pH, double PTFE junction, polymer gel, PVDF body, DL connection and 3/4″ NPT mounting. Up to 100 °C and 10 bar.
Precision tilt sensor with ranges from ±1…90º, 2 axes, output signal 4-20mA / 0-5 Vdc / RS485 / CanBus, ACCURACY: ±0.005º, RESOLUTION: 0.001º

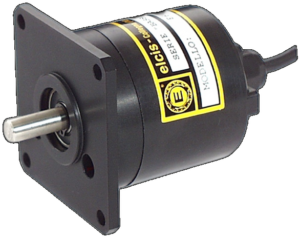

Square flange 44×44 mm | Front centering Ø20 h7 | Resolution from 8 to 2048 pulses/rotation | Bidirectional output with zero (BZ) | Up to 12000 rpm continuous with low torque bearings (B) | Ø6 h7 stainless steel shaft | IP66 on the shaft side (standard) | Electronic drivers: 26LS31, ET7272 and NPN | Shock resistance: 100 G (6 ms) | Power supply: 5 V, 8÷24 V, 18÷28 V, 10÷30 V or 5÷30 V

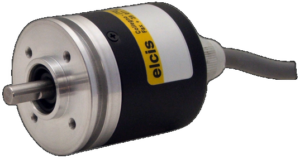

Servo-type flange Ø41.5 mm | Front centering Ø34.92 h7 | Resolution from 8 to 2048 pulses/rotation | Bidirectional output with zero (BZ) | 6000 rpm continuous (12000 with option B) | Ø6.35 h7 stainless steel shaft | IP64 / IP66 sealed protection (Z) | Line Driver 26LS31, ET7272 and NPN electronics | Impact resistance 100 G | Power supply 5 V, 8÷24 V, 10÷30 V or 5÷30 V
