RV1854 Incremental Optical Linear Encoder
- Manufacturer: ELCIS Encoder
- Category: Displacement, Optical Linear Encoders, SENSORS, Linear Transducers
The ELCIS RV1854 is an 18×54 mm incremental optical linear encoder (glass optical scale) with a resolution of 0.5 to 5 µm and an accuracy of ±10 µm. It is an optical linear detector with a photo-etched chrome-plated graduated glass measuring scale (20 µm step), available in various sizes up to a maximum reading length of 2440 mm.

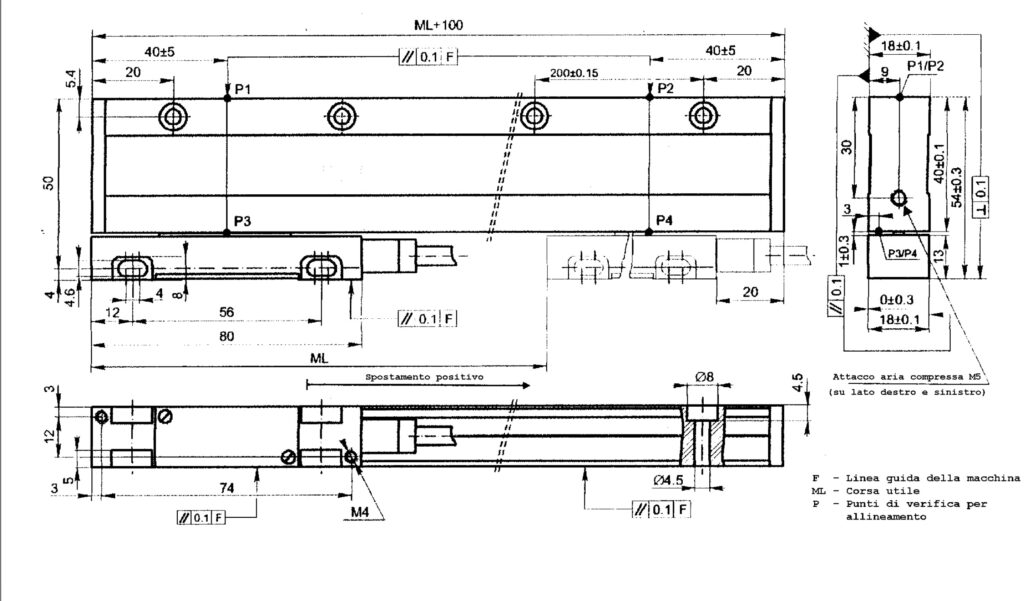

It measures 18×54 mm and has an anodized aluminum cover, and is suitable for multi-axis machine tools, lathes, milling machines, etc. The scale is made of special glass with a coefficient of expansion similar to that of machine tool beds, and the sliding detector head has a special device to maintain parallelism with the glass scale.
Order codes: resolution (05) 0.5 µm with x4 multiplication, (1) 1 µm, (5) 5 µm; electronics (N) driver 26LS31 (connector VD – 9c), 20 mA; power supply (5) 5 V ±5 %; version BZ; options (P) compressed air connection, (5) accuracy ±5 µm and (X) custom option. Manufacturer example: L / RV1854 / 500 / 5 / BZ / N / 5;
- Glass scale with photo-etched chrome 20 µm step.
- Careers from 70 mm to 2440 mm and reading speed up to 60 m/min.
- Resolution of 5 µm, 1 µm and 0.5 µm (with multiplication) x4and accuracy of ±10 µm (option. ±5 µm).
- Protection IP53 standard e IP64 with compressed air (option P).
- Light source LED and push-pull photodiode sensors; power supply 5 V ±5 %, max. 120 mA.
Technical Frequently Asked Questions
What are the dimensions and stroke of the RV1854 glass optical rule?
Its dimensions are 18×54 mm and the standard stroke ranges from 70 mm to 2440 mm.
What resolutions and output electronics does it have?
Resolutions of 5 µm, 1 µm, and 0.5 µm (the latter with x4 multiplication). The N electronics are a 26LS31 driver (connector VD – 9c) rated at 20 mA, with VD output (line driver).
What level of protection does it have?
The standard protection is IP53; with compressed air (option P) it is IP64.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 0,4 kg + 1 kg/m (head+transducer) |
| Standard stroke | 70 to 2440 mm |
| Casing / Profile | Anodized aluminum (section 18×54 mm) |
| Electric | |
| Accuracy and resolution | ± 10 µm (opt. ± 5 µm) · 5, 1, 0.5 µm (0.5 with multix4) |
| Food and consumption | 5 V ±5 % · max. consumption 120mA |
| Max frequency. | 50 kHz · 500 kHz (x10 interpolation) |
| Protection and environment | |
| Protection | IP53 standard · IP64 with compressed air (P) |
| Max read speed. | 60 m/min max. (maximum intermittent value: +30 % above the continuous maximum) |
| Impact and vibration | ≤ 10 G (11 ms) · ≤ 3 G (40–2000 Hz) |
| Operating/storage temperature | 0 … +50 °C -20 … +70 °C |
| Other features | |
| Scale and reading | Special glass · Photogravure chrome (20 µm pitch) |
| Detector head | Mobile with special parallelism guidance |
| Starting force | < 3 N |
| Reference points (zeros) | 1 at the beginning and 1 at the end (others upon request) |
| Output / Connection | YOU (line driver) · Driver 26LS31 (VD – 9c connector), 20 mA |
| Reference | Configuration |
|---|---|
| L/RV1854-70-5-BZ-N-5LRV1854705BZN5 | 70 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-270-5-BZ-N-5LRV18542705BZN5 | 270 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-620-5-BZ-N-5LRV18546205BZN5 | 620 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-1020-5-BZ-N-5LRV185410205BZN5 | 1020 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-1440-5-BZ-N-5LRV185414405BZN5 | 1440 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-1840-5-BZ-N-5LRV185418405BZN5 | stroke 1840 mm · 5 V ±5 % · version BZ · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-120-5-BZ-N-5LRV18541205BZN5 | 120 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-320-5-BZ-N-5LRV18543205BZN5 | 320 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-720-5-BZ-N-5LRV18547205BZN5 | 720 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| L/RV1854-1140-5-BZ-N-5LRV185411405BZN5 | 1140 mm stroke · 5 V ±5 % · BZ version · Driver 26LS31 (connector VD · 9c) · 5 µm |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
