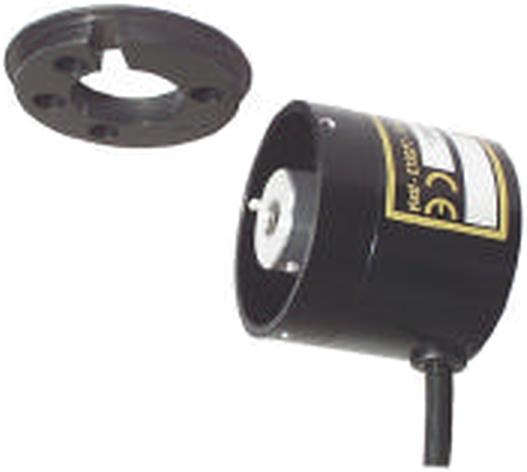

Incremental Encoder for I/46P Motors
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS
El ELCIS 46P (I/46P) es un encoder incremental miniatura de Ø46,5 mm para eje pasante, con acoplamiento helicoidal interno y de 1 a 2540 impulsos por vuelta. Puede instalarse directamente en motores, girar sobre la brida de montaje y alinear el «cero eléctrico» con el «cero mecánico».
The maximum compensation of the coupling is axial ±0.15 mm, radial ±0.15 mm and angular ±3°. The base and cover are made of anodized aluminum and the through shaft, made of Ergal, is Ø4 to Ø8 mm; it weighs 95 g.
Ofrece de 1 a 2540 impulsos por vuelta con frecuencia máx. de 60 kHz (75 kHz con la opción R y 100 kHz con la opción V) y electrónicas NPN, PNP, push-pull, TTL y line driver 26LS31 o 88C30.
- Internal helical coupling: max. axial compensation ±0.15 mm, radial compensation ±0.15 mm and angular compensation ±3°.
- Zero alignmentThe encoder can rotate on the mounting flange to align the electrical zero with the mechanical zero.
- Ergal through shaft: Ø4, Ø6 or Ø8 mm H7 (Ø n under consultation), with a weight of 95 g.
- Frequency options: 60 kHz standard, 75 kHz (option R) or 100 kHz (option V).
Technical Frequently Asked Questions
How is the zero aligned on the I/46P model?
The encoder can rotate on the mounting flange, allowing the electrical zero to be aligned with the mechanical zero.
What resolutions and frequency does the I/46P encoder offer?
From 1 to 2540 pulses per revolution, with a maximum frequency of 60 kHz (75 kHz with option R and 100 kHz with option V).
What are the weight and dimensions of the I/46P encoder?
Ø46.5 mm and 95 g. The base and lid are made of anodized aluminum.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 95 g |
| Axis | Eje pasante de Ergal Ø4, Ø6 u Ø8 mm H7 (Ø n bajo consulta) (personalizable bajo pedido) |
| max. axial/radial load. | 0,5 kg |
| Maximum coupling compensation | Axial ±0.15 mm, radial ±0.15 mm, angular ±3° |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Exit-side protection | According to connection (IP65 cable, IP00 terminal box) |
| Feeding | 5÷30 V (according to the power code) |
| Max. consumption. | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Impulses per lap | 1 to 2540 |
| Max frequency. | 60 kHz (75 or 100 kHz optional) |
| Protection and environment | |
| axle-side protection | IP53 |
| max. continuous RPM | 6000 rpm (Intermittent max. RPM: Continuous max. RPM + 30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Reference | Configuration |
|---|---|
| I/46P6-20-1828-M-CV-R-01I46P6201828MCVR01 | eje Ø 6 mm · 20 impulsos/vuelta · 18 ÷ 28 V · monodireccional · NPN estándar · Cable radial IP65 · salida radial |
| I/46P8-10-18285-BZ-N-CV-R-01I46P81018285BZNCVR01 | eje Ø 8 mm · 10 impulsos/vuelta · 18 ÷ 28/5 V · bidireccional con cero · Driver 26LS31 · Cable radial IP65 · salida radial |
| I/46P8-2250-1828-BZ-B-CV-R-01I46P822501828BZBCVR01 | eje Ø 8 mm · 2250 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull pro · Cable radial IP65 · salida radial |
| I/46P8-250-5-B-CV-R-01I46P82505BCVR01 | eje Ø 8 mm · 250 impulsos/vuelta · 5 V ±5 % · bidireccional · NPN estándar · Cable radial IP65 · salida radial |
| I/46P8-2540-5-B-T-CV-RI46P825405BTCVR | eje Ø 8 mm · 2540 impulsos/vuelta · 5 V ±5 % · bidireccional · TTL 7404 · Cable radial (1 m) IP65 · salida radial |
| I/46P8-256-1828-B-B-CV-RI46P82561828BBCVR | eje Ø 8 mm · 256 impulsos/vuelta · 18 ÷ 28 V · bidireccional · Push-pull pro · Cable radial (1 m) IP65 · salida radial |
| I/X46P6-125-1828-BZ-B-CV-R-07IX46P61251828BZBCVR07 | opciones personalizadas · eje Ø 6 mm · 125 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull pro · Cable radial IP65 · salida radial |
| I/X46P6-140-1828-BZ-B-CV-R-07IX46P61401828BZBCVR07 | opciones personalizadas · eje Ø 6 mm · 140 impulsos/vuelta · 18 ÷ 28 V · bidireccional con cero · Push-pull pro · Cable radial IP65 · salida radial |
| I/X46P8-256-1828-B-B-CV-R-01IX46P82561828BBCVR01 | opciones personalizadas · eje Ø 8 mm · 256 impulsos/vuelta · 18 ÷ 28 V · bidireccional · Push-pull pro · Cable radial IP65 · salida radial |
