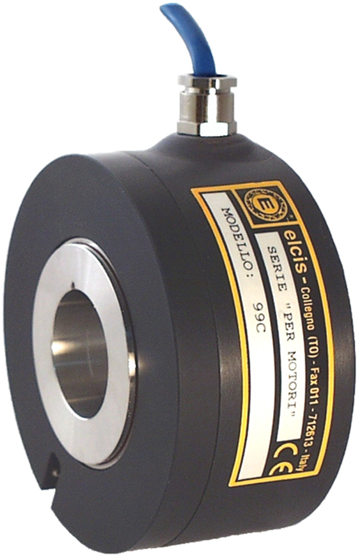

Incremental Encoder for I/99C Motors
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS
The I/99C Incremental Motor Encoder addresses the need for precise measurement in medium and heavy-duty industrial environments, where mechanical robustness takes precedence over compact size. Its all-metal design ensures durability under constant vibration and significant radial loads without compromising the integrity of the through-shaft.
The technical solution integrates an anodized aluminum housing with a built-in tangential joint, allowing for angular compensation of ±2° and radial compensation of ±0.05 mm. It supports maximum frequencies up to 100 kHz and offers NPN, PNP, or Push-Pull Pro output configurations for direct integration into standard line controllers.
Constructed from stainless steel and with strict radial load tolerances of 15 kg, it operates stably between 0 and 70 °C, resisting impacts of 50G. This Incremental Motor Encoder is available in guemisa.es.

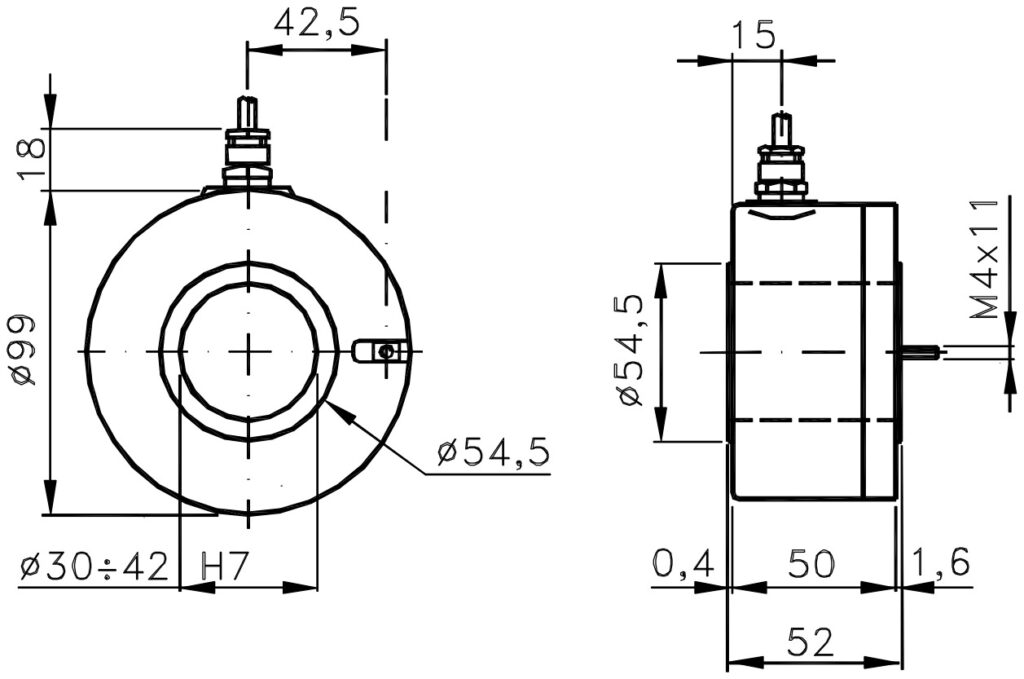

- Anodized metal housing for medium-heavy applications with through shaft Ø30÷42 mm.
- It supports up to 15 kg of radial and axial load with angular compensation of ±2°.
- Maximum operating frequency of 100 kHz with configurable pulses from 1 to 5000 PPR.
- Vibration resistance of 12G and impact resistance of 50G, guaranteeing high MTTFd in harsh environments.
Technical Frequently Asked Questions
How does the I/99C model differ from the I/58M model of the same series?
The I/99C features a metal housing for medium-to-heavy applications, while the I/58M is typically lighter. Both share a through-shaft, but the 99C supports radial loads up to 15 kg and offers greater resistance to 12 G vibrations compared to plastic versions.
What alignment precautions are required for the I/99C shaft during assembly?
The encoder requires precise alignment within angular offset tolerances of ±2° and radial offset tolerances of ±0.05 mm to avoid counting errors. It is recommended to use the built-in tangential joint to ensure axial adjustment of ±0.2 mm without stressing the stainless steel through-shaft.
What connectors and output options are available for the I/99C?
The model supports terminal blocks or cable end connectors with codes such as VM, TM, or VL. Outputs include NPN, PNP, Push-Pull Pro, and TTL 7404, allowing the signal to be adapted to different electronic controllers without the need for additional external circuitry.
Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental |
| Main Application | Medium-Heavy Industrial |
| Supply Voltage | 5V ±5%, 12V ±5%, 24V ±5% |
| Through Shaft | Stainless Steel Ø30÷42 mm |
| Total Weight | 720 g |
| Maximum Axle/Radial Load | 15 kg |
| Max. Continuous RPM | 1000 rpm |
| Starting Torque | 200 gcm |
| Pulses for Revolution | 1 ÷ 5000 PPR |
| Maximum Frequency | 100 kHz |
| MTTFd Class | High (EN ISO 13849-1) |
| Impact Resistance | 50 G x 11ms |
| Vibration Resistance | 12 G (10 ÷ 2000 Hz) |
| Temperature Range | 0 ÷ 70 °C |
| IP Protection Output | IP65 (Standard) |
