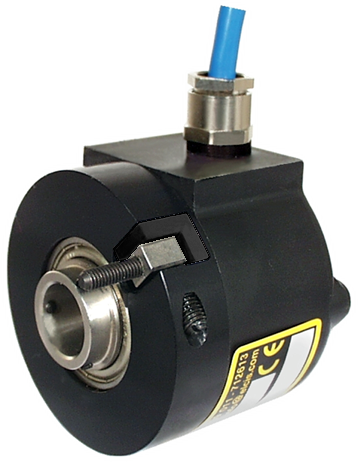

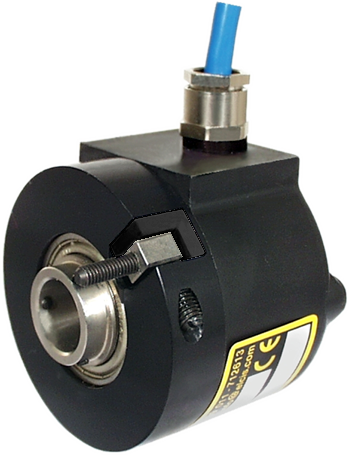

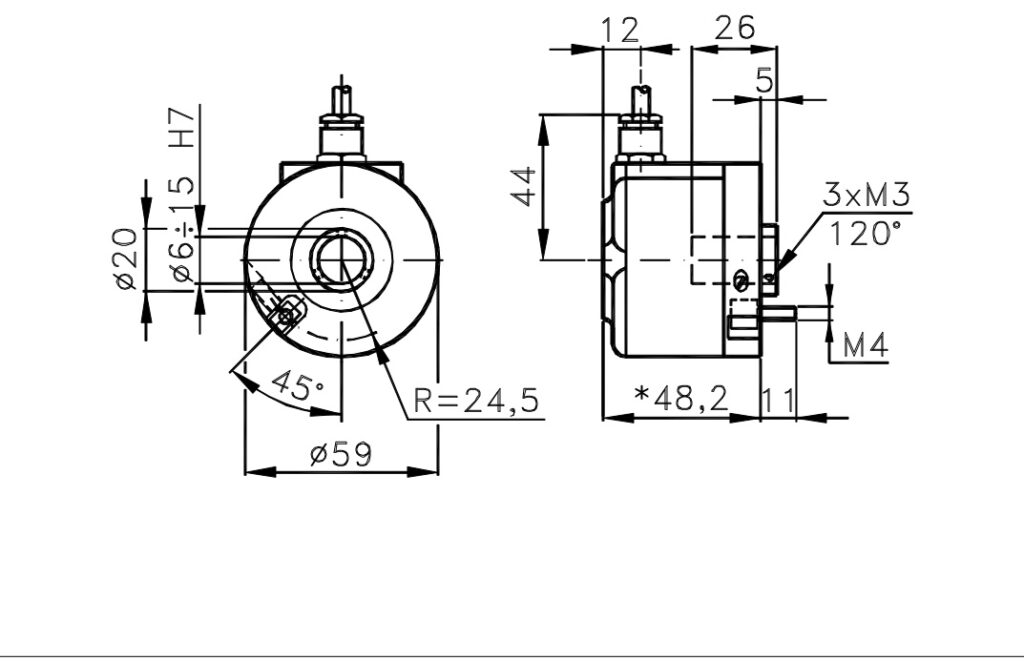

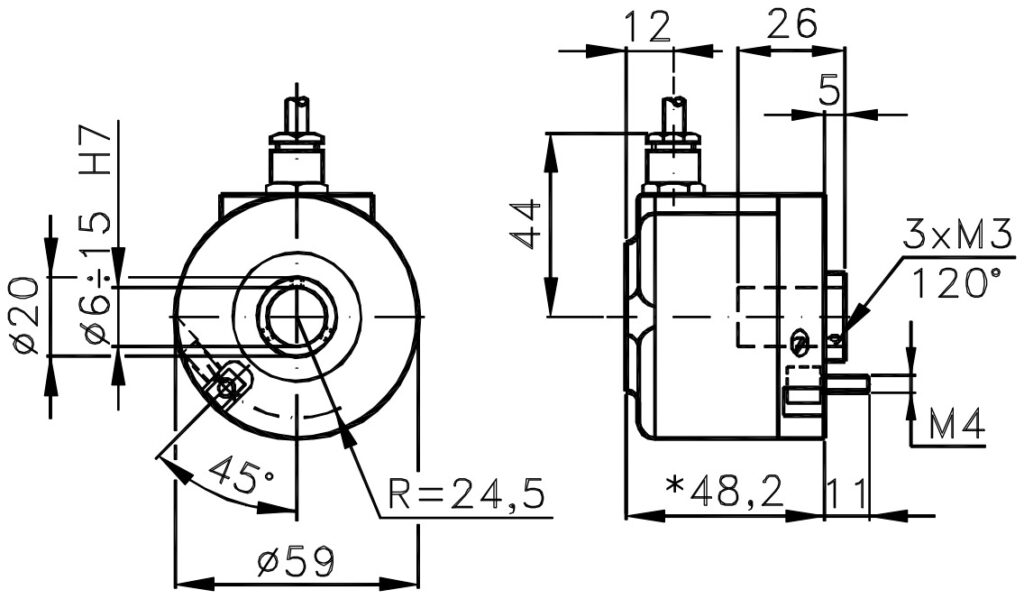

Incremental Encoder for I/59C Motors
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS
The I/59C encoder addresses the need for precise feedback in demanding industrial environments where conventional sensors fail due to vibration or mechanical stress. Its special tangential coupling allows for direct installation on motors without complex external adapters, ensuring immediate mechanical stability.
The construction utilizes an anodized aluminum base and a Valox 420 cover to resist corrosion and continuous wear. The ball bearings withstand up to 1.5 x 10^9 revolutions with a starting torque exceeding 60 gcm, ensuring reliability under heavy duty cycles without degradation of the hollow shaft.
Designed to operate between 0 and 70 °C, it withstands shocks of 50 G and vibrations of 12 G in the 10 to 2000 Hz range. This robustness makes it ideal for heavy machinery and automotive applications where encoder durability is critical. Available in guemisa.es.
- Anodized aluminum base resists prolonged industrial corrosion.
- Valox 420 cover offers superior mechanical protection against impacts.
- Hollow stainless steel shaft allows direct coupling to standard motors.
- Certified bearing life for over one billion revolutions.
Technical Frequently Asked Questions
How does the I/59C differ from the I/58M model?
The I/59C is specifically designed for motors with tangential couplings and hollow shafts, while the I/58M is a standard version for solid shafts. The 59C supports radial loads of up to 6 kg on its hollow shaft, offering greater mechanical robustness for high-vibration applications where the base model is not certified.
What alignment precautions are required for the I/59C shaft?
The hollow shaft allows for axial compensation of ±0.2 mm and radial compensation of ±0.05 mm according to UNI ISO 2768-mk. Maintaining angular alignment within ±1° is crucial to prevent premature wear of the ball bearings during motor start-up.
What connectors and output options are available for the I/59C?
The model supports Push-Pull, NPN, or PNP outputs depending on the electronic code, with wiring options up to 160 kHz. The terminals allow direct connections to terminal boxes (VM, VE) or specific connectors such as VH and VK for IP67 sealed environments, adapting to the existing controller electronics.
Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental Encoder |
| Main Application | Tangentially coupled motors |
| Standard Feeding | 5V ±5% or 12÷30V |
| Base Material | Anodized Aluminum |
| Cover Material | Valox 420 |
| Total Weight | 290 g |
| Hollow Shaft Diameter | Ø 6÷15 mm |
| Axle Material | Hollow Stainless Steel |
| Maximum Radial Load | 6 kg |
| Bearing Life | 1.5 x 10^9 revolutions |
| Minimum Starting Torque | >60 gcm |
| Impact Resistance | 50 G x 11ms |
| Maximum Frequency | 100 kHz (300 option) |
| IP Protection Output | IP65 standard |
| Operating Temperature | 0 ÷ 70 °C |
