Single-turn Absolute Encoder A/7115R
- Manufacturer: ELCIS Encoder
- Category: Encoder, Absolute Encoder, Single-turn Absolute Encoder, SENSORS

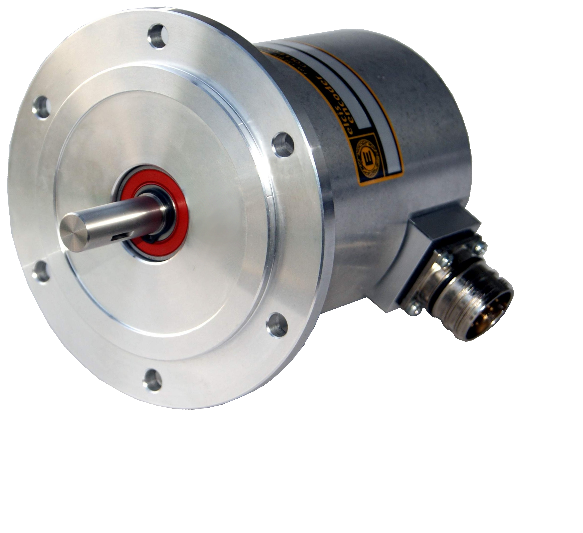

The ELCIS 7115R (A/7115R) is a programmable single-turn absolute encoder of up to 65536 steps (16 bit), with SSI interface and incremental Sin/Cos outputs at 1024 ppr or RS422 up to 16384, in a B10 flanged housing.
As a programmable single-turn absolute encoder, the A/7115R offers up to 65536 (16-bit) resolution per revolution, with SSI serial output (S1 interface with preset) in Gray or Binary code. It also supports an additional Sine/Cos output at 1024 ppr or incremental RS422 output of up to 16384 pulses per revolution, and, with the PR option (max. 8192 div/revolution), allows programming of code, resolution, preset, and address via software through USB or the RS422 interface itself.
With anodized aluminum base and cover and stainless steel shaft Ø11 h7 (up to 8 kg radial/axial load), it withstands impacts of 50 G and vibrations of 12 G, and works between -20 and +85 °C with IP64 protection on the shaft side (IP66 in sealed version).
- Flanged housing B10, base and lid made of anodized aluminum.
- Programmable resolution up to 65536 steps per revolution (16 bit).
- Serial interface SSI with preset, in code Gray either Binary, programmable (option PR) via software through USB or through the interface itself RS422.
- Impact resistance of 50 G (11 ms) already vibrations of 12 G (10–2000 Hz).
Technical Frequently Asked Questions
What connections does the A/7115R support?
1 m cable (CV, IP66) and CL, SL and CH connectors. Radial (R) or axial (–) output.
What is the maximum resolution it offers?
Up to 65536 (16 bit) resolution per revolution, selectable between 1024, 4096, 8192, 16384, 32768 or 65536 divisions per revolution.
How do you program the encoder?
With the PR option (max. 8192 div/revolution), via PC software connected by cable to a USB port that powers the encoder, or via the RS422 interface itself, in ASCII code. The software and cable are supplied upon request.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 1500 g |

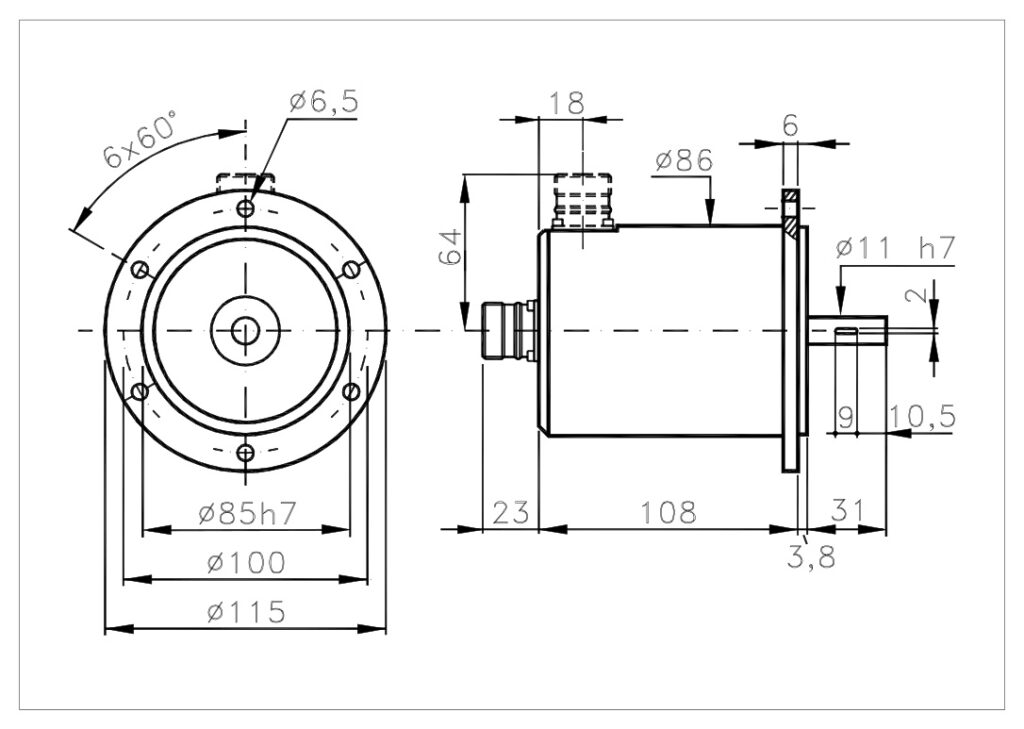

| Flange | B10, Ø115 mm |
| Axis | Ø11 h7 stainless steel (alternatives Ø8, Ø9.52, Ø10, Ø12, Ø12.5 or on request) |
| max radial/axial load. | 8 kg |
| Electric | |
| Exit-side protection | According to connection (CV: IP66) |
| Feeding | 10–30 V |
| Max. consumption. | 200 mA |
| Interface | SSI with preset (S1) |
| Exit codes | Programmable: Gray, Binary |
| Max resolution. | 65536 (16 bit) |
| Protection and environment | |
| axle-side protection | IP64 standard · IP66 sealed |
| max. continuous RPM | 6000 standard · 3000 sealed (intermittent: +30 %) |
| Impact/vibration resistance | 50 G (11 ms) 12 G (10–2000 Hz) |
| Operating/storage temperature | -20 … +85 °C / -30 … +85 °C |
| Other features | |
| Incremental output (optional) | Sin/Cos 1024 ppr or RS422 up to 16384 ppr |
| Reference | Configuration |
|---|---|
| A/7115R-SG-4096-1030-S1-PR-CV-RA7115RSG40961030S1PRCVR | Type: S · Gray · Resolution: 4096 · 10–30 V · Interface: S1 · Interface option: PR · Cable length: 1 m · IP66 · Radial output |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
