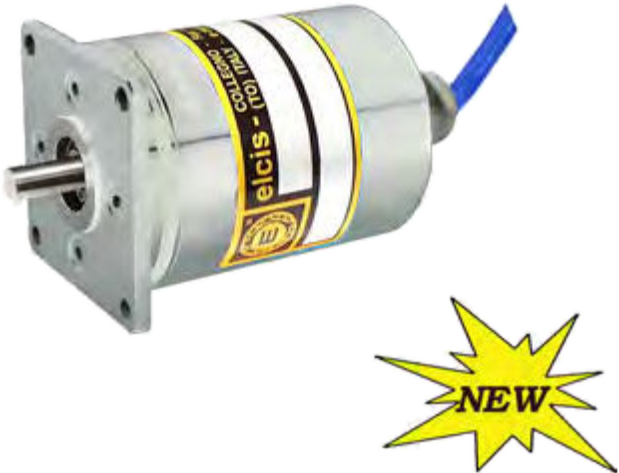

M344Q Absolute Magnetic Encoder
- Manufacturer: ELCIS Encoder
- Category: Encoder, Absolute Encoder, Absolute Magnetic Encoder, SENSORS
Single-turn absolute magnetic encoder with square flange, Ø44 mm housing and 62 mm length, resolution up to 13 bits (8192 steps per revolution). Industrial applications include marine, medical, graphic arts, metalworking, industrial automation and instrumentation.
Output in natural binary code via SSI serial interface with RS422 transmission standard. Max. frequency 500 kHz and max. consumption 35 mA.
Aluminum housing with 44×44 mm square flange, Ø20 h7 centering and Ø6 h7 stainless steel shaft. Maximum continuous speed of 3000 rpm with IP66 on the shaft side and 12000 rpm with low-torque bearings (IP53). Operating temperature from -25 to +85 °C. Available in guemisa.es.
- Technology absolute magnetic single-turn up to 13 bits (8192 steps/turn).
- Fixation by means of 44×44 mm square flange with centering of Ø20 h7.
- 3000 rpm continuous with IP66 on the shaft side; 12000 rpm with low torque bearings (IP53). Impact resistance of 100 G.
- Exit SSI series (RS422) with maximum frequency of 500 kHz.
- Feeding 5 V ±5 %, 5÷30 V either 10-30 V.
Technical Frequently Asked Questions
What type of mechanical fastening does the M344Q model have?
The M344Q model incorporates a 44×44 mm square front flange with Ø20 h7 cylindrical centering and 4 holes of Ø3.5 mm.
What communication interface and data format does the M344Q encoder use?
It uses an SSI serial interface with RS422 transmission standard. The output code is natural binary, and data is transmitted starting from the most significant bit (MSB) using an external clock. Maximum frequency: 500 kHz.
What rotation speed and IP rating options does it offer?
It offers 3000 rpm with IP66 protection as standard and up to 12000 rpm continuous with IP53 protection in its variant B with low torque bearings.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 120 g |
| Axis | Ø6 h7 stainless steel (customizable upon request: shaft and operating temperature) |
| max radial/axial load. | 1 kg |
| Electric | |
| Exit-side protection | IP65 with CV cable |
| Max resolution. | 8192 steps/turn (13 bits) |
| Exit code | Natural binary |
| Max frequency. | 500 kHz |
| Feeding | 5 V ±5 % · 5÷30 V · 10÷30 V |
| Max. consumption. | 35 mA |
| Direction of rotation / mechanical zero | Non-switchable (up/down) · Mechanical zero search: no |
| Interface | SSI Series (RS422) |
| Protection and environment | |
| axle-side protection | IP66 standard · IP53 low torque |
| max. continuous RPM | 3000 standard · 12000 low torque (intermittent: +30 %) |
| Impact/vibration resistance | 100 G (6 ms) · 12 G (10 ÷ 2000 Hz) |
| Operating/storage temperature | -25 … +85 °C / -25 … +125 °C (customizable upon request: shaft and operating temperature) |
