Incremental Encoder Kit and Low Cost I/80QJ
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder Kit Low Cost, SENSORS

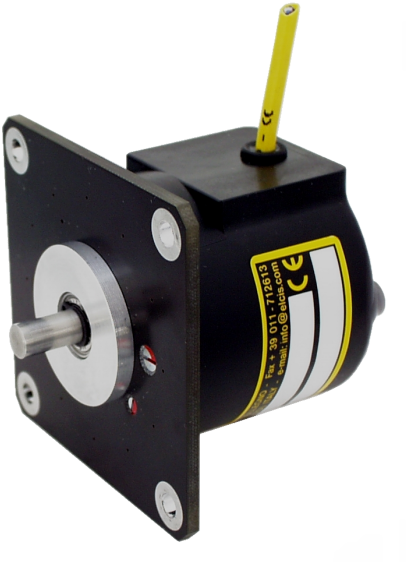

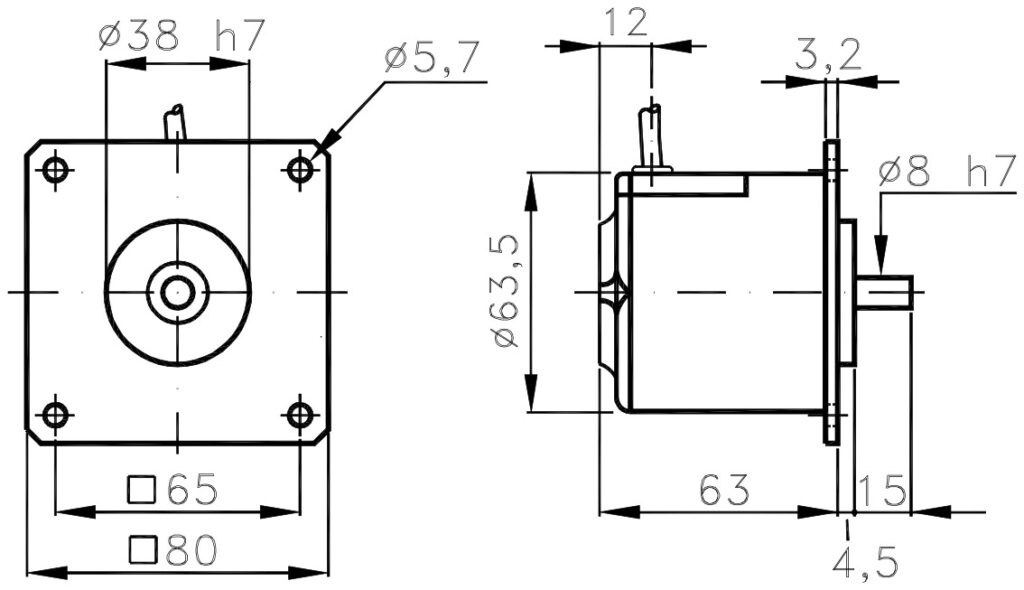

This low-cost Incremental Encoder Kit I/80QJ addresses the critical need to reduce control system costs without sacrificing mechanical reliability. Designed for industrial applications where price is a determining factor, it offers a patented square flange solution that maintains product quality compared to heavier metal alternatives.
The construction uses a composite base and Valox 420 cover to optimize the weight to 185g. The Ø8mm stainless steel shaft supports a maximum radial load of 2kg, while the internal electronics allow maximum frequencies of 60kHz with a standard consumption of 120mA, guaranteeing energy efficiency in demanding environments.
The sealed bearing guarantees a service life of 1.5 x 10^9 revolutions under 12G vibration and 50G impact conditions. Operating between 0–60°C and -30–85°C in storage, this I/80QJ Low-Cost Incremental Encoder Kit is robust for harsh environments. Available in guemisa.es.
- Composite base and Valox 420 lid for industrial durability.
- Stainless steel shaft Ø8mm with sealed bearings.
- Resistant to 12G vibration and 50G x 11ms impact.
- Push-Pull PRO output and Linear Driver 26LS31/88C30 available.
Technical Frequently Asked Questions
How does the I/80QJ differ from the I/E6 model?
The I/80QJ features a composite base and Valox 420 cover, reducing its weight to 185g compared to the metal I/E6. Furthermore, it uses low-torque (option B) or standard bearings, whereas the I/E6 is typically made of anodized aluminum with greater mass for high-inertia applications.
What alignment precautions are required for the I/80QJ shaft?
The Ø8mm stainless steel shaft requires precise alignment to prevent premature wear of the sealed bearings. It is recommended to adhere to UNI ISO 2768-mk tolerances for non-tolerable dimensions and ensure that the starting torque does not exceed the mechanical limits of the selected model.
What connectors and output options are available for the I/80QJ?
The catalog offers NPN, Push-Pull PRO, and 26LS31/88C30 Linear Driver outputs. For physical connection, there are options such as the VD5 (IP65) connector, VH6 (12 pins), or terminal blocks, allowing the Incremental Encoder Kit and Low Cost I/80QJ to be adapted to different wiring architectures.
Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental (PPR) |
| Main Application | Kit and Low Industrial Cost |
| Power supply (Vcc) | 5÷30V DC |
| Shaft (Material and Diameter) | Stainless Steel Ø 8mm |
| Total Weight | 185 g |
| Maximum Axle/Radial Load | 2 kg |
| IP Protection (Outlet Side) | IP65 Tank |
| Maximum Continuous RPM | 6000 RPM |
| Starting Torque (gcm) | 18 gcm |
| Bearing Life | 1.5 x 10^9 Turns |
| Impact Resistance | 50G x 11ms |
| Vibration Resistance | 12 G (10 ÷ 2000 Hz) |
| Operating Temperature | 0 ÷ 60 °C |
| Pulses/Revolution (PPR) | 1 ÷ 1024 PPR |
| Maximum Frequency | 60 kHz |
| Maximum Consumption (mA) | 120 mA (Standard) |
