Dimetix Sensor Accessory Starter Kit

He D-Series Starter Kit This is a technical resource package designed to facilitate the preliminary integration and test bench commissioning of Dimetix laser scanners. In industrial automation environments, before proceeding with final electromechanical mounting on a conveyor belt or heavy gantry, control engineers need to evaluate the equipment's performance, familiarize themselves with its optical response parameters, and configure network protocols (such as RS-422, PROFINET, or EtherNet/IP). This assortment of accessories instantly provides all the necessary elements to assemble a fully operational measurement ecosystem on any technical desktop in a matter of minutes.

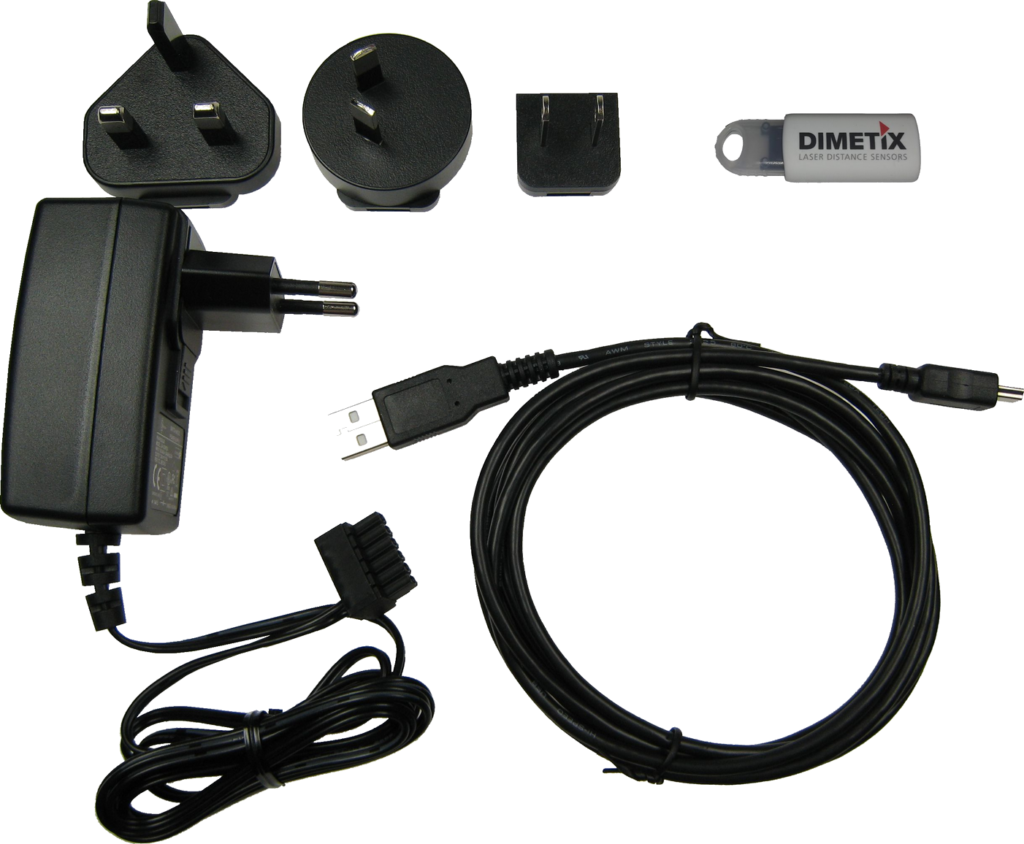

The core functionality of this kit focuses on addressing immediate power and data bridging needs. The package includes a robust universal power transformer, capable of supporting input ranges from 100 to 240 VAC, ensuring the ideal and stable DC power supply required by the Dimetix laser in any laboratory worldwide. By eliminating the need to temporarily splice cables to complex DIN rail industrial power supplies, the integrator can concentrate exclusively on programming, focal topographic reading simulations, and sensor range parameterization from the moment they open the packaging.

For communication with the PLC or local workstation, the Starter Kit provides a reliable and direct physical interface. It includes a two-meter USB converter cable or jumper cable, allowing direct connection of the distance meter's terminal block to the standard data port of any laptop or panel PC. This communication bridge eliminates the initial need to install expensive RS-422 data acquisition cards or network modules in the computer equipment dedicated solely to basic parameterization and reading verification, substantially accelerating the project design phases.

To ensure an optimal learning curve and immediate access to device documentation, the kit includes comprehensive digital support. An original USB flash drive containing the complete Dimetix Utility Software suite is provided. This visual platform allows analysts to view the beam return curve, read diagnostic logs, and adjust the sampling rate without writing any proprietary code. Furthermore, the flash drive centralizes updated datasheets, user manuals, and connection diagrams, making this kit a methodical, educational, and highly practical tool for any B2B engineering department.

Main Features and B2B Technical Performance:

• Pre-assembled kit designed for quick start-up (Plug & Play) of the range of laser sensors using standard PC workstations.
• It provides an independent power source equipped with a universal power transformer tolerant to inputs from 100 to 240 VAC.
• Enables rapid bidirectional data dumping by incorporating a 2-meter long physical USB converter bridge cable industrial grade.
• It allows the programmer engineer to validate distances, test protocols, and set logical thresholds. safely in controlled desktop tests.
• It provides local software support via a USB memory unit that integrates the Dimetix Utility Software for graphical visualization.
• It centralizes document consultation by including the entire main directory in its digital format. original diagrams, manuals and technical data sheets.
