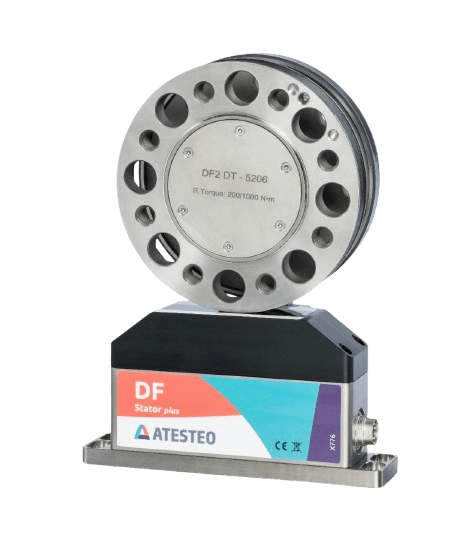

ATESTEO DF3 Plus Mid-Range Torque Transducer
- Manufacturer: CENSORED
- Category: Torque torque, SENSORS
He DF3 Plus System of CENSORED It has been specifically designed to cover the mid-range of power, offering a optimal balance It offers a balance between measurement sensitivity and mechanical strength. It is the preferred choice for test benches for medium-sized engines, gearboxes, and complete drive shafts.
Resistance to Parasitic Loads
Its optimized construction allows it to withstand considerable parasitic loads, such as bending moments and axial forces, without compromising the accuracy of the torque measurement. This eliminates the need for complex couplings in many installations, simplifying the test bench design.
In addition, the system has options for IP65 protection, This ensures its reliable operation even in dirty industrial environments or environments with fluids present, typical in durability tests.
Properties
| Nominal Range | 1 kN·m … 10 kN·m |
| Precision | Class 0.05 |
| Maximum speed | Up to 15,000 rpm |
| Feeding | 24 V DC |
| IP protection | IP54 (Standard) / IP65 (Optional) |
| Signal Outputs | Configurable (Analog, Frequency) |
| Hysteresis / Linearity | < 0.05% |
| Operating Temperature | -20°C … +85°C |
