NCTE Rotary Torque Sensor | 2000/2200 Series | 500Nm | 1,000-5,000 RPM

Manufacturer: NCTE Torque Sensors
Category: Half torque (100-1,000 Nm), Rotary, Torque sensor

The NCTE Series 2000 and 2200 torque transducer measures torque in automatic transmissions and medium-power systems. It features magnetostrictive, non-contact measurement and requires no brushes or maintenance bearings.

Measurement ranges: ±2.5 Nm to ±500 Nm (bidirectional). Operating speeds from 1,000 to 5,000 RPM depending on the variant. Accuracy: ±1%. Digital inductive transmission. 4-20 mA analog output (0-5V optional) and optional digital readout head; optional CAN-Bus. Operating temperature: -30°C to +85°C. Standard IP50 protection. 5-meter cable included. Calibration certificate included.

Modular structure for direct mounting on compact transmission systems. Shaft diameters: Ø9, Ø14, Ø19 and Ø25 mm (2000 Series) and standard ¼» to ¾» (2200 Series). Applications: metrology laboratories, automotive test benches and quality control in industrial production.

Frequently Asked Questions

What is the difference between NCTE Series 2000 and 2200?

The 2000 Series has metric shafts (Ø9, Ø14, Ø19, Ø25 mm) and the 2200 Series uses imperial standards (¼» to ¾»). Both share magnetostrictive technology and torque ranges up to 500 Nm.

Does it include a calibration certificate?

Yes, all NCTE Series 2000 and 2200 transducers include an official NCTE calibration certificate with metrological traceability.

What signal outputs are available?

By default, analog output is 4-20 mA, with an option for 0-5V. CAN-Bus is optional.

Properties

Nominal Range Nm	±2.5 to ±500 Nm (bidirectional)
Maximum speed	1,000-5,000 RPM (depending on the variant)
Precision	±1%
Measurement Principle	Non-contact magnetostrictive
Signal Output	Analog 4-20 mA (0-5V optional)
Cable Included	5 meters
Calibration Certificate	Including
Operating Temperature Range	-30°C to +85°C
Environmental protection	IP50 standard

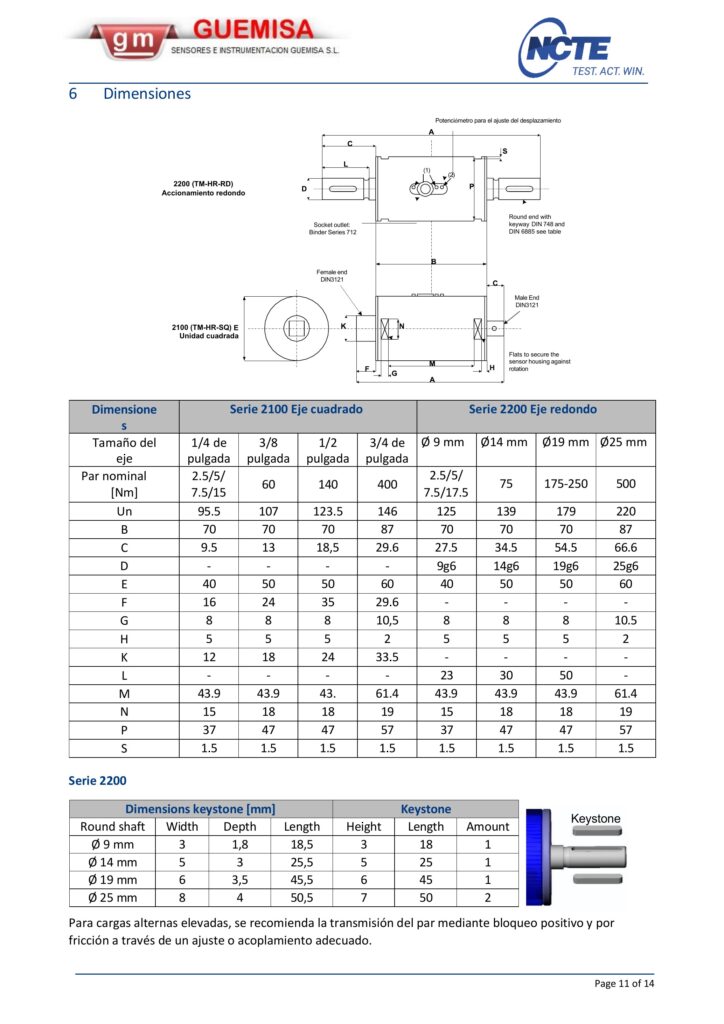

Axis variants	Ø9, Ø14, Ø19, Ø25 mm (2000); ¼» to ¾» (2200)
Digital Outputs	Optional CAN-Bus
