Incremental Encoder for Motors I/72A
Eje hueco Ø10, 12, 14, 15 o 20 mm | Carcasa Ø72 mm | 1 a 25000 imp/vuelta | NPN, PNP, push-pull, driver, 1 Vpp | Alimentación 5–30 V | IP64 eje (IP66 sellado Z) | Compensa ±3 mm axial, ±2°
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS

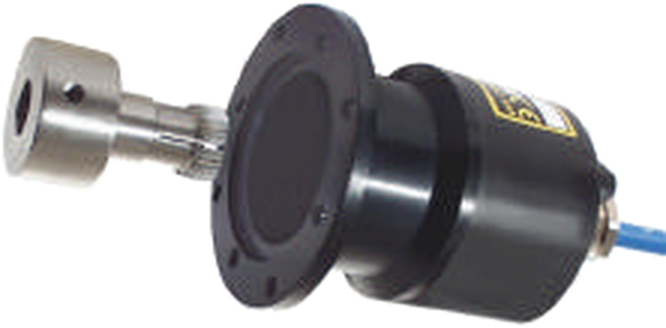

El ELCIS 72A (I/72A) es un encoder incremental de Ø72 mm, con eje hueco de Ø10, 12, 14, 15 o 20 mm y de 1 a 25000 impulsos por vuelta. Tiene las mismas características mecánicas que el modelo 72 (patentado).
It has an anodized aluminum base and a Valox 420 cover, weighs 470 g, and accepts hollow stainless steel shafts of Ø10, Ø12, Ø14, Ø15, and Ø20 mm (Øn available upon request). The maximum coupling compensation is axial ±3 mm, radial ±0.05 mm, and angular ±2°.
Genera de 1 a 25000 impulsos por vuelta con una frecuencia máx. de 100 kHz (300 kHz opcional) y se ofrece con electrónicas NPN, PNP, push-pull, line driver, TTL, discriminador y sinusoidal 1 Vpp, con salida axial o radial por cable o conector, o caja de bornes (IP00). La fuente de luz es un LED con vida ≥ 100000 h.
- Hollow stainless steel shaft: Ø10, Ø12, Ø14, Ø15 and Ø20 mm; others, on request.
- Maximum coupling compensation: axial ±3 mm, radial ±0.05 mm and angular ±2°.
- Resolution: from 1 to 25000 pulses per revolution, at 100 kHz (300 kHz optional).
- Connections: IP65 CV cable, 4 to 12 contact connectors (IP63 to IP67) with axial or radial output, and IP00 terminal box.
Technical Frequently Asked Questions
What differentiates the I/72A model from the 72 model?
According to ELCIS, the I/72A has the same mechanical characteristics as the 72 model (patented), but with a hollow shaft of Ø10÷20 mm.
How much movement can the I/72A compensate for?
The maximum compensation of the coupling is axial ±3 mm, radial ±0.05 mm and angular ±2°.
What resolutions, frequencies, and IP protection does the I/72A support?
From 1 to 25,000 pulses per revolution, with a maximum frequency of 100 kHz (300 kHz optional). On the shaft side, IP64 in the standard version and IP66 sealed (option Z); on the output side, it depends on the connection.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Weight | 470 g |
| Axis | Eje hueco Ø 10÷20 mm en acero inoxidable (personalizable bajo pedido) |
| max. axial/radial load. | 8 kg |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Exit-side protection | Según conexión: cable IP65, conectores IP63 a IP67, caja de bornes IP00 (protección lado salida y lado eje: IP según CEI EN 60529, EN 60529, IEC 529) |
| Feeding | 5÷30 Vcc (according to code) |
| Max. consumption. | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Impulses per lap | 1 to 25000 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP64 estándar / IP66 sellado (opción Z) (protección lado salida y lado eje: IP según CEI EN 60529, EN 60529, IEC 529) |
| max. continuous RPM | 6000 rpm (estándar) / 3000 rpm (sellado, opción Z) (intermitentes: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Working temperature | 0 ÷ +70 °C (customizable upon request) |
| Storage temperature | -30 ÷ +85 °C |
| Reference | Configuration |
|---|---|
| I/72A-1000-5-BZ-N-CVI72A10005BZNCV | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable IP65 (1 m) · salida axial |
| I/72A-1024-5-BZ-N-CVI72A10245BZNCV | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable IP65 (1 m) · salida axial |
| I/72A-500-5-BZ-N-CVI72A5005BZNCV | 500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable IP65 (1 m) · salida axial |
| I/72A-100-5-BZ-N-CVI72A1005BZNCV | 100 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable IP65 (1 m) · salida axial |
| I/72A-2500-5-BZ-N-CVI72A25005BZNCV | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable IP65 (1 m) · salida axial |
| I/72A-2000-5-BZ-N-CVI72A20005BZNCV | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable IP65 (1 m) · salida axial |
| I/72A-1000-824-BZ-B-CVI72A1000824BZBCV | 1000 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-1024-824-BZ-B-CVI72A1024824BZBCV | 1024 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-500-824-BZ-B-CVI72A500824BZBCV | 500 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-100-824-BZ-B-CVI72A100824BZBCV | 100 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2500-824-BZ-B-CVI72A2500824BZBCV | 2500 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2000-824-BZ-B-CVI72A2000824BZBCV | 2000 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-1000-1828-BZ-B-CVI72A10001828BZBCV | 1000 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-1024-1828-BZ-B-CVI72A10241828BZBCV | 1024 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-500-1828-BZ-B-CVI72A5001828BZBCV | 500 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-100-1828-BZ-B-CVI72A1001828BZBCV | 100 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2500-1828-BZ-B-CVI72A25001828BZBCV | 2500 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2000-1828-BZ-B-CVI72A20001828BZBCV | 2000 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-1000-1030-BZ-B-CVI72A10001030BZBCV | 1000 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-1024-1030-BZ-B-CVI72A10241030BZBCV | 1024 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-500-1030-BZ-B-CVI72A5001030BZBCV | 500 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-100-1030-BZ-B-CVI72A1001030BZBCV | 100 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2500-1030-BZ-B-CVI72A25001030BZBCV | 2500 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2000-1030-BZ-B-CVI72A20001030BZBCV | 2000 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-1000-5-BZ-B-CVI72A10005BZBCV | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-1024-5-BZ-B-CVI72A10245BZBCV | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-500-5-BZ-B-CVI72A5005BZBCV | 500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-100-5-BZ-B-CVI72A1005BZBCV | 100 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2500-5-BZ-B-CVI72A25005BZBCV | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| I/72A-2000-5-BZ-B-CVI72A20005BZBCV | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable IP65 (1 m) · salida axial |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
