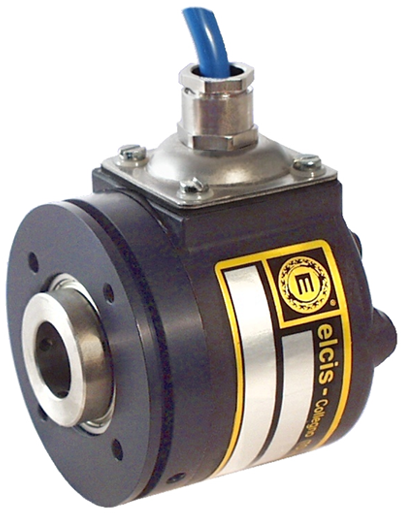

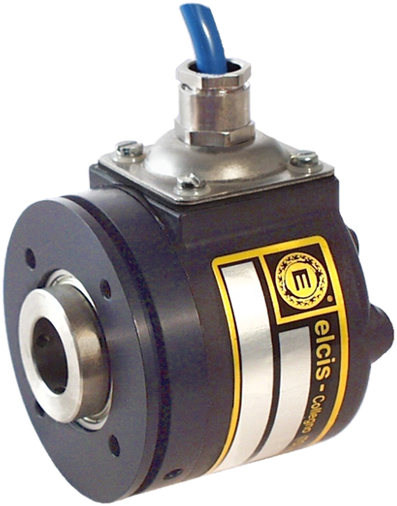

Incremental Encoder for I/59Z Motors
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS
El ELCIS 59Z (I/59Z) es un encoder incremental de Ø59 mm, sin acoplamiento interno, con eje hueco pasante y de 1 a 50000 impulsos por vuelta. Es apto para su uso en motores.

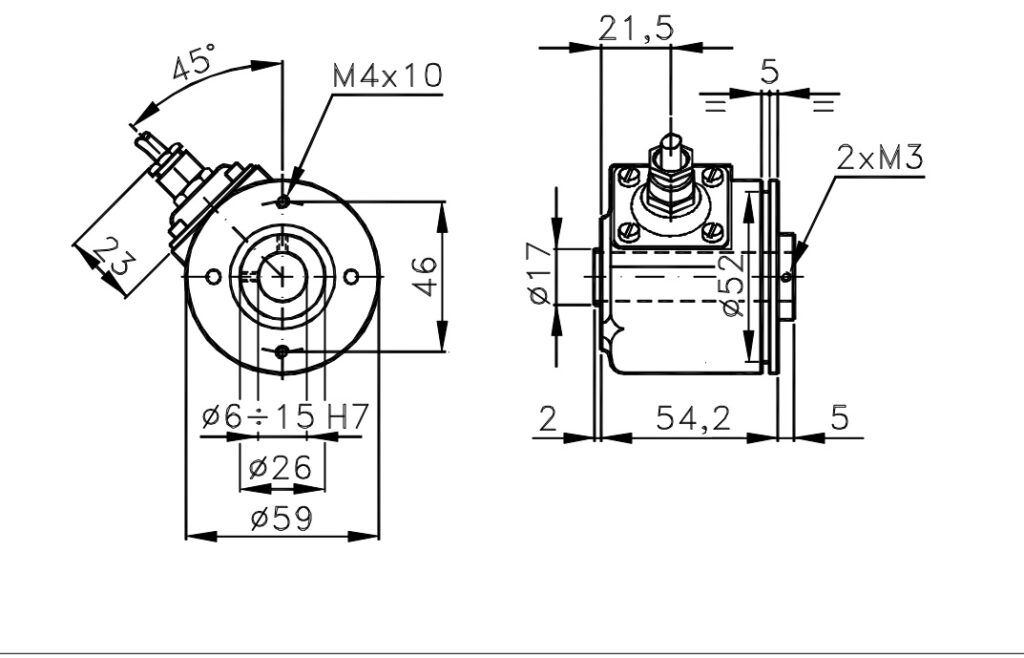

The base is made of anodized aluminum and the cap of Valox 420, weighing 300 g. The through-shaft is made of stainless steel, with diameters of 6, 8, 10, 12, and 15 mm (others available upon request), and supports a maximum radial/axial load of 6 kg. The maximum joint compensation is axial ±0.15 mm, radial ±0.05 mm, and angular ±1°, and the MTTFd is high according to EN ISO 13849-1.
Ofrece de 1 a 50000 impulsos por vuelta con frecuencia máx. de 100 kHz (300 kHz opcional), versiones M, B, BZ y MZ y electrónicas NPN, PNP, push-pull, TTL, line driver (26LS31, 88C30) y sinusoidal 1 Vpp. La protección es IP64 en el lado del eje (IP65 sellado, IP53 bajo par); en el lado de salida, IP65 con cable CV e IP67 con los conectores CH, CH5 y CH6 e IP00 con la caja de bornes, siempre con salida radial. Lleva la marca cULus (archivo E248753).
- Without internal coupling: max. compensation of the axial joint ±0.15 mm, radial ±0.05 mm and angular ±1°.
- High MTTFd according to EN ISO 13849-1.
- Three rolling executions (shaft side): standard IP64 and 6000 rpm, sealed IP65 and 3000 rpm, low torque IP53 and 8000 rpm.
- Electronics: NPN, PNP, push-pull, TTL, line driver and sinusoidal 1 Vpp, from 1 to 50,000 imp/v.
Technical Frequently Asked Questions
Does the I/59Z encoder have an internal coupling?
No. According to ELCIS, it is an encoder without internal coupling, with a through hollow shaft from Ø6 to Ø15 mm; the max. compensation of the joint is axial ±0.15 mm, radial ±0.05 mm and angular ±1°.
How many pulses per revolution and what frequency does the I/59Z support?
From 1 to 50000 pulses per revolution, with a maximum frequency of 100 kHz (300 kHz with option W; 160 kHz with option S).
What is the MTTFd of the I/59Z?
ELCIS gives a high MTTFd according to EN ISO 13849-1.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Anodized aluminum (base) and Valox 420 (lid) |
| Weight | 300 g |
| Axis | Through shaft Ø6÷15 mm (H7) en acero inoxidable (personalizable bajo pedido) |
| max. axial/radial load. | 6 kg |
| Electric | |
| Exit-side protection | According to connection: IP65 cable, IP67 connector, IP00 terminal box |
| Feeding | 5÷30 Vcc (according to the power code) |
| Max. consumption. | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Impulses per lap | 1 to 50000 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP64 standard / IP65 sealed / IP53 low torque |
| max. continuous RPM | 6000 rpm (standard) / 3000 rpm (sealed) / 8000 rpm (low torque) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Operating temperature | 0 ÷ +70 °C (customizable upon request) |
| Storage Temp. | -30 ÷ +85 °C |
| Reference | Configuration |
|---|---|
| I/59Z12-1000-1030-BZ-B-CV-R-01I59Z1210001030BZBCVR01 | eje Ø 12 mm · 1000 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable · IP65 · salida radial · 1 m |
| I/59Z8-720-824-BZ-H-CH-RI59Z8720824BZHCHR | eje Ø 8 mm · 720 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull · Conector 12 c. antihorario · IP67 · salida radial |
