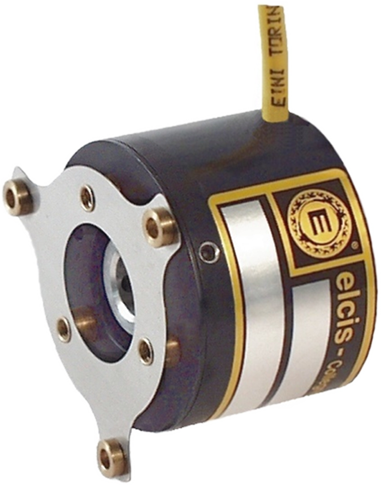

Incremental Encoder for I/59P Motors

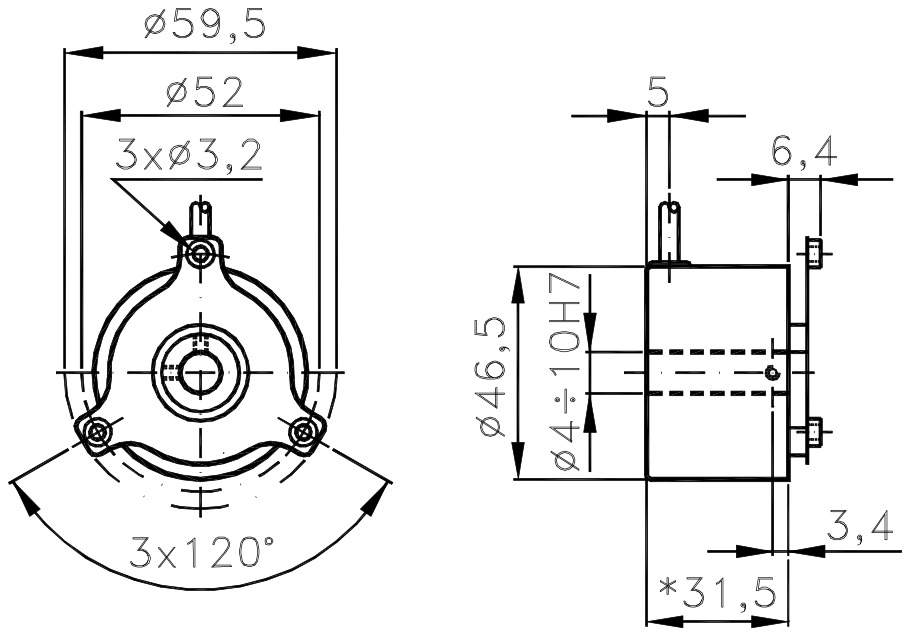

Eje Ø4, 6, 8, 9,52 o 10 mm H7 | Brida Ø59,5 mm | 1 a 2540 imp/vuelta | NPN, PNP, push-pull, line driver | Alimentación 5–30 V | IP53 lado eje | Elástico, alinea cero eléctrico
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Incremental Encoder for Motors, SENSORS
El ELCIS 59P (I/59P) es un encoder incremental de Ø59,5 mm, con acoplamiento elástico y de 1 a 2540 impulsos por vuelta. Su cuerpo gira sobre sí mismo, lo que permite alinear el cero eléctrico con el mecánico.
The base and lid are made of anodized aluminum, weighing 110 g. The shaft is made of stainless steel, with diameters of 4, 6, 8, 9.52 and 10 mm (others available upon request), and supports a maximum radial/axial load of 1 kg. The maximum coupling compensation is axial ±0.15 mm, radial ±0.05 mm and angular ±1°.
Ofrece de 1 a 2540 impulsos por vuelta con frecuencia máx. de 60 kHz (100 kHz opcional), versiones M, B, BZ y MZ y electrónicas NPN, PNP, push-pull, TTL y line driver (26LS31, 88C30). La protección es IP53 en el lado del eje e IP65 en la salida por cable CV, siempre radial; admite 6000 rpm continuas.
- Zero alignmentThe body rotates on its own axis to align the electrical zero with the mechanical zero.
- Elastic coupling: max. axial compensation ±0.15 mm, radial compensation ±0.05 mm and angular compensation ±1°.
- Hollow stainless steel shaft of Ø4, Ø6, Ø8, Ø9.52 or Ø10 mm (H7).
- Electronics: NPN, PNP, push-pull, TTL and 26LS31 or 88C30 line driver, from 1 to 2540 imp/v.
Technical Frequently Asked Questions
What does the rotating body of the I/59P encoder allow?
According to ELCIS, the encoder body rotates on its own axis, allowing the electrical zero to be aligned with the mechanical zero.
What coupling does the I/59P use?
An elastic coupling, with max. axial compensation ±0.15 mm, radial compensation ±0.05 mm and angular compensation ±1°.
What output electronics does the I/59P offer?
Standard NPN, NPN and PNP (also open collector), push-pull, push-pull pro, TTL 7404 and 26LS31 or 88C30 line driver; X is a custom option.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Anodized aluminum (base and lid) |
| Weight | 110 g |
| Axis | Through shaft Ø4÷10 mm (H7) en acero inoxidable (personalizable bajo pedido) |
| max. axial/radial load. | 1 kg |
| Bearing life | 1.5 × 10⁹ revolutions |
| Electric | |
| Exit-side protection | According to connection: CV IP65 cable |
| Feeding | 5÷30 Vcc (according to the power code) |
| Max. consumption. | 120 mA (standard) / 180 mA (line driver) (customizable upon request) |
| Impulses per lap | 1 to 2540 |
| Max frequency. | 60 kHz (100 kHz optional) |
| Protection and environment | |
| axle-side protection | IP53 |
| max. continuous RPM | 6000 rpm |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10 ÷ 2000 Hz) |
| Operating temperature | 0 ÷ +70 °C (customizable upon request) |
| Reference | Configuration |
|---|---|
| I/59P-1000-5-BZ-N-CV-RI59P10005BZNCVR | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable de 1 m · IP65 · salida radial |
| I/59P-1024-5-BZ-N-CV-RI59P10245BZNCVR | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable de 1 m · IP65 · salida radial |
| I/59P-500-5-BZ-N-CV-RI59P5005BZNCVR | 500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable de 1 m · IP65 · salida radial |
| I/59P-100-5-BZ-N-CV-RI59P1005BZNCVR | 100 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable de 1 m · IP65 · salida radial |
| I/59P-2500-5-BZ-N-CV-RI59P25005BZNCVR | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable de 1 m · IP65 · salida radial |
| I/59P-2000-5-BZ-N-CV-RI59P20005BZNCVR | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Driver 26LS31 · Cable de 1 m · IP65 · salida radial |
| I/59P-1000-824-BZ-B-CV-RI59P1000824BZBCVR | 1000 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-1024-824-BZ-B-CV-RI59P1024824BZBCVR | 1024 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-500-824-BZ-B-CV-RI59P500824BZBCVR | 500 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-100-824-BZ-B-CV-RI59P100824BZBCVR | 100 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2500-824-BZ-B-CV-RI59P2500824BZBCVR | 2500 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2000-824-BZ-B-CV-RI59P2000824BZBCVR | 2000 impulsos/vuelta · 8 ÷ 24 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-1000-1828-BZ-B-CV-RI59P10001828BZBCVR | 1000 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-1024-1828-BZ-B-CV-RI59P10241828BZBCVR | 1024 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-500-1828-BZ-B-CV-RI59P5001828BZBCVR | 500 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-100-1828-BZ-B-CV-RI59P1001828BZBCVR | 100 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2500-1828-BZ-B-CV-RI59P25001828BZBCVR | 2500 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2000-1828-BZ-B-CV-RI59P20001828BZBCVR | 2000 impulsos/vuelta · 18 ÷ 28 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-1000-1030-BZ-B-CV-RI59P10001030BZBCVR | 1000 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-1024-1030-BZ-B-CV-RI59P10241030BZBCVR | 1024 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-500-1030-BZ-B-CV-RI59P5001030BZBCVR | 500 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-100-1030-BZ-B-CV-RI59P1001030BZBCVR | 100 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2500-1030-BZ-B-CV-RI59P25001030BZBCVR | 2500 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2000-1030-BZ-B-CV-RI59P20001030BZBCVR | 2000 impulsos/vuelta · 10 ÷ 30 V · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-1000-5-BZ-B-CV-RI59P10005BZBCVR | 1000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-1024-5-BZ-B-CV-RI59P10245BZBCVR | 1024 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-500-5-BZ-B-CV-RI59P5005BZBCVR | 500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-100-5-BZ-B-CV-RI59P1005BZBCVR | 100 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2500-5-BZ-B-CV-RI59P25005BZBCVR | 2500 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| I/59P-2000-5-BZ-B-CV-RI59P20005BZBCVR | 2000 impulsos/vuelta · 5 V ±5 % · bidireccional + impulso cero · Push-pull pro · Cable de 1 m · IP65 · salida radial |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
