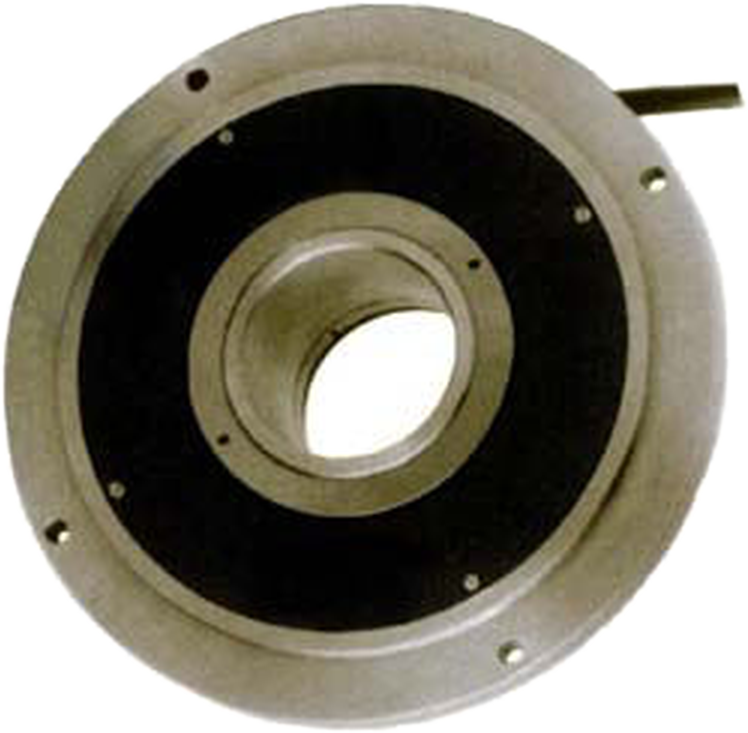

High Resolution Incremental Encoder I/170CD
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, High Resolution Incremental Encoder, SENSORS
The I/170CD High Resolution Incremental Encoder solves accuracy problems in split tables and industrial machinery where mechanical stability is critical. Its design incorporates a special tangential joint that minimizes angular error, ensuring reliable measurements even in environments with severe vibrations or high-frequency repetitive movements.

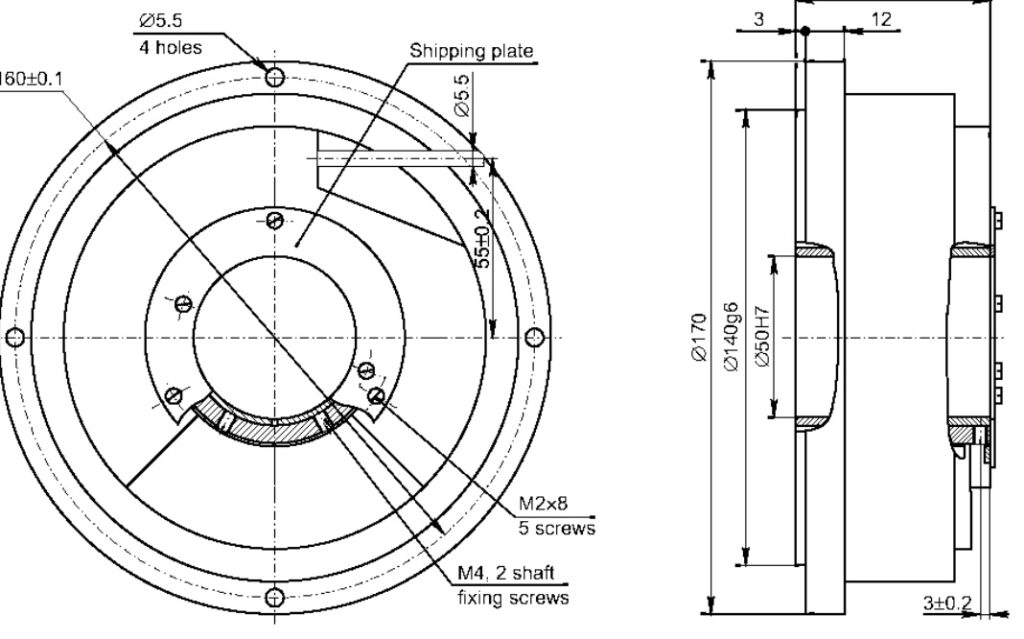

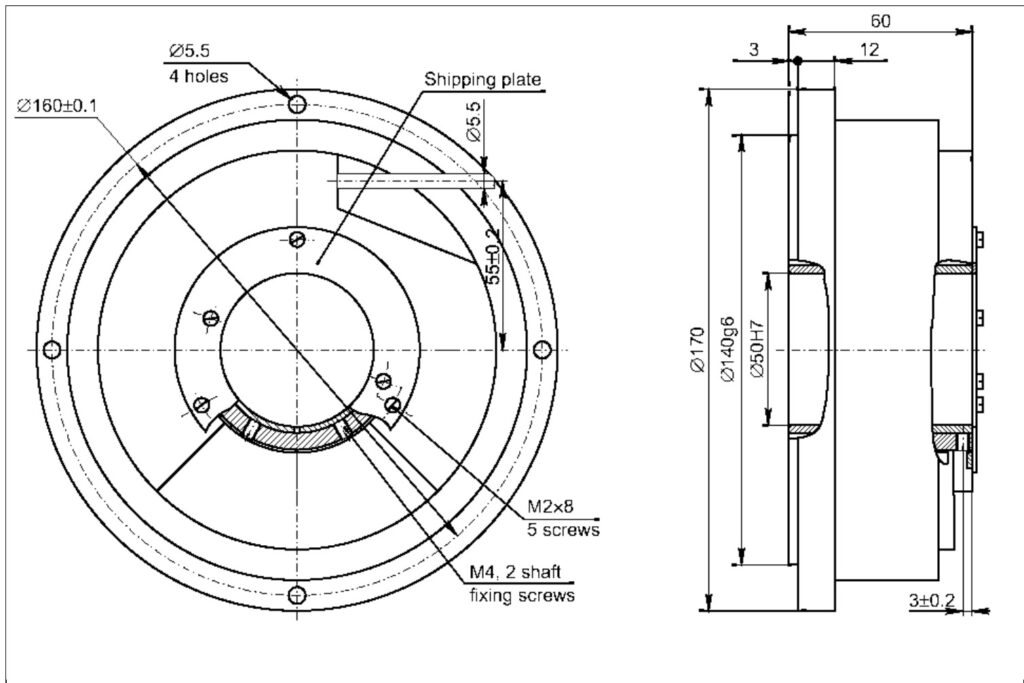

The technical solution integrates an incremental encoder with a stainless steel base and shaft up to Ø50mm, ensuring durability against corrosion and high mechanical loads. The 5000gcm starting torque allows for the driving of heavy loads without loss of synchronization, maintaining signal integrity in high-inertia applications.
Built to UNI EN ISO 9001:2008 standards, it withstands operating temperatures between 0 and 70°C with bearings having a lifespan exceeding 1.5 × 10⁹ revolutions. This I/170CD High Resolution Incremental Encoder is ideal for heavy automation applications and is available in guemisa.es.
- Base and shaft made of stainless steel guarantee corrosion resistance and dimensional stability.
- High precision tangential joint with axial compensation ±0.01mm and radial compensation ±0.05mm.
- Certified mechanical resistance for 30G x 5ms impacts and 10G vibrations across a wide frequency range.
- LED light source with over 100,000 hours of lifespan ensures continuous operation without maintenance.
Technical Frequently Asked Questions
How does the standard version differ from the low-stop 170CD model?
The standard version of the I/170CD High Resolution Incremental Encoder offers a nominal starting torque of 5000gcm, while the low stall option reduces this value for friction-sensitive applications. Both maintain the same maximum resolution of 900,000 PPR and stainless steel base.
What alignment precautions are required for the I/170CD shaft during assembly?
The stainless steel shaft up to Ø50mm requires precise alignment with the machinery to avoid excessive radial loads that could compromise the bearings. The tangential seal allows for axial compensation of ±0.01mm and radial compensation of ±0.05mm, but exceeding these limits reduces the bearing life to 1.5 x 10^9 revolutions.
What connectors and output options are available for the I/170CD?
The model supports 1Vpp sinusoidal outputs with the 26LS31 line driver, compatible with VH (12-pin counterclockwise), VD (9-pin), or RAD terminal blocks. A CV option for direct wiring and bidirectional variants with absolute zero are also available. The line driver is ideal for long distances.
Properties
| Feature | Specification |
|---|---|
| Sensor Type | Incremental Encoder |
| Main Application | Split Tables / Heavy Machinery |
| Base and Axis Materials | Stainless steel |
| Total Weight | 4100 g |
| Maximum Axis Ø | Up to 50 mm (Stainless) |
| Maximum Continuous RPM | 300 rpm |
| Starting Torque | 5000 gcm |
| Bearing Life | 1.5 x 10^9 turns |
| Impact Resistance | 30 G x 5ms |
| Vibration Resistance | 10 G (55 ÷ 2000 Hz) |
| Operating Temperature | 0 ÷ 70 °C |
| Pulses/Revolution (PPR) | 18,000 to 900,000 PPR |
| Maximum Frequency | 2,200 kHz |
| IP protection | IP65 (Outlet) |
