DF plus HS transducer – Atesteo
- Manufacturer: CENSORED
- Category: Torque torque, SENSORS
He DF plus HS torque transducer of CENSORED It establishes itself as the benchmark in instrumentation for the development of electrical transmissions and high-performance test benches. Meticulously designed to meet the challenges of the e-mobility, This device stands out for its ability to operate in extreme regimes of up to 40,000 rpm without compromising accuracy.
Technology for E-Mobility
Its technological core resides in a ultra-low inertia titanium rotor, This allows the system to capture the actual dynamics of the powertrain without introducing parasitic vibrations. In terms of measurement, the system's accuracy is based on a highly sensitive strain gauge bridge (DMS), combined with a fully digital, contactless inductive transmission of power and data.
Lacking bearings and brushes, the sensor offers a simple operation wear and maintenance free, Ideal for continuous test cycles. Its control unit ensures flexible integration, simultaneously providing frequency, analog voltage, and fieldbus (CAN) outputs for modern acquisition systems.
Properties

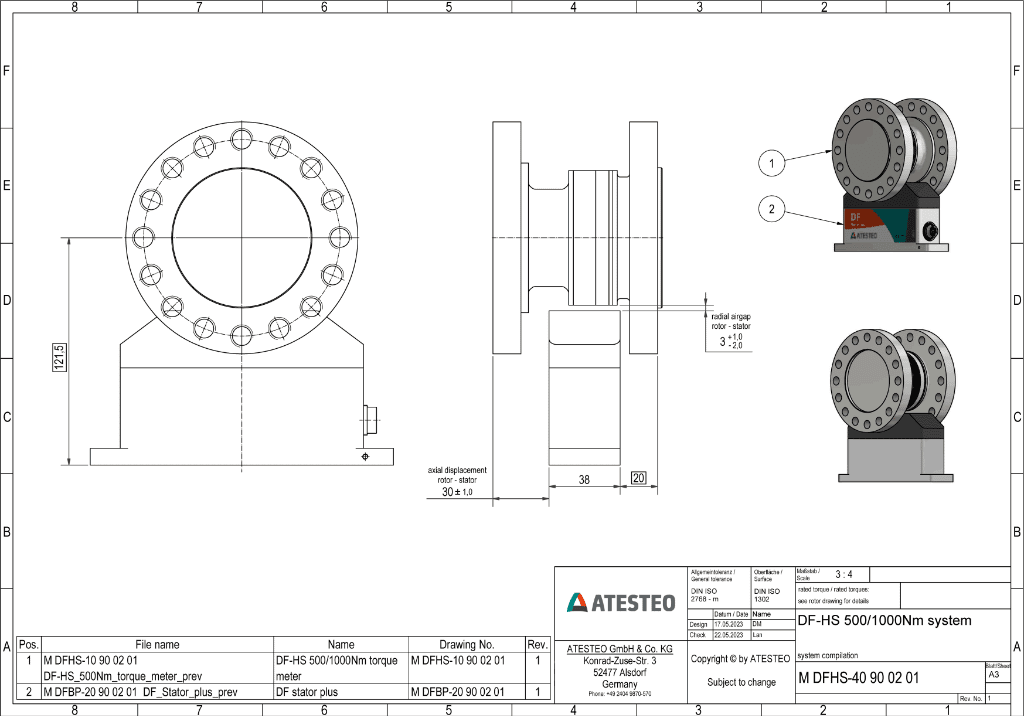

Technical and Mechanical Specifications
| Nominal Ranges | 500, 1,000, 2,000, 3,000, 4,000 Nm |
| Accuracy Class | 0.04% (Standard) |
| Maximum speed | 32,000 rpm (Std) / 40,000 rpm (High Speed) |
| Measurement Principle | Strain Gauges (DMS) / Inductive |
| Signal Outputs | Frequency, Analog (±10V), CAN Bus |
| Feeding | 24 V DC (Nominal) |
| Operating Temp. | -20°C … +85°C |
| External diameter | 124 mm |
| Total Length | 88 mm |
| Primitive Circle Diameter | 105.0 mm |
| Rotor Material | Titanium (TiAl6V4) |
| Rotor Weight | ~1.4 kg |
