Single-turn Absolute Encoder A/3115R
- Manufacturer: ELCIS Encoder
- Category: Encoder, Absolute Encoder, Single-turn Absolute Encoder, SENSORS
El ELCIS 3115R (A/3115R) es un encoder absoluto monovuelta óptico de 2 a 13 bits, en doble carcasa estanca al polvo y a la humedad, con brida B10.
It is optical, with an LED source and phototransistors, and delivers the position in Gray, Binary, Excess, BCD, or custom code, up to 8192 steps per revolution (13 bits). The output is parallel, with options for zero, latch, and parity LEDs; SSI serial (RS422) in Gray or Excess; or analog in current or voltage (0–10 V) with 10-bit resolution.

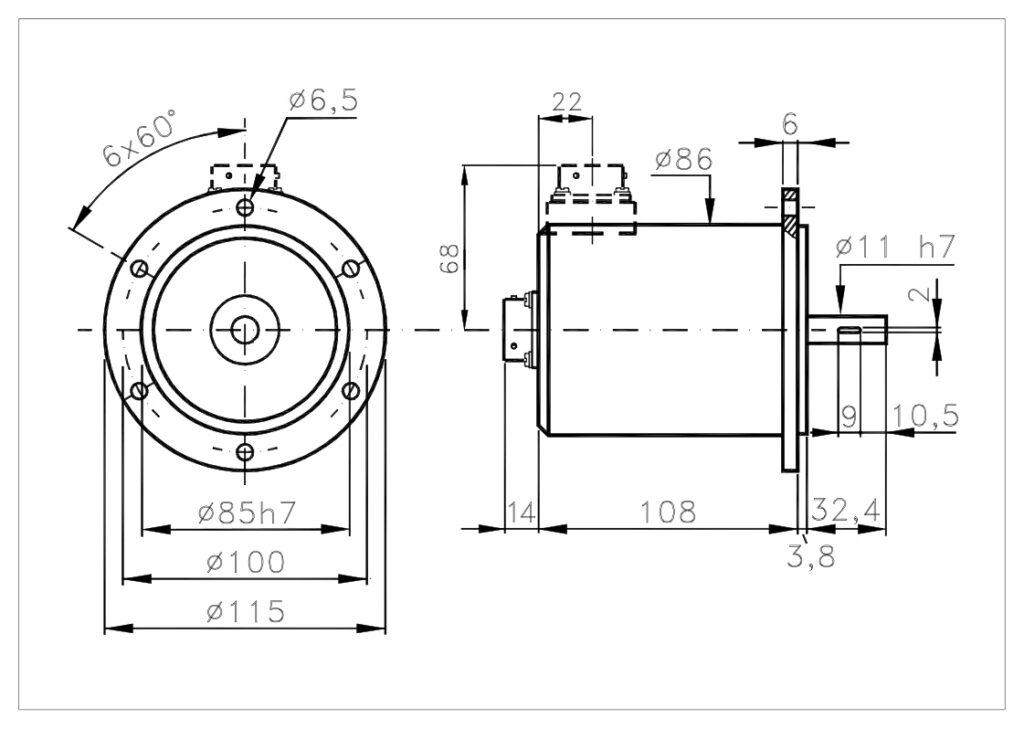

Tiene brida B10 Ø115 mm y eje de acero inoxidable Ø11 h7 para 18 kg de carga radial/axial, resiste impactos de 50 G y vibraciones de 12 G, y trabaja entre 0 y +70 °C con protección IP66 en el lado del eje (IP67 en versión sellada).
- Resolution of 2 to 13 bits: until 8192 steps per lap.
- Five power ranges: 5 V and 15 V ±5 %, 8–24 V, 18–28 V and 10–30 V.
- Analog output of 10 bits (1024 div./revolution), in current or in 0–10 V in 360°.
- Option of Parity for automatic checking of output stages.
Technical Frequently Asked Questions
What resolutions does the A/3115R offer for each code?
In Gray, Binary and BCD, 8, 16, 32, 64, 128, 256 or 512 steps per revolution; in Gray and Binary, also 1024, 2048, 4096 or 8192; in Excess, Binary and BCD, 10, 100, 500, 1000, 180, 360, 720 or 900; and in Excess and Binary, 1440, 1800, 2000, 2880, 3600 or 4000. Other resolutions available upon request.
What limitations does analog output have?
Converts the 10-bit position (1024 div/revolution) into an analog current or voltage (0–10 V) for 360° of rotation. Available only with 15 V or 18–28 V power supply and 1024 resolution.
Can the SSI interface be used with binary or BCD code?
No. SSI serial output is only available with Gray or Excess code.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Flange | B10 Ø115 mm |
| Axis | Ø11 h7 inox (opc. Ø8, Ø9,52, Ø12, Ø12,7 o bajo pedido) (personalizable bajo pedido) |
| max radial/axial load. | 18 kg |
| Starting torque | 90 gcm standard · 150 gcm sealed |
| bearing life | 1.5 × 10⁹ rev (1000 rpm, 1/4 max load) |
| Electric | |
| Interface | Parallel (standard) · SSI (RS422) · analog current or voltage |
| Feeding | 5 V ±5 % · 15 V ±5 % · 8–24 V · 18–28 V · 10–30 V |
| Max. consumption. | 200–400 mA according to number of bits (customizable upon request) |
| Max frequency. | 50 kHz (customizable upon request) |
| Exit codes | Gray, Binary, Excess, BCD, Custom |
| Max resolution. | 8192 steps/turn (13 bit) |
| Protection and environment | |
| IP protection | IP66 standard · IP67 sellado (lado del eje); lado de la salida IP64 a IP66 según conexión |
| max. continuous RPM | 6000 standard · 3000 sealed (intermittent: +30 %) |
| Impact/vibration resistance | 50 G (11 ms) 12 G (10–2000 Hz) |
| Operating/storage temperature | 0 … +70 °C / -30 … +85 °C (customizable upon request) |
| Reference | Configuration |
|---|---|
| A/3115R-G-256-824-B-CV-RA3115RG256824BCVR | Gray · 256 steps/revolution · 8–24 V · Push-pull + PTC (1–12 bit) · 1 m cable · IP65 · radial output |
| A/3115R-G-256-1828-B-CV-RA3115RG2561828BCVR | Gray · 256 steps/revolution · 18–28 V · Push-pull + PTC (1–12 bit) · 1 m cable · IP65 · radial output |
| A/3115R-G-256-1030-B-CV-RA3115RG2561030BCVR | Gray · 256 steps/revolution · 10–30 V · Push-pull + PTC (1–12 bit) · 1 m cable · IP65 · radial output |
| A/3115R-G-256-1828-KP-CV-RA3115RG2561828KPCVR | Gray · 256 steps/revolution · 18–28 V · NPN open emitter + PTC · 1 m cable · IP65 · radial output |
| A/3115R-G-256-5-B-CV-RA3115RG2565BCVR | Gray · 256 steps/turn · 5 V ±5 % · Push-pull + PTC (1–12 bit) · 1 m cable · IP65 · radial output |
| Other combinations of resolution, power supply, electronics and connection are available upon request: please contact us and we will confirm the exact reference. | |
