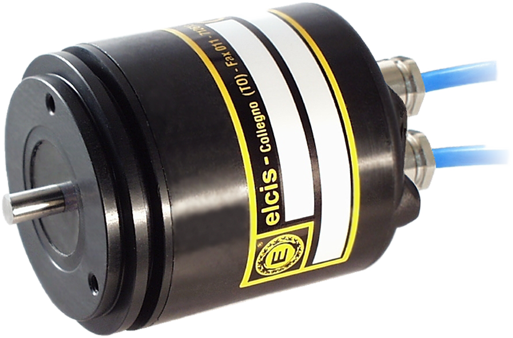

Dual Resolution Incremental Encoder I/58SY
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Dual Resolution Incremental Encoder, SENSORS
El ELCIS 58SY (I/58SY) es un encoder incremental de doble resolución de Ø58 mm, con doble detector fotoeléctrico y doble electrónica, independientes galvánicamente, para fijación tipo servo o con tornillos. Ofrece de 1 a 3600 impulsos por vuelta, frecuencia máxima de 100 kHz (300 kHz opcional) y electrónica NPN, PNP, push-pull, TTL 7404 y drivers 26LS31 y 88C30. Se alimenta entre 5 y 30 V según versión; con driver 88C30, máx. 15 Vdc. Base y tapa de aluminio anodizado, eje de acero inoxidable Ø6 h7 con 3 kg de carga radial/axial y peso de 550 g. Trabaja de 0 a +70 °C con protección IP64 en el eje (IP66 sellado, IP53 bajo par) y se conecta por cable o conector en extremo de cable (IP65), o por conector HH (IP67).
The I/58SY offers 1 to 3600 pulses per revolution, a maximum frequency of 100 kHz (300 kHz optional) and NPN, PNP, push-pull, TTL 7404 electronics and 26LS31 and 88C30 drivers. It is powered between 5 and 30 V depending on the version; with the 88C30 driver, max. 15 Vdc.
Base y tapa de aluminio anodizado y eje de acero inoxidable Ø6 h7 que admite 3 kg de carga radial/axial. Trabaja de 0 a +70 °C con protección IP64 en el lado del eje (IP66 sellado, IP53 bajo par) y se conecta por cable (IP65), conector HH (IP67) o conector en extremo de cable (IP65).
- Single-disc encoder with dual photoelectric detector and dual electronics, galvanically independent.
- Resolution of 1 to 3600 pulses per lap and frequency up to 100 kHz (300 kHz optional).
- Nutrition 5 to 30 V depending on version (with 88C30 driver, max. 15 Vdc) and NPN, PNP, push-pull electronics, TTL 7404 and 26LS31 and 88C30 drivers.
- Until 12000 rpm continuous with low torque bearings and 8000 rpm in standard version.
Technical Frequently Asked Questions
How are the two encoders indicated in the order code?
The power and electronics fields carry two values, that of encoder I and that of encoder II; for example, 5/82 for power and N/B for electronics.
What signal versions does the I/58SY offer?
Versions (1) to (9) combine, for encoder I and encoder II, unidirectional, bidirectional or bidirectional + zero signal; version (0) is special in both.
What axle protection options are available?
IP64 in standard version, IP66 with sealed bearing (option Z, 3000 rpm continuous) and IP53 with low torque bearings (option B, 12000 rpm continuous).
Properties
| Feature | Specification |
|---|---|
| Mechanics | |

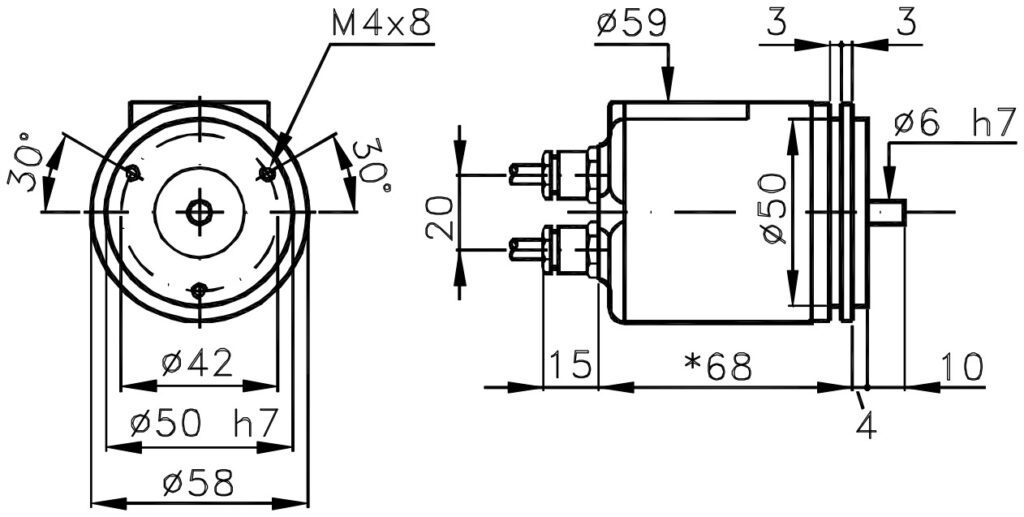

| Housing | Ø58 mm |
| Fixation | Servo type or with screws |
| Weight | 550 g |
| Axis | Ø6 h7 stainless steel (customizable upon request) |
| max radial/axial load. | 3 kg |
| Electric | |
| Exit-side protection | According to connection: IP65 (cable) to IP67 (HH connector) |
| Feeding | 5–30 V according to version |
| Max. consumption. | 120 mA Standard · 180 mA line driver (customizable upon request) |
| Impulses per lap | 1 to 3600 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP64 standard • IP66 sealed (Z) • IP53 low torque (B) |
| max. continuous RPM | 8000 standard · 3000 sealed · 12000 low torque (intermittent: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Reference | Configuration |
|---|---|
| I/58SY-100-82/82-9-P/P-CC-01I58SY10082829PPCC01 | 100 impulsos/vuelta · 8–24 V / 8–24 V · bidireccional + cero · PNP / PNP · CV + CV · IP65 · salida axial |
