F23iS Torque Transducer
- Category: Torque torque, SENSORS

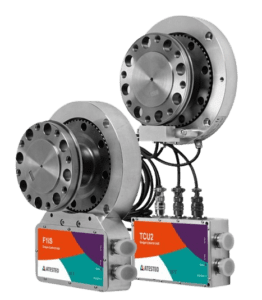

He F23iS Torque Transducer It is a high-performance torque sensor designed for measuring high loads (20 kNm to 30 kNm) with contactless inductive signal transmission. This technology eliminates wear and ensures maintenance-free operation, ideal for strength test benches and continuous operation in industrial environments.
Precise Measurement with Strain Gauges
The sensor core uses a system of strain gauges High-precision torque sensor, offering a 0.05% accuracy class with exceptional linearity. It features a high-resolution inductive speed detection system (120 pulses/rev) as standard, enabling simultaneous torque and speed measurement up to 12,500 rpm.
Its mechanical robustness supports limit loads of up to 225% of nominal torque, providing a critical safety margin for extreme torque applications.
Properties
Technical Specifications
| Nominal Pair (Mdn) | 20,000 / 25,000 / 30,000 Nm |
| Accuracy Class | ≤ ± 0.05 % |
| Measurement Principle | Rotary / Inductive (Contactless) |
| Maximum speed | Up to 12,500 rpm |
| Output Frequency | RS422 (60 kHz) |
| Analog Output | ± 10 V / 4…20 mA |
| Digital Output | CAN Bus / RS232 |
| Feeding | 23 … 25 V DC |
| Operating Temperature Range | -20 … +85 °C |
| Torsional Stiffness | 14,560 … 16,960 kNm/rad |
| Rotor Inertia | 0.14 … 0.15 kg/m² |
| Speed Measurement | Integrated (120 ppr) |
| Load Limit (Torque) | 225% (2.25x Mdn) |
| IP protection | IP54 |
