ATEX I/90AA Robust Incremental Encoder
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, ATEX Explosionproof Incremental Encoder, Robust Incremental Encoder, SENSORS

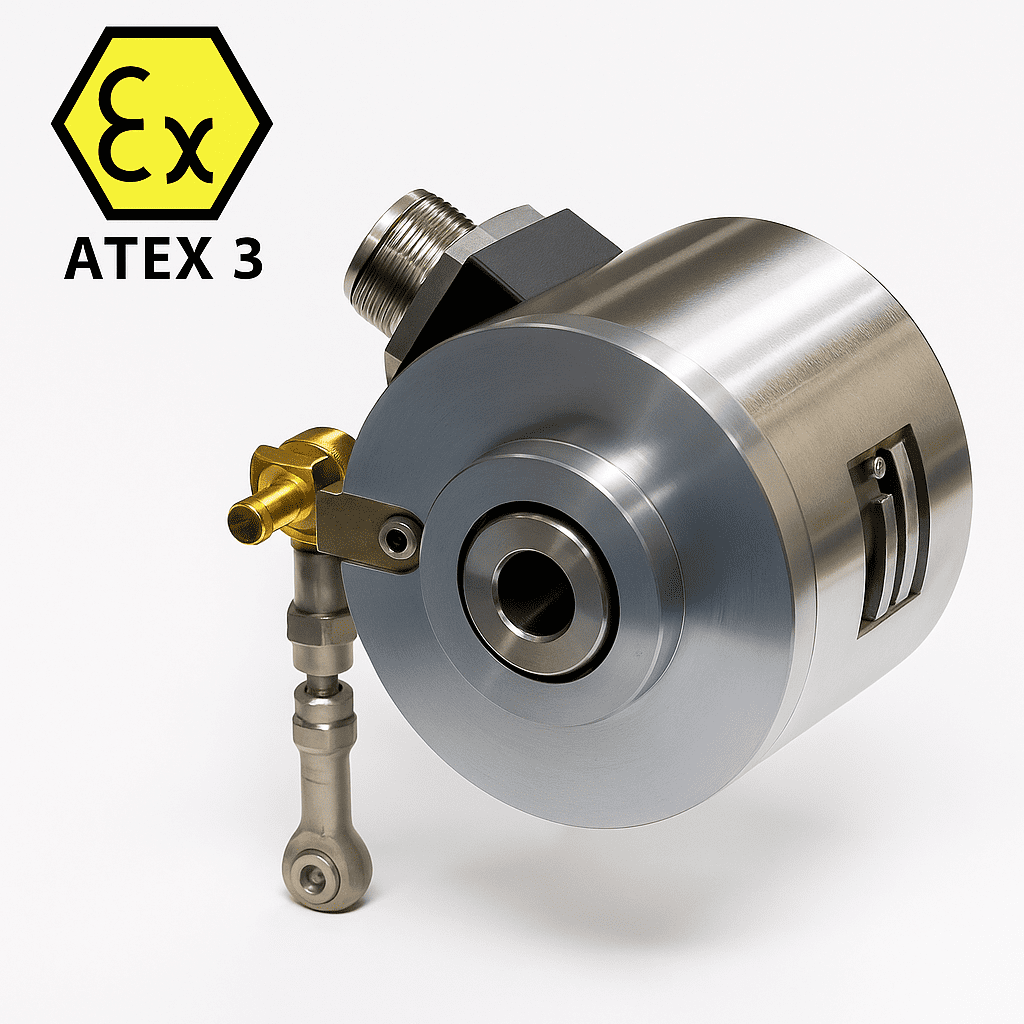

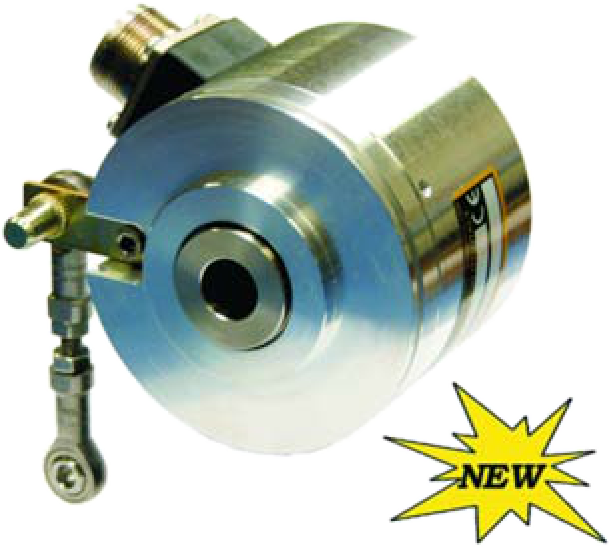

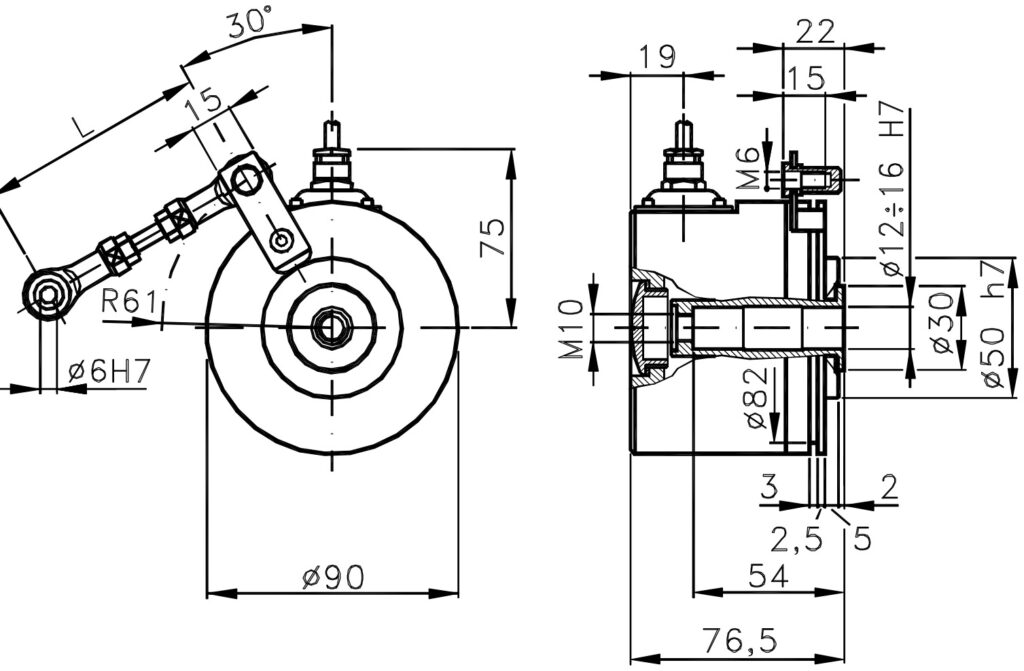

Incremental encoder suitable for heavy-duty environments, high robustness and high reliability, equipped with torque support or pivot.
In an aluminum housing Ø90 mm with hollow shaft H7 (Ø12, Ø12.7, Ø14, Ø15 or Ø16 mm, others on request), the I/90AA offers from 100 to 2048 pulses per revolution, maximum frequency of 120 kHz and 11 output electronics: NPN, PNP, push-pull, 26LS31 and 7272 drivers and TTL.
Hollow stainless steel shaft supporting 20 kg radial/axial load, with maximum coupling compensation of ±0.2 mm axially and ±0.05 mm radially. Operates from -20 to +85 °C with IP65 protection on the shaft side (IP66 sealed) and high MTTFd according to EN ISO 13849-1, and connects via cable, connector, cable end connector, or terminal box, always with radial output. Available in guemisa.es.
- Resolution of 100 to 2048 impulses per lap and frequency up to 120 kHz.
- Nutrition 5 to 30 V according to the version.
- 11 electronic Output: NPN, PNP, push-pull, 26LS31 and 7272 drivers and TTL.
- He works as -20 to +85 °C with up to 6000 rpm continuous.
Technical Frequently Asked Questions
What signal versions does the I/90AA offer?
Unidirectional (M), bidirectional (B), bidirectional + zero (BZ) and unidirectional + zero (MZ).
What supply voltages does it support?
5 V ±5 %, 8–24 V, 18–28 V, 8–15 V, 12 V ±5 %, 24 V ±5 %, 12–30/12 V, 8–24/5 V, 10–30 V, 18–28/5 V, 15–30/15 V and 5–30 V.
What hollow shaft diameters does it support?
Hollow shaft H7 of Ø12, Ø12.7, Ø14, Ø15 or Ø16 mm; other diameters on request.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Aluminum, Ø90 mm |
| Weight | 850 g |
| Axis | Hollow shaft H7: Ø12, Ø12.7, Ø14, Ø15 or Ø16 mm (others available upon request), stainless steel |
| max radial/axial load. | 20 kg |
| Coupling compensation | Max.: axial ±0.2 mm · radial ±0.05 mm |
| Electric | |
| Exit-side protection | According to connection: IP00 to IP67 (see page 2) |
| Feeding | 5–30 V according to version (see page 2) |
| Max. consumption. | 80 mA standard · 120 mA line driver |
| Impulses per lap | 100 to 2048 |
| Max frequency. | 120 kHz |
| Protection and environment | |
| axle-side protection | IP65 standard · IP66 sealed (Z) (without low torque option) |
| max. continuous RPM | 6000 standard · 3000 sealed (intermittent: +30 %; no low torque option) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | -20 … +85 °C |
