I/27Q Miniature Incremental Encoder
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, Miniature Incremental Encoder, SENSORS

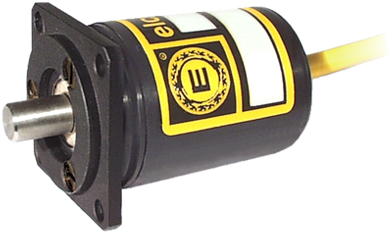

El ELCIS 27Q (I/27Q) es un encoder incremental miniatura con brida cuadrada de fijación de 30 mm y carcasa cilíndrica de Ø27 mm en aluminio anodizado.
Built in a 27 mm diameter anodized aluminum cylindrical housing with a 25.4 mm diameter front centering point and a 6.35 mm diameter solid stainless steel shaft. It delivers 50 to 800 pulses per revolution with a maximum frequency response of 60 kHz. Compatible with NPN, PNP, push-pull, 26LS31, 88C30, and 7404 TTL electronics at 5 V ±5 %.
Permite montaje con salida axial o radial mediante cable o conectores en extremo de cable, alcanzando hasta 6000 rpm continuas (12000 rpm con rodamientos de bajo par) y protección de hasta IP65 en el lado del eje.
- Square flange: Ø27 mm housing with 30 mm square flange.
- Solid stainless steel shaft: Ø6.35 h7 with front centering Ø25.4 h7.
- Available electronics: NPN, PNP, push-pull, 26LS31 and 88C30 drivers, and TTL 7404.
- Mechanical options: standard, IP65 sealed and low torque versions.
Technical Frequently Asked Questions
How does the I/27Q encoder differ from the 27 model?
The I/27Q incorporates a 30mm square front flange instead of the servo flange of the 27 model.

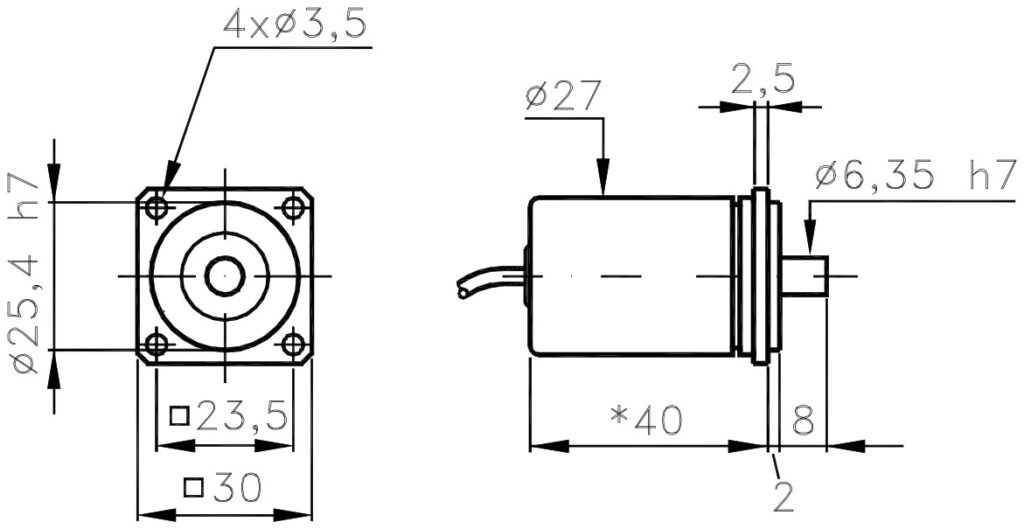

What are the dimensions of your mounting flange?
It has a 30 mm side square flange with front centering of Ø25.4 h7 and fixing holes.
What are the electronic output options?
Supports NPN, PNP, push-pull, 26LS31, 88C30 and TTL 7404 driver outputs.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Metal Ø27 mm |
| Weight | 90 g |
| Axis | Ø6.35 h7 stainless steel (customizable upon request) |
| max radial/axial load. | 0,4 kg |
| Electric | |
| Exit-side protection | Depending on the connection: IP00 to IP65 (see technical data sheet) |
| Feeding | 5 V ±5 % (see technical sheet) |
| Max. consumption. | 120 mA Standard · 180 mA line driver (customizable upon request) |
| Impulses per lap | 50 to 800 |
| Max frequency. | 60 kHz |
| Protection and environment | |
| axle-side protection | IP64 standard • IP65 sealed (Z) • IP53 low torque (B) |
| max. continuous RPM | 6000 standard · 4500 sealed · 12000 low torque (intermittent: +30 %) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C (customizable upon request) |
| Storage Temp. | -30 … +85 °C |
| Reference | Configuration |
|---|---|
| I/27Q-500-5-BZ-N-VL-01I27Q5005BZNVL01 | 500 impulsos/vuelta · 5 V ±5 % · bidireccional + cero · Driver 26LS31 · Cable con conector 10 c. normal · salida axial |
