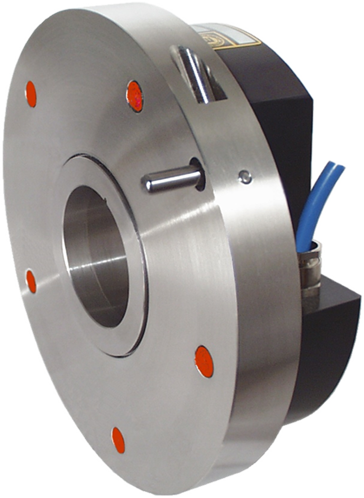

High Resolution Incremental Encoder I/170C
- Manufacturer: ELCIS Encoder
- Category: Encoder, Incremental Encoder, High Resolution Incremental Encoder, SENSORS
The I/170C High Resolution Incremental Encoder addresses the critical need for accurate feedback in dividing tables and servo-mounted applications where standard sensors lack mechanical robustness. It ensures accurate readings under demanding mechanical loads without compromising system integrity.
Technically, it incorporates a special tangential coupling and a stainless steel shaft that supports up to 3 kg of radial load. The starting torque exceeds 1500 gcm, ensuring an immediate response in high-inertia control systems without loss of synchronization.
Built with an anodized aluminum cover and IP65 protection, it operates stably between 0 and 70 °C. Its bearing life reaches 1.5 x 10^9 revolutions, guaranteeing long-term reliability in harsh industrial environments.
- Stainless steel base and through shaft for greater durability in industrial environments.
- Adjustable resolution between 18000 and 90000 pulses per revolution for high precision.
- Impact resistance of 50 G and vibration resistance up to 12 G without loss of functionality.
- Lifespan of ball bearings greater than 1.5 x 10^9 revolutions.
Technical Frequently Asked Questions
How does the I/170C differ from the I/E6 model?
The I/170C belongs to the High Resolution series with a resolution of up to 90k PPR, while the I/E6 is a standard model. Furthermore, the I/170C features a special tangential coupling and a stainless steel base for added robustness.
What alignment precautions are required for the I/170C shaft?
The manufacturer specifies a maximum axial joint offset of ±0.2 mm and a radial offset of ±0.05 mm. It is crucial to ensure that the angular tolerance does not exceed 1° to avoid reading errors in the control system.
What connectors and output options are available for the I/170C?
NPN, PNP, Open Collector and Push-Pull outputs are offered with 26LS31 or 88C30 line drivers. Connections include terminals, VM connectors, TL or terminal boxes depending on the selected IP configuration.
Properties

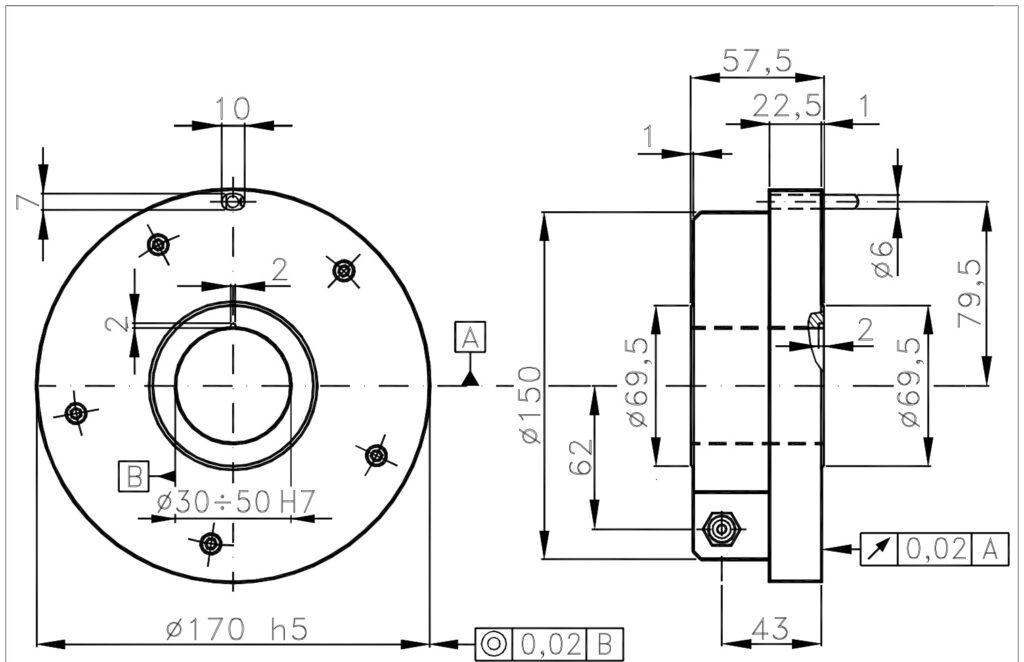

| Feature | Specification |
|---|---|
| Sensor Type | Incremental (E00) |
| Main Application | Dividing tables, Servo-Mount |
| Base Material | Stainless Steel |
| Cover Material | Anodized Aluminum |
| Total Weight | 3000 g |
| Shaft Diameter | Ø 30÷50 mm (Stainless Steel) |
| Maximum Load | 3 kg (Radial/Axial) |
| Maximum Continuous RPM | 500 RPM |
| Starting Torque | > 1500 gcm |
| Bearing Life | 1.5 x 10^9 Revolutions |
| Impact Resistance | 50 G x 11ms |
| Vibration Resistance | 12 G (10 ÷ 2000 Hz) |
| Operating Temperature | 0 ÷ 70 °C |
| Resolution (Impulses/Rev.) | 18000 ÷ 90000 PPR |
| Maximum Frequency | 100 kHz (Option 500) |
| IP protection | IP65 Standard / IP66 Sealed |
