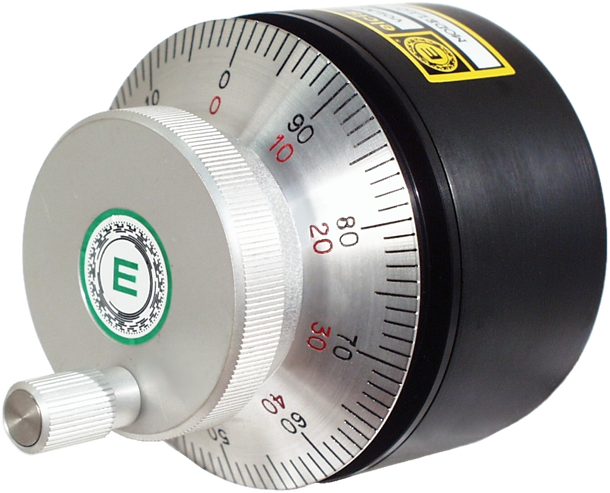

VES110 Electronic Steering Wheel
- Manufacturer: ELCIS Encoder
- Category: Encoder, SENSORS, Electronic Steering Wheels
Electronic panel-mounted steering wheel with servo-type mounting flange. Offers various connection options, twelve output electronics, and eleven power supplies from 5 to 30 V.
The VES110 features an anodized aluminum housing, cover, and control unit, with a stainless steel shaft. It delivers 100 pulses per revolution as standard, with latching at each step, or from 1 to 2500 pulses per revolution with the optional F clutch.
It features twelve electronic output stages (NPN, PNP, push-pull, and 26LS31 and 88C30 drivers) and eleven power supply options from 5 to 30 V. Protection is IP65 on the shaft side; on the output side, it depends on the connection (IP00 to IP67). Rotating life is at least 1,000,000 hours at 200 rpm. Available options: clutch (F), black control (N), custom center logo (E), phase reversal A, B, and zero (K), tropicalization (G), impregnated electronics (M), and custom options (X). Available in guemisa.es.
- Panel mounting with servo type flange and axis of stainless steel.
- 100 pulses per series lap with interlocking at each step; of 1 to 2500 clutch impulses (option F).
- Casing, cover and remote control of anodized aluminum.
- 11 feeding variants 5 to 30 V and electronics with 26LS31 and 88C30 drivers.
- Life in rotation ≥ 1,000,000 hours a 200 rpm and protection IP65 on the axle side.
Technical Frequently Asked Questions
What type of mounting does the VES110 have?
It is panel mounted using a servo-type flange ("servo mount"); its shaft is made of stainless steel and the protection is IP65 on the shaft side.
What electronic outputs and voltages does it support?
It supports NPN, NPN open collector, PNP, PNP open collector, push-pull, 2× push-pull stages and 26LS31 and 88C30 drivers. Available power supplies are 5 V ±5 %, 8–24 V, 18–28 V, 8–15 V, 12 V ±5 %, 24 V ±5 %, 12–30/12 V, 8–24/5 V, 10–30 V, 18–28/5 V and 15–30/15 V (max. 15 Vdc with 88C30 driver).
What IP connectivity and protection options does it include?
IP65 protection on the shaft side. On the output side, depending on the connection: 1 m CV cable (IP65), Phoenix MS terminal box (IP00, axial output only), connectors (IP63 to IP67) or cable end connectors (IP65 at the output). Axial or radial output.

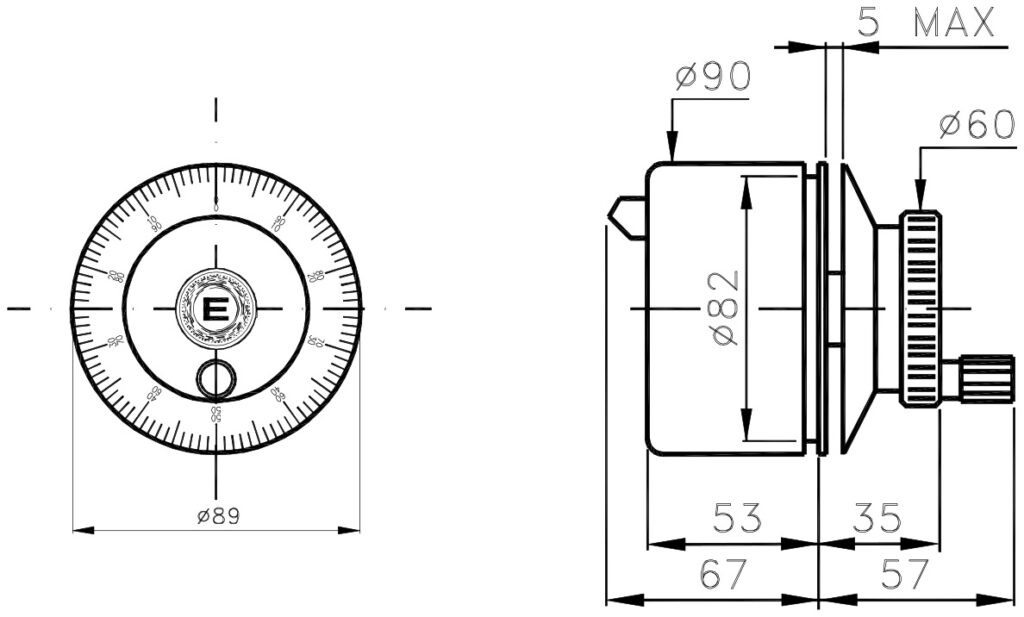

Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Anodized aluminum |
| Cover | Anodized aluminum |
| Axis | Stainless steel |
| Weight | 850 g |
| Starting torque | 0,15 Nm |
| Electric | |
| Exit-side protection | According to connection: IP00 to IP67 (see page 2) |
| Max. consumption. | 80 mA standard · 150 mA line driver |
| Impulses per lap | 100 standard · 1 to 2500 with clutch (option F) (with interlock at each step) |
| Protection and environment | |
| axle-side protection | IP65 |
| Rotational life at 200 rpm | ≥ 1,000,000 h |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C |
| Storage Temp. | -30 … +85 °C |
| Other features | |
| Remote control and graduated disc | Anodized aluminum |
