Capacitive

Electromagnetic Acquisition (iS Series) | Flexible Range 50 – 100 N·m | Titanium Forging | 101.5 mm PCD Flange | Inertia 0.00210 kg·m²

Carcasa Ø38 mm, eje Ø6,35 h7 | 8 a 2048 imp/giro | Line driver 26LS31/ET7272, NPN | Alim. 5, 8–24, 18–28, 10–30, 5–30 V | IP64 eje (IP66 sellado) | 12000 rpm con bajo par (opción B) | Impactos 100 G (6 ms)

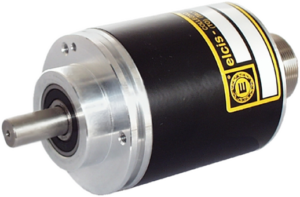

Brida cuadrada 63 mm, eje Ø9,52 h7 | Hasta 2²⁴ pasos en 4096 vueltas | Gray o binario | Paralela NPN 70 mA o SSI RS422 | Alimentación 5 ±5 %, 8–24 o 18–28 V | IP64 eje (IP65 sellado) | Carga radial/axial máx. 8 kg

Angular and Rotational Sensor | 1 to 64 Rotations | Metal Housing Ø 22 mm | IP68 | Analog and SSI Output | Floating Shaft or Magnet

Range 2mS to 20S, For use in line with SZ724 adapter and C565.2 or C7685 controller.

Schreiber SM14 Multichannel Module

Hollow shaft H7 up to Ø15 | Ø59, tangential anti-rotation pin | Up to 8192 steps (13 bits) | Parallel, SSI or analog (mA or V) | 5, 15, 8–24, 18–28 or 10–30 V | IP64 shaft (IP66 sealed)

Light Telemetry (Rotor Telemetry) | Base Range 5 N·m | Rotational Limit 20,000 RPM | Dual PCD Flange 63.0/40.0 mm | Inertia 0.0004 kg·m²

Absoluto, hilo Ø 0,51 mm | Carrera hasta 6 m | Resolución 0,1 o 1 mm | PROFIBUS-DP Clase 2 | 10–30 V CC | IP64 (prensaestopas IP65) | Linealidad ±0,05 % f.s.

Eje hueco Ø16 H7 | Brida B10 Ø115 mm | Carcasa Ø96 mm | 1 a 3600 imp/vuelta | NPN, PNP, push-pull, driver, TTL | Alimentación 5–30 V | IP64 eje (IP66 con opción Z)
