F0iS torque transducer
- Category: Torque torque, SENSORS

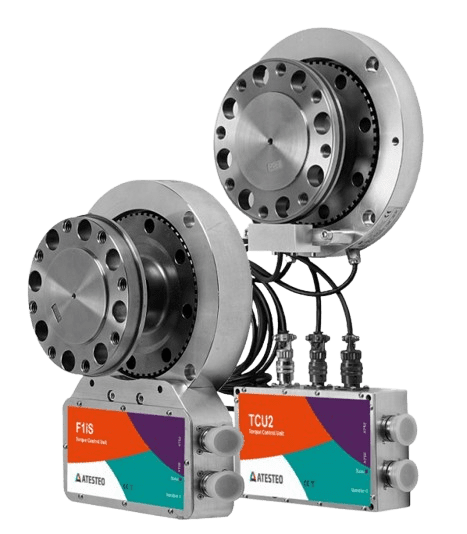

He F0iS of CENSORED It represents excellence in precision measurement for test benches and demanding industrial applications. This transducer offers exceptional reliability thanks to its robust construction and advanced signal conditioning electronics.
Precision and Durability
With a level of precision of 0.05%, The F0iS is ideal for validation and development tasks where every data point counts. Its compact design includes a contactless telemetry system for data and power transmission, eliminating wear and tear and ensuring a long, maintenance-free lifespan.
The system offers superior versatility with multiple simultaneous outputs (Frequency, Analog ±10V, Current, and CAN Bus), allowing for easy integration into any modern data acquisition environment. It is available with integrated inductive or optical speed detection options.
Properties
Technical Specifications
| Nominal Pair (Mdn) | 50 … 100,000 Nm |
| Accuracy Class | ≤ ± 0.05 % |
| Maximum speed | Up to 20,000 rpm |
| Allowable Overload | 500 % from Mdn |
| Torsional Stiffness | 23 … 356 kNm/rad |
| Feeding | 24 V DC |
| Output Frequency | RS422 (60 kHz) |
| Analog Output | ± 10 V / 4…20 mA |
| Country Bus | CAN Bus |
| IP protection | IP54 |
