Robust Incremental Encoder I/115
- Manufacturer: ELCIS Encoder
- Category: Encoder, Robust Incremental Encoder, SENSORS

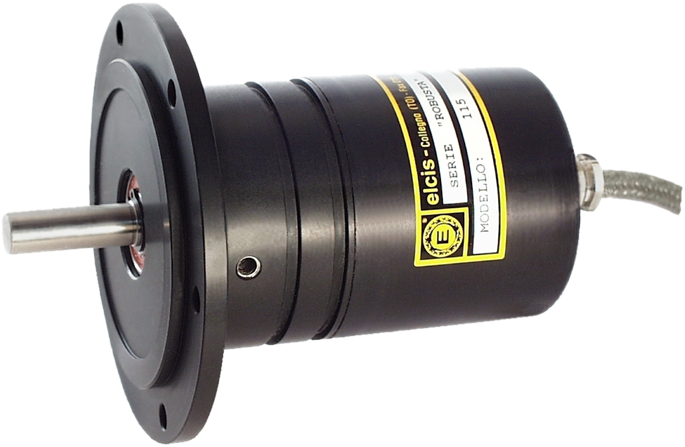

All-metal, extremely robust encoder with standard B10 flange, for use in harsh environmental conditions. High resistance to mechanical stress on the shaft.
The I/115 offers 1 to 25000 pulses per revolution, a maximum frequency of 100 kHz (300 kHz optional) and NPN, PNP, push-pull electronics, 26LS31 and 88C30 drivers, TTL, discriminator and 1 Vpp sinusoidal output.

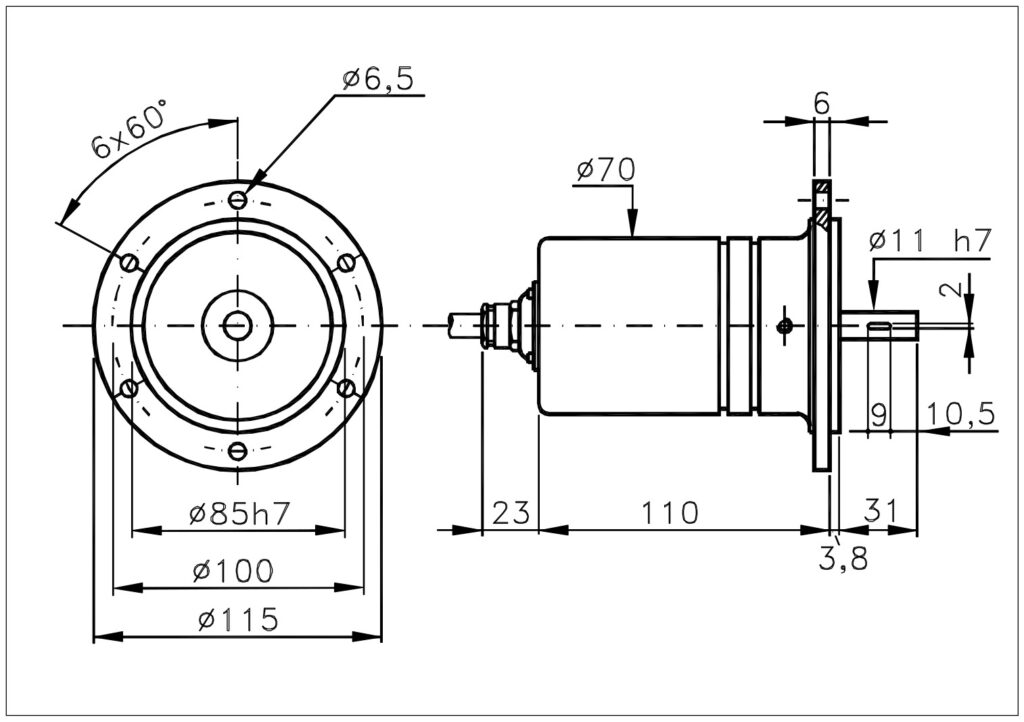

Ø70 mm metal housing with standard B10 flange, anodized aluminum base and cover, and Ø11 h7 stainless steel shaft supporting 25 kg of radial/axial load. Operates from 0 to +70 °C with IP66 protection on the shaft side (IP67 sealed) and connects via cable, connector, or cable end connector. Available in guemisa.es.
- Resolution of 1 to 25000 pulses per lap and frequency up to 100 kHz (300 kHz optional).
- Flange B10 standard and stainless steel shaft Ø11 h7 with maximum radial/axial load of 25 kg.
- Until 6000 rpm continuous and bearing life 1,5 × 109 revolutions.
- Nutrition 5 to 30 V depending on the version and electronics: NPN, PNP, push-pull, 26LS31 and 88C30 drivers, TTL, discriminator and sinusoidal 1 Vpp.
Technical Frequently Asked Questions
What signal versions does the I/115 offer?
Unidirectional (M), bidirectional (B), bidirectional + zero (BZ) and unidirectional + zero (MZ).
What supply voltages does it support?
5 V ±5 %, 8–24 V, 18–28 V, 8–15 V, 12 V ±5 %, 24 V ±5 %, 12–30/12 V, 8–24/5 V, 10–30 V, 18–28/5 V and 15–30/15 V. With 88C30 driver, maximum 15 Vdc.
What axle protection options are available?
IP66 in standard version and IP67 with sealed bearing (option Z, 3000 rpm continuous); there is no low torque bearing option.
Properties
| Feature | Specification |
|---|---|
| Mechanics | |
| Housing | Metal Ø70 mm |
| Flange | B10 standard (Ø115) |
| Weight | 850 g |
| Axis | Ø11 h7 stainless steel |
| max radial/axial load. | 25 kg |
| Electric | |
| Exit-side protection | According to connection: IP63 to IP67 (see page 2) |
| Feeding | 5–30 V according to version (see page 2) |
| Max. consumption. | 120 mA standard · 180 mA line driver |
| Impulses per lap | 1 to 25000 |
| Max frequency. | 100 kHz (300 kHz optional) |
| Protection and environment | |
| axle-side protection | IP66 standard · IP67 sealed (Z) (without low torque option) |
| max. continuous RPM | 6000 standard · 3000 sealed (intermittent: +30 %; no low torque option) |
| Impact resistance | 50 G × 11 ms |
| Vibration resistance | 12 G (10–2000 Hz) |
| Operating temperature | 0 … +70 °C |
